- Page 1 HDS7106 Users’ Manual SWITCHER Model: HDS7106 VER 3.0 Website: www.devicewell.com Email: support@devicewell.cn...
-
Page 2: Precautions
HDS7106 Precautions About this device: Copyright: ●This device belongs to the When using this unit for video and/or audio switching, publishing over the Internet, or the high-frequency video processing like, in some cases it may be necessary to equipment. Therefore, please strictly... -
Page 3: Table Of Contents
HDS7106 Contents Precautions ..........................2 Overview ........................... 4 Introduction ......................4 Functional characteristics ....................5 Preparation Before Installation ..................6 Equipment Unpacking ....................... 7 Size: 255*160*60mm ..................7 Interface Specification ....................... 8 Interface Introduction ..................8 TALLY Interface ....................9 Parameters ...................... -
Page 4: Overview
The HDS7106 supports 4 channels of broadcast SDI and 2 channels of HDMI for a total of six video signals. The external preview signal can be output synchronously. The HDS7106 supports SDI embedded audio + external analog audio. -
Page 5: Functional Characteristics
HDS7106 2. Functional characteristics The DeviceWell HDS7106 6-channel HD video switcher is a multi-function switcher that requires no special knowledge and can be used for video switching and audio mixing with simple operation. This unit can be used in radio and television, live broadcast and various activities. -
Page 6: Preparation Before Installation
HDS7106 3. Preparation Before Installation Caution ●During transportation, handling, and installation of switchboard equipment, avoid collisions between the switchgear equipment and doors, walls, shelves, etc. ●When the equipment is unpacked and transported, it is strictly forbidden to put it down and drag it gently to avoid damage to the switchboard equipment. -
Page 7: Equipment Unpacking
HDS7106 4. Equipment Unpacking When unpacking inspection, if the sealing label or packaging is found to be damaged, stop unpacking and report the situation to the equipment dealer. If the quantity of the goods is correct and the packaging is intact, the goods can be inspected. -
Page 8: Interface Specification

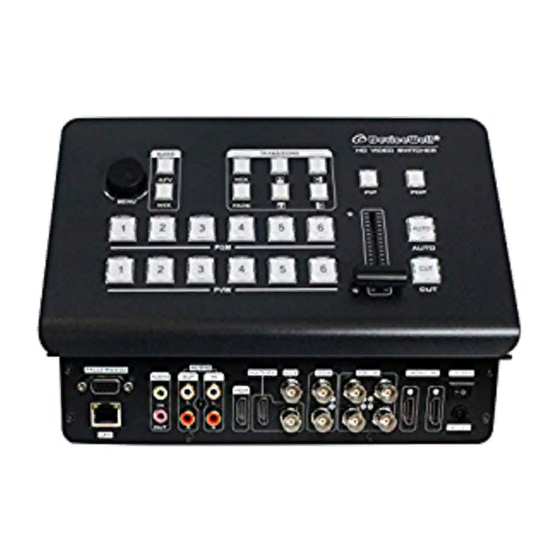

HDS7106 5. Interface Specification Interface Introduction The DeviceWell HDS7106 interface is shown below. Definition Description TALLY/RS232( reserved) TALLY / serial port control (reserved) Network upgrade AUDIO IN/OUT 3.5mm audio input and output AUDIO OUT RCA audio output AUDIO IN RCA audio input... -
Page 9: Tally Interface
HDS7106 TALLY Interface Function Function PGM-IN1 PVW-IN1 PGM-IN2 PVW-IN2 PGM-IN3 PVW-IN3 PGM-IN4 PVW-IN4 PGM-IN5 PVW-IN5 PGM-IN6 PVW-IN6 Note：PIN1 PIN2 not used. TALLY : Online schematic Note：Tally LED: for external display device Tally output : Active low (Tally LED is lit) High level is invalid (Tally out is off) Website: www.devicewell.com... -
Page 10: Parameters
HDS7106 Parameters Product Name Mini 4+2 Video Switcher Product Model HDS7106 Input signal SDI/HDMI Video Signal Bit rate 270Mbps~3Gbps Connector Standard Reflection loss >15dB 5MHz~3GHz Signal amplitude 800mV± 10%(SDI/ HDMI) Video Signal 100Ω (HDMI) 75Ω(SDI) Impedance Input Equilibrium Adaptive 480i/576i, 480p/576p, 720p, 1080i, 1080p... -
Page 11: Control Panel And Interface
HDS7106 6. Control Panel and Interface Before using the HD Mini Switcher HDS7106, please take a few minutes to read this section. This chapter will introduce you the panel and interface of the HD switcher to facilitate your subsequent use and operation. -
Page 12: Area Description
HDS7106 6.1.1 Area Description Name Description Knob Control Use the knob to set menu information Audio Control Mainly for Audio Follow and mix settings. Transition Effect Control Select transition effects Integrated control area PIP and POP effects PVW& PGM Select... - Page 13 HDS7106 1. Press the AFV button on the operation panel. The button will light blue at this time. The corresponding multi-screen menu will also display the current audio status. In the menu, Audio Mode displays Follow, indicating that the audio is in follow mode; as shown on the right.
- Page 14 HDS7106 First rotate clockwise once, the background color will appear in the CH1_VOL character in the menu, press the knob to enter. The next option of the CH1_VOL menu, 44 in the figure indicates the volume value, clockwise and counterclockwise rotation to adjust the volume size 0-100, determine the volume value and press the knob to exit.
- Page 15 HDS7106 RCA Audio Interface 3.5mm Audio Interface 3. The audio channel adjustment of the mix assignment: through the control panel knob MENU to adjust, corresponding to the multi-screen menu to monitor the adjusted state The knob rotates clockwise once, and the...
- Page 16 HDS7106 The CH2 audio channel is selected in the same way as the CH1. The knob rotates clockwise once, and the background color appears in the CH2 character in the menu. It indicates that the second channel audio is currently adjusted.
-
Page 17: Transition Effect Control Area
HDS7106 6.1.2.2 Transition Effect Control Area There are 3 transition modes: MIX transitions, FADE, and Wipes, where the Wipes include: up, down, left, and right. MIX Transition The MIX effect is a transition effect. After setting the transition, the original live screen will be lightened at the main output and then know that the transition to the new live screen is complete. - Page 18 HDS7106 Four special effects wipe transitions There are 4 types of wipe transition modes: up/down/left/right. Up transition: Click on the effect control area (press the blue light afterwards), and then click or use the T-bar or AUTO to switch. The effect is as follows.
-
Page 19: Integrated Control Area
HDS7106 Right transition: Click on the effect control area (press the blue light), then click or use the fader or AUTO to switch. The effect is as follows. Right transition effect, the A picture is unchanged, and the B picture is gradually drawn in the right direction until the picture completely becomes B. - Page 20 HDS7106 POP size and position You can use the knob to set the parameters of the PIP picture-in-picture, as follows (the horizontal/vertical position below is the smallest display image) Horizontal position setting: The value from the top left to the top right is 0-1440, and the value of one rotation per knob is increased/decreased by 10.
- Page 21 HDS7106 At this time, the information of the multi-screen monitor output will be switched to the POP picture-out-picture setting. After pressing the knob, it can be set according to the requirements, as shown below. At this time, the information on the LCD screen will be switched to the POP picture drawing setting.
-
Page 22: Pgm & Pvw Selection
HDS7106 6.1.2.4 PGM & PVW Selection Multiview output window introduction PVW and PGM are the preview and live output respectively, as shown below. There are 6 windows below which correspond to input source monitoring, corresponding to buttons 1 – 6 on the control panel of the switcher. - Page 23 HDS7106 PGM & PVW Output Signal After the device is connected to the video source, press 1 (PGM) and 2 (PVW) in the button panel. The live and preview signals in the output multi-screen monitor are 1 (PGM) and 2 (PVW) respectively. The signal sources are SDI IN1 and SDI IN2, respectively.
-
Page 24: System Menu Settings
HDS7106 The effect chart is as follows: 7. System menu settings Menu display In the menu bar, you can perform IP settings on the device, restore the system to factory settings, and change the language. In the default state of power on, press the knob to enter the main menu, as shown below. - Page 25 HDS7106 Press the knob In the system setting menu, you can choose between language selections: Chinese or English. In the time display: select analog or digital display always; if you encounter an unknown error during use, you can choose to restore the factory. Set to reset.
-
Page 26: Failure And Maintenance
HDS7106 8. Failure and Maintenance Common Faults and Solutions (1) The output image is disturbed and may be disturbed by other devices. (2) When plugging in the audio and video interface, if there is obvious static electricity, the device power ground wire may not be good grounding, please ground in the correct way;...
