Summary of Contents for DeviceWell HDS7105S

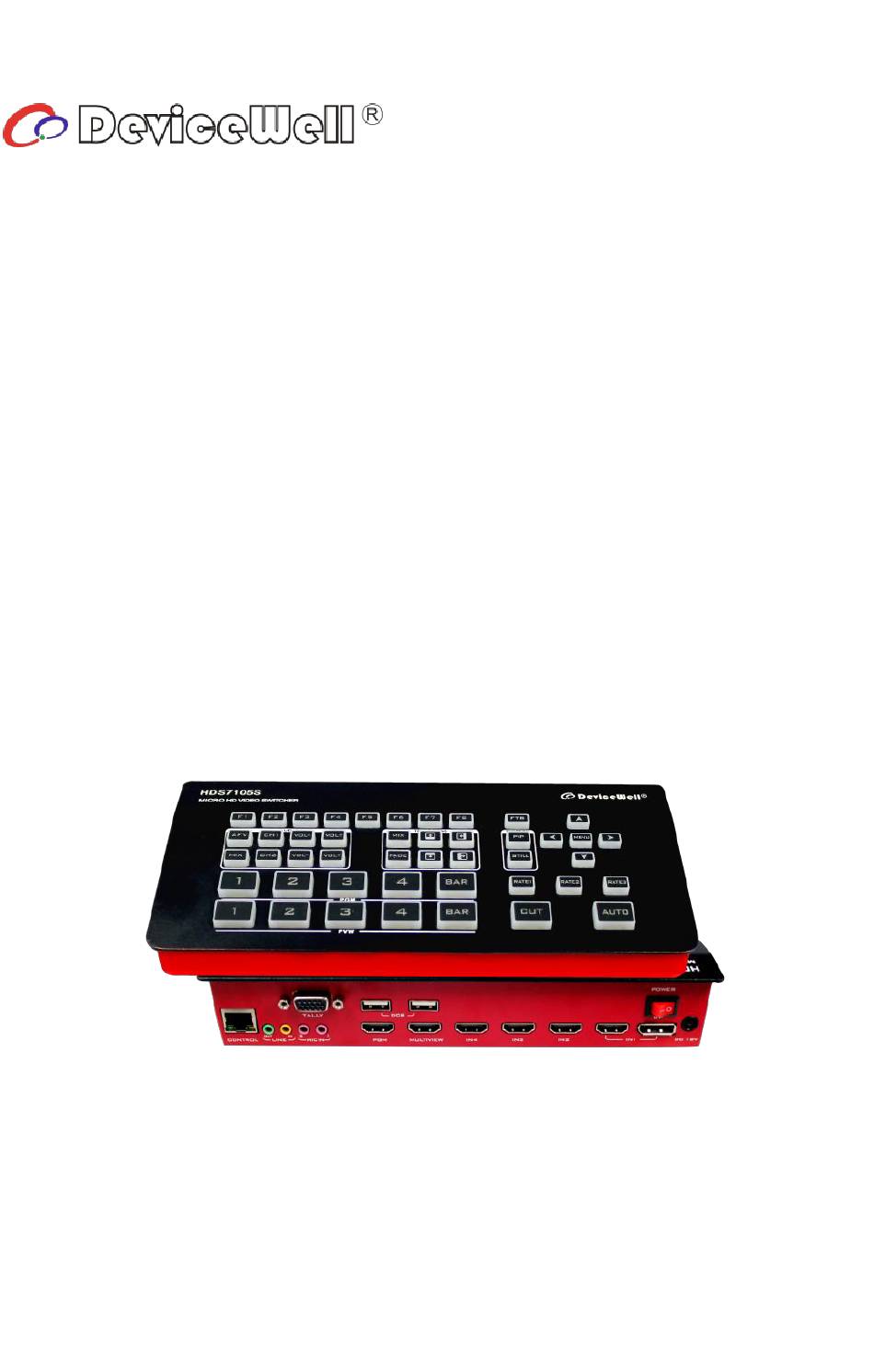

- Page 1 Users’ Manual 5-CH SWITCHER HDS7105S VER 2.0...
- Page 2 SWITCHER Preparation Before Installation Caution ●During transportation, handling, and installation of switchboard equipment, avoid collisions between the switchgear equipment and doors, walls, shelves, etc. ●When the equipment is unpacked and transported, it is strictly forbidden to put it down and drag it gently to avoid damage to the switchboard equipment.
-
Page 3: Table Of Contents
SWITCHER Contents 1. Overview……………………………………………………………………………..04 Introduction……………….…………………………………………….04 2. Functional characteristics………….………………………………………..05 Size……………………………………..…………………….……….….….06 3. Interface Specification..……………….……………………………………..07 Interface Introduction……………..…….…….………………...….07 TALLY Interface……………………..………….….………………..….08 Parameter……………………….……….……….…….……………..….09 4. Control Panel and Interface………..…………………………………….…..10 Control Panel.………………………………….…………..…………..10 4.1.1 Area Description……………..……………….………………..10 4.1.2 Key Description……………..………….………………….…...11 4.1.2.1 Function Area……………….….……………..….…...11 4.1.2.2 Audio Control Area……………….……….…….…...11 4.1.2.3 Transition Effect Control Area………………..13 4.1.2.4 Integrated Control Area.……………….…….…..15 4.1.2.5... -
Page 4: Overview

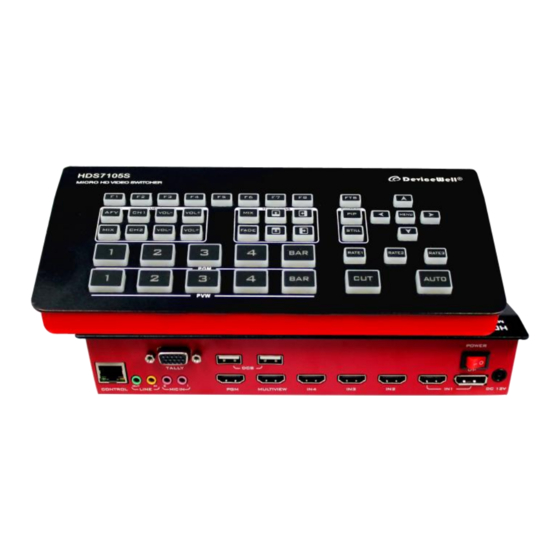

SWITCHER 1. Overview 1.1 Introduction High-definition video switcher adopts a portable integrated design, metal casing, small size and light weight. Standard size: 236mm * 105mm * 47mm, which can be used for small-scale out-of-field video effects switching requirements. The device integrates multiview processor, special effect generator, audio processor, control keyboard and other common components of the switcher. -
Page 5: Functional Characteristics
SWITCHER 2. Functional characteristics Switcher five-channel high-definition video switcher is a multi-functional switcher, which requires no professional knowledge and can perform video switching and audio mixing with simple operations. This machine can be used in broadcasting, live broadcasting and various event venues. ◆... -
Page 6: Size
SWITCHER 2.1 Size Size:236mm*105mm*47mm... -
Page 7: Interface Specification
SWITCHER 3. Interface Specification 3.1 Interface Introduction The Switcher interface is shown below. Definition Description TALLY DB15 pin, external call system Cascade equipment, supporting TALLY lamp module (reserved) Switch Power switch button DC 12V Power Input HDMI IN/DP IN 4 HDMI + 1 DP inputs, The first input can be switched to DP input MULTIVIEW Multiview output HDMI OUT... -
Page 8: Tally Interface
SWITCHER 3.2 TALLY Interface Function Function PGM-IN1 PVW-IN1 PGM-IN2 PVW-IN2 PGM-IN3 PVW-IN3 PGM-IN4 PVW-IN4 Note：PIN1 PIN2 not used. TALLY Online schematic： Note：Tally LED: for external display device Tally output： Active low (Tally LED is lit) High level is invalid (Tally out is off) -
Page 9: Parameter
SWITCHER parameters Name 4*HDMI+1*DP Switcher Input signal HDMI/DP video signal Rate 270Mbps~3Gbps Connector Standard Reflection loss >15dB 5MHz~3GHz Video Signal amplitude 800mV± 10%(HDMI) Signal Input 100Ω (HDMI) Impedance Balance Adaptive input HDMI 480i/576i,480p/576p,720p,1080i,1080p, support Computer HDMI input 1920x1080,1680x1050,1600x900,1440x1050,1366x768,1360x768,1360x768,1280x1024,1 support 280x960,1280x800,1280x768,1280x720,1280x600,1152x864,1024x768,800x600, output signal HDMI video output Code rate... -
Page 10: Control Panel And Interface
SWITCHER 4. Control Panel and Interface Before using the HD Mini Switcher, please take a few minutes to read this section. This chapter will introduce you the panel and interface of the HD switcher to facilitate your subsequent use and operation. The new high-strength characteristics of the new aluminum alloy with high-strength characteristics improve the anti-drop, anti-shock and shock-proof capabilities of the whole machine, and effectively protect the internal components of the equipment. -
Page 11: Key Description
SWITCHER 4.1.2 Key Description 4.1.2.1 Function area F1---Reso resolution control Press F1 on the keypad to adjust the screen output resolution. Each time you press the button, you can adjust the output resolution. The resolutions are 1080P60Hz / 1080P50Hz / 1080P30Hz / 1080P25Hz / 1080P24Hz / 1080I60Hz / 1080I50Hz. - Page 12 SWITCHER 2. The channels of the audio follow mode are IN1、 IN2、 IN3、 IN4 , and the corresponding operation panel keys (the button panel 2 lights up at this time, indicating that Operate the IN2-HDMI2 signal source as shown below.) 3.
-
Page 13: Transition Effect Control Area
SWITCHER You can also press MIX (showing green light) in the key panel, then press the "up and down" buttons of the menu button to enter the audio channel selection, press the "down" button to enter the CH1 channel, click "MENU" to enter the audio source selection, audio The source can be selected fromIN1、IN2、IN3、 IN4、... - Page 14 SWITCHER MIX Transition MIX special effects are transition effects. After setting the transition, the main output will fade from the original live picture and then transition to the new live picture until it completely disappears. Click in the special effect control area (green light is displayed after pressing), and then click AUTO or CUT to switch.
-
Page 15: Integrated Control Area
SWITCHER Transition rate adjustment When operating the transition effect control area, you can also control the transition rate by operating the RATE1, RATE2, and RATE3 in the keypad (rate1: 640ms; rate2: 1280ms; rate3: 2560ms) Note: Only when using AUTO transition effective. 4.1.2.4 Integrated control area ... - Page 16 SWITCHER PIP size and position You can use the knob to set the parameters of PIP picture-in-picture, the situation is as follows (the horizontal / vertical position size is based on the smallest display image as an example) Horizontal position setting: The value from the upper left end to the upper right end is 0-1440, and the value increases / decreases by 10 each time the knob is rotated.
-
Page 17: Pgm & Pvw Selection
SWITCHER 4.1.2.5 PGM and PVW selection Multiview output window introduction Among them Preview and Program are preview and live broadcast output respectively, as shown below. There are 4 windows below corresponding to the input source monitoring, which correspond to the No. 1 to No. 4 buttons on the switcher control panel. - Page 18 SWITCHER PGM and PVW output signals After the device is connected to the video signal source, press 1 (PGM) and 2 (PVW) in the keypad. The live and preview signal sources in the output multiview monitor are 1 (PGM) and 2 (PVW), respectively.
-
Page 19: System Menu Settings
SWITCHER After pressing the BAR button in the button panel, the screen will output color bars 5. System menu settings Menu display In the menu bar, you can perform IP settings on the device, restore the factory settings, and change the language. - Page 20 SWITCHER System settings Press the menu In the system setting menu, you can choose between two languages: Chinese or English; if you encounter an unknown error during use, you can choose to restore the factory Settings, reset. Network settings Press the menu In the network setting menu, you can choose in the IP acquisition: dynamic IP or static IP.
-
Page 21: Switcher Software Control
The software can be downloaded from Devicewell official website) (1) Click “SCANNING” to search for the corresponding device, as shown in the figure below: (1) After searching for the device, you can... - Page 22 SWITCHER Black field control area FTB --- Black field control area During the live broadcast, if you encounter an unexpected situation, you can press the FTB black button. At this time, the PGM live screen will output a black screen. The FTB in the software control panel will display a red light flashing.
- Page 23 SWITCHER Transition effect control area In the transition effect control area, you can press MIX (mixed transition), FADE (fade in and fade out transition) and up, down, left, right, up and down to six special effect transition settings. As shown below In the transition control area, you can set the transition rate.
-
Page 24: Manual For Synchronizing Local Time And Upgrading The Device
SWITCHER PGM and PVW selection area PGM and PVW are preview output and live broadcast output respectively. You can switch the input source of the console by clicking the buttons 1-4 on the software control panel. Where BAR is the color bar output. As shown below Note: If the switcher is operated on the device side, the PC-side interface cannot be displayed synchronously. - Page 25 SWITCHER Upgrade firmware Continue the above steps, double-click the device model you want to upgrade in the left device column, drag the firmware provided by Zhongdiwei into the upgrade tool, click the upgrade button, the device will automatically upgrade, and the software will display upgrade after the upgrade is successful Success;...
- Page 26 (Note that you need to press the space bar after typing ping) 7.2. Synchronize regional time 1.Go to Devicewellofficial website to download the time synchronization software, www.devicewell.com search keyword time synchronization; 2.Double-click to open the time synchronization software 3.Software function introduction, open the software default automatic setting function①...
-
Page 27: Failure And Maintenance
SWITCHER ① ② 8. Failure and Maintenance Common Faults and Solutions (1) The output image may be flickered by interference. The quality of the wire used may be poor, and the shielding layer of the wire is not well prepared. When there is a strong radio near the use environment, radio waves may interfere with the transmission of the signal, resulting in unstable signal flicker. - Page 28 SWITCHER http://www.devicewell.com...
