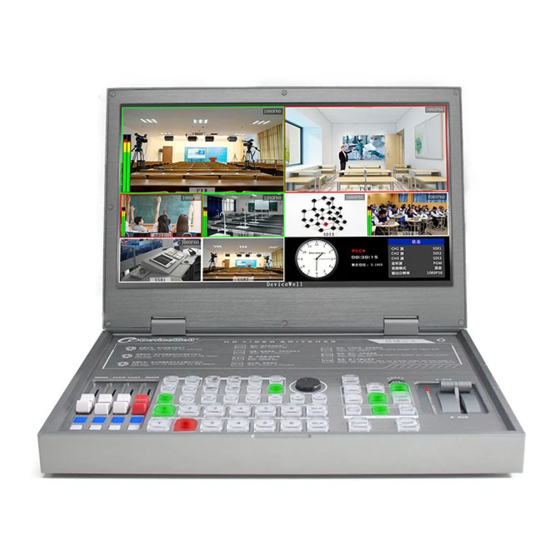

- Page 1 HDS9101 Users’ Manual SWITCHER Model: HDS9101 VER 3.1 Website: www.devicewell.com Email: support@devicewell.cn...
- Page 2 HDS9101 Precautions About this device: Copyright: ●This device belongs to the When using this unit for video and/or audio switching, publishing over the Internet, or the high-frequency video processing like, in some cases it may be necessary to equipment. Therefore, please strictly...
-
Page 3: Table Of Contents
HDS9101 Contents Overview ..........................5 1.1Introduction ........................5 1.2Size: 375*271.5*43.69mm ................... 6 Interface Specification ....................... 6 2.1Interface Introduction ....................6 2.2TALLY Interface ......................8 2.3Parameters ........................9 Functional Characteristics ....................10 Control panel and interface ..................... 11 4.1Control Panel ......................11 4.2Introduction of Control Panel Partition .............. - Page 4 6.5.2.2 Mixing mode ....................24 6.5.2.3 Audio source switching ................24 6.5.2.4Audio monitoring ..................24 6.6 Instructions for the use of HDS9101 Audio ..............24 6.7Special effects instructions ..................... 28 6.7.1MIX effects ......................28 6.7.2 FADE fades in and out .................... 29 6.7.3WIPE effect ......................
-
Page 5: Overview
The resolution of all input signals is automatically adapted, and the output signal resolution can be selected as required, which is quite flexible. The HDS9101 has a built-in recording function. For video switching needs such as broadcast TV, outdoor sports events, and school courseware production, the HDS9101 can fully satisfy the functions. -
Page 6: Size: 375*271.5*43.69Mm
HDS9101 1.2Size: 375*271.5*43.69mm Unit: mm 2.1Interface Introduction The DeviceWell HDS9101 interface is shown below. Website: www.devicewell.com Email: support@devicewell.cn... - Page 7 HDS9101 Definition Description DC POWER IN DC12V /5A power input Audio OUT Analog differential audio output Audio IN Analog differential audio input 2*HDMI PGM (live) output HDMI PGM OUT PGM (live) output, SDI OUT3 custom SDI PGM OUT PGM/PVW output...
-
Page 8: Tally Interface
HDS9101 2.2TALLY Interface HDS9101 DB-25 Interface Definition Channel PGM（LED Red PVW (LED Green） GND（9、22） TALLY : Online schematic Note：Tally LED: for external display device Tally output : Active low (Tally LED is lit) High level is invalid (Tally out is off) Website: www.devicewell.com... -
Page 9: Parameters
HDS9101 2.3Parameters Product Name Portable Video Switcher Product Model HDS9101 Input signal SDI/HDMI/DVI Video Signal Bit rate 270Mbps~3Gbps Connector Standard Video Signal Input Reflection loss >15dB 5MHz~3GHz Signal amplitude 800mV± 10%(SDI/VGA /HDMI/DVI) 100Ω (HDMI/DVI) 75Ω(SDI/VGA) Impedance Equilibrium Adaptive Output signal... -
Page 10: Functional Characteristics
HDS9101 Portable integrated design 11. Support PIP function, the size and position of the All-aluminum body, streamlined design, high strength sub-window can be adjusted arbitrarily, and the and light weight thickness and color of the border can be set. Integrated 15.6-inch full HD LCD display, on-site 12. -
Page 11: Control Panel And Interface
HDS9101 Before using the DeviceWell HD switcher, please take a few minutes to read this section. This chapter will introduce you to the panel and interface of the DeviceWell HD switcher for your convenience and operation. The new high-strength aluminum alloy has high-strength characteristics, which improves the anti-drop, anti-shock and anti-seismic ability of the whole machine, and effectively protects the internal components of the equipment. -
Page 12: Introduction Of Control Panel Partition
HDS9101 4.2Introduction of Control Panel Partition Name Introduction Mainly for audio follow, add and mix settings. Mixer Recording and channel Record button and 5th, 6th channel selection settings selection area Transition control area Set transition mode Knob Menu control media Player... -
Page 13: 3Transition Control Area
5.3.2 Channel selection and recording Recording:： The HDS9101 supports recording, which can record live broadcasts and store SD cards. Press REC directly to record, press PAUSE to pause recording, press again REC stops recording. (Note: During recording, you cannot suddenly power off or unplug the SD card; if... -
Page 14: 5Media Player
HDS9101 5.3.5Media Player Select the channel to be set,USB5or USB6. Play video/picture selection keyboard: The default is to play video; if you want to play the picture, press this button. Corresponding to play/pause, fast forward, rewind, previous song, next song. -
Page 15: 8Transition Control Area
HDS9101 The brightness key, the special effect key, The brightness keys, the cutout effect key, press the presses the buckle to black and superimpose the buckle to black and superimpose the background background source. source. Transition rate selection: RATE1, RATE2, RATE3 can be... -
Page 16: Operation Description
HDS9101 6.Operation Description 6.1Introduction of multiview output PVW and PGM are preview and Program respectively, as show below: Preview Program There are 6 windows below, which are input source monitoring, SDI and USB or DVI. Website: www.devicewell.com Email: support@devicewell.cn... -
Page 17: Pgm And Pvw Switching
HDS9101 The lower right corner is the information display of the switcher, the digital clock, the analog clock and the system state of the switcher (CH1-CH3 audio is the source of the audio channel in the right state). 6.2PGM and PVW switching 6.2.1 T-bar calibration... - Page 18 HDS9101 After the device connection is completed, enter the SDI camera 1 and the camera 2, by default it will be displayed in the lower red mark 1 and 2; then press the control panel PVW and the PGM area to press the corresponding signal source with the PVW and the PGM frame above the 1 and 2, respectively.
-
Page 19: And 6 Channel Source Switching In Pvw
The default order is DVI/VGA/HDMI/USB. If it is set, the next open source defaults to the last configured source. 6.2.3 Transition control The control mode of the transition of HDS9101 portable switcher is mainly divided into two kinds. One is the transition with special effect and the other is the transition without the special Website: www.devicewell.com... -
Page 20: Pgm Output Black
HDS9101 effect. 1. No transition special effect: Press , CUT key for hard cut, if select preview (PVW), screen directly switches to the main output (PGM), because it is no delay of seamless switching, so no transition effect. Transition with special effect: ... -
Page 21: Usb Media Player
HDS9101 6.3USB media Player Before use, please make sure that the U disk is connected, then select 5 or 6 channel for USB and use control panel to control Select the 5 or 6 channel input signal for USB and use the control panel for control. -
Page 22: Sd Card Recording
HDS9101 The media player supports video formats: HEVC, MPEG2_HD, GAAC, MPEG2, Miracast, MPEG4_HD, MPEG4, MVC, VP9, MPEG4_SD, H.264, VC1, VP8, FLV. Note: (The encoding compression method must be H.264) 6.4 SD Card Recording After connecting the device first, insert the SD card. -
Page 23: Audio Settings
SD card will be displayed in real time. 6.5Audio settings 6.5.1Audio introduction HDS9101 switcher is 1 channel audio input of XLR analog differential and 1 channel of audio output XLR analog differential; support SDI audio de-embedding, external audio and SDI/HDMI de-embedded audio that can be assigned output, support audio follow-up and mix switching function, interface and the panel is shown below. -
Page 24: Mixing Mode
6.5.2.4Audio monitoring The HDS9101 supports audio live monitoring. The 3.5mm standard headphones can be used to monitor the specified audio. By default, the PGM is monitored. By pressing the LISTEN the mixer, you can monitor any audio. - Page 25 HDS9101 Audio mode switching Switch the audio mode through the black knob of the operation panel (as shown in Figure 1) Corresponding to the lower right corner menu of the LCD screen (as shown in Figure 2) Turn the knob clockwise to the Audio Mode option (shown in Figure 3) Press the knob to enter the mode selection (as shown in Figure 4) Rotate the knob to select Mixing or Follow ;...
- Page 26 HDS9101 2. The audio following channels are IN1-SDI1, IN2-SDI2, IN3-SDI3, IN4-SDI4, IN5-HDMI5 (USB6/DVI6/VGA6), IN6-HDMI6 (USB6/DVI6/VGA6), corresponding operation panel buttons Function analysis of the mixer According to the picture on the right: 1. CH1 means the first audio channel open key, and SRC1 means the source selection of the first audio channel;...
- Page 27 HDS9101 2. Operate the mixer control area, press the SRC1 button to enter the first audio channel to select IN1, IN2, IN3, IN4, IN5, IN6, TRS_IN. The corresponding menu status bar will change according to your choice in real time.
-
Page 28: Special Effects Instructions
HDS9101 How to listen to audio Operate the mixer control area, press the LISTEN button to select the monitor source, and the corresponding menu status bar will change according to your choice in real time. The monitor source channel defaults to PGM. The channel selection of the monitor source is IN1, IN2, IN3, IN4, IN5, IN6, PGM, TRS_IN. -
Page 29: Fade Fades In And Out
HDS9101 6.7.2 FADE fades in and out Click on the effect control area and then click to use the fader or AUTO to switch. FADE fades in and out, and A gradually darkens until it is completely black, and then gradually changes from black to 6.7.3WIPE effect... -
Page 30: Pip Size And Position
HDS9101 shown below: At this time, the information on the menu bar will be switched to the PIP picture-in-picture setting. After pressing the knob, it can be set according to the requirements. As shown belo Screen Select Horizontal Vertical Display Size... -
Page 31: Picture-In-Picture Source Switching
HDS9101 6.7.4.2 Picture-in-picture source switching You can switch the input source of the PIP by pressing 1, 2, 3... in the PVW number keys. 6.7.5 Picture out picture effects The fader operates in the B-BUS state. Clicking on the POP button will display a small screen in the upper left corner of the preview. -
Page 32: Pop Size And Position
HDS9101 6.7.5.1 POP size and position You can use the knob to set the parameters of the POP drawing, as follows: Screen selection setting: You can select 1/2 two screens. Horizontal position setting: The value from the top left to the top right is 0-960, and the value of each rotation knob is increased/decreased by 10. -
Page 33: Panels For Luma Key
HDS9101 6.7.7 Panels for Luma Key Switch the video or picture of the black background white font to the PVW preview window, and turn on the Luma KEY brightness key function. At this time, the LCD will display a Luma key... -
Page 34: Panels For Chroma Key
HDS9101 6.7.9 Panels for Chroma Key Switch the blue background or green background to the PVW preview window. When the KEY2 chroma key function is enabled, a parameter setting interface of the chroma key will appear on the LCD screen. Select the background of your key through the knob. The image is achieved by CUT/AUTO/T-Bar, and the image you want to superimpose appears in the PGM;... -
Page 35: System Menu Setting
HDS9101 6.8System Menu Setting In the menu, you can perform IP settings on the device, restore the system to factory settings, change the language, etc. In the power-on default state, press the knob to enter the main menu. As shown below 6.8.1 System Setting... -
Page 36: Ip Setting
HDS9101 6.8.2 IP Setting There are two modes for obtaining an IP address. One is dynamic configuration, and the other is a static IP address that needs to be manually configured. Remember to save and exit after the setup is complete. -
Page 37: Instructions For Using Push Streaming
HDS9101 6.9 Instructions for using push streaming 1. HDS9101 is a hardware push device, which needs to be connected to the local area network through the RJ45 network port 2. First, we need a computer, open the browser and enter the default WEB interface IP address of our device: 192.168.1.239, as shown below... - Page 38 HDS9101 effect immediately; 4. Push streaming settings Index 1-8 groups, which means that 8 groups of push addresses can be stored inside the device; User name means that each group of push addresses can be named by themselves, and the naming is only valid for letters and numbers;...
-
Page 39: Failure And Maintenance
HDS9101 parameter setting module. 7) The index in the push stream settings can save 8 groups of push streams, the user name only displays English characters and numbers, and the push stream address is the address of the live broadcast platform. -
Page 40: Warranty Information
HDS9101 Warranty information The company guarantees that the process and materials of the product are not defective within 12 months after purchase from the company or its authorized distributors, under normal use and service support. We offer a one-year warranty after sale.
