Summary of Contents for DeviceWell HDS9336

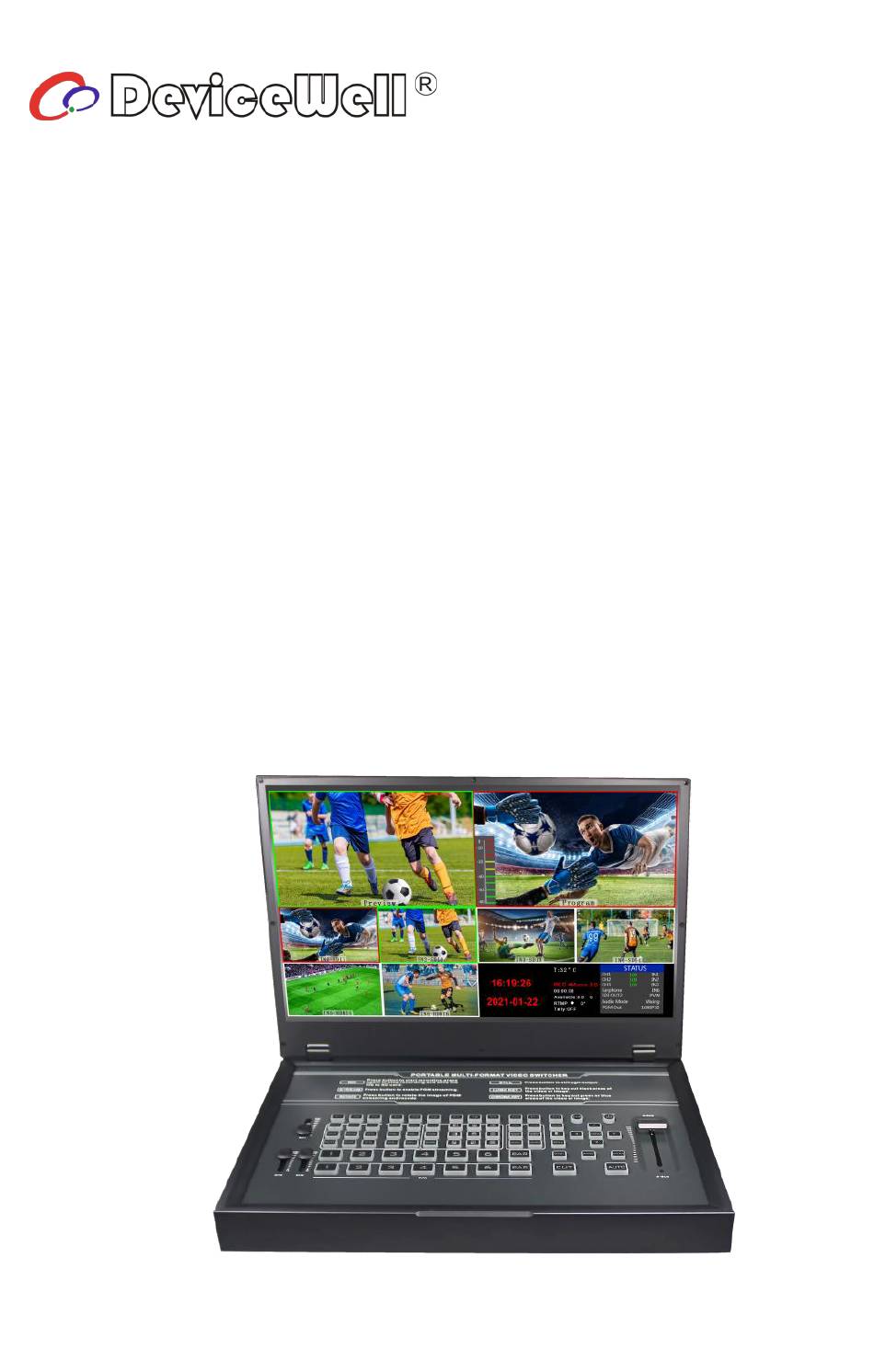

- Page 1 Users’ Manual 6-CH SWITCHER HDS9336 VER 1.0...
- Page 2 HDS9336 Preparation Before Installation Caution ●During transportation, handling, and installation of switchboard equipment, avoid collisions between the switchgear equipment and doors, walls, shelves, etc. ●When the equipment is unpacked and transported, it is strictly forbidden to put it down and drag it gently to avoid damage to the switchboard equipment.
-
Page 3: Table Of Contents
HDS9336 Contents 1. Overview…………………………………………………………………………………..…..0 Introduction……………………………………………………………………………….…..04 2.Functional characteristic……………………………………………………………..0 Size……………………………..……………….………………….……………………...……...06 3. Interface Specification……………………………………………………………..……0 Interface Introduction………………………..………….……….......…07 TALLY Interface……………………..………….………………….…….……..………...…08 Parameter……………………..………….……….…………………….………….……...…09 4. Control Panel and Interface……………..……………………………...….. Control Panel.………………………..………….……….……………….…….…….…….10 4.1.1 Area Description……………..………….………….…….………..…………….….10 4.1.2 Key Description……………..………….……….………….……………..……...….11 4.1.2.1 Functional area…………………………..……….……….………..…...….11 4.1.2.2 Audio Control Area…………………….……….……………………….….12 4.1.2.3 Transition control area…………………….……….……….…………….15 4.1.2.4... -
Page 4: Overview

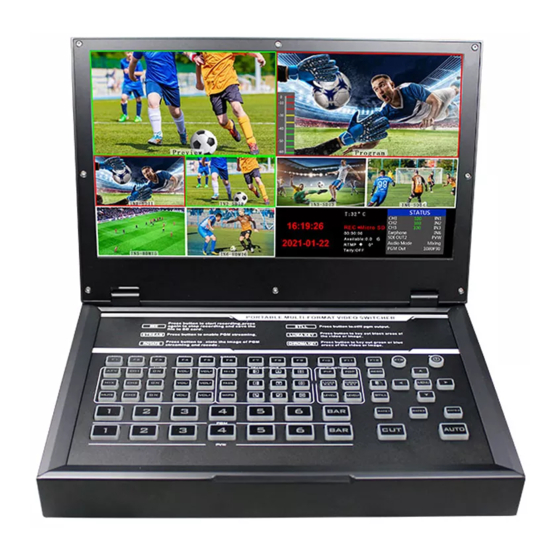

OSD menu, control keyboard, LCD panel and other common components of the switcher. HDS9336 supports 4 channels of broadcast SDI and 2 channels of HDMI input for a total of 6 channels of video signals. In addition to the built-in liquid crystal display preview screen, external preview signals can be output synchronously, which is convenient for users to expand. -
Page 5: Functional Characteristic
HDS9336 2. Functional characteristics The DeviceWell HDS9336 6-channel HD video switcher is a multi-function switcher that requires no special knowledge and can be used for video switching and audio mixing with simple operation. This unit can be used in radio and television, live broadcast and various activities ◆... -
Page 6: Size
HDS9336 2.1 Size：362*215*43mm... -
Page 7: Interface Specification
HDS9336 3. Interface Specification 接口规格说明 3.1 Interface Introduction The interface of DeviceWell HDS9336 is shown below Definition Description Monitor volume adjustment PHONE Audio monitor port RJ45 RTMP Network stream USB/SD Card SD card/U Disck recording Cascade equipment, supporting TALLY lamp module... -
Page 8: Tally Interface
HDS9336 3.2 TALLY Interface Function Function PGM-IN1 PVW-IN1 PGM-IN2 PVW-IN2 PGM-IN3 PVW-IN3 PGM-IN4 PVW-IN4 PGM-IN5 PVW-IN5 PGM-IN6 PVW-IN6 Note：PIN1 PIN2 not used. TALLY : Online schematic： Note：Tally LED: for external display devices Tally output : Active low (Tally LED is lit) High level is invalid (Tally out is off) -
Page 9: Parameter
HDS9336 3.3 Parameter Name Portable Video Switcher Model HDS9336 Input signal SDI/HDMI Video Signal Bit rate 270Mbps~10.2Gbps Connector Standard Video Signal Input Reflection loss >15dB 5MHz~3GHz Signal amplitude 800mV± 10%(SDI /HDMI) 100Ω (HDMI) 75 Ω(SDI) Impedance Equilibrium Adaptive Output signal... -
Page 10: Control Panel And Interface
HDS9336 4. Control Panel and Interface Before using the HD Switcher , please take a few minutes to read this section. This chapter will introduce you the panel and interface of the HD switcher to facilitate your subsequent use and operation. -
Page 11: Key Description
HDS9336 4.1.2 Key Description 4.1.2.1 Functional area F1---REC resolution control Press REC to start recording, the F1 button light is on, and the recording state of the guide screen starts to time, and the F1 button is pressed next time and the light is off, and the recording ends. -
Page 12: Audio Control Area
HDS9336 4.1.2.2 Audio Control Area Audio mode is divided into follow and mixing assignment ; Follow：The audio is output to the PGM live broadcast following the video, which means what is the audio coming in from the camera, and what is the audio output from the live broadcast of the switcher;... - Page 13 HDS9336 2、 Audio channel IN1-SDI1、 IN2-SDI2、 IN3-SDI3、 IN4-SDI4、 IN5-HDMI5、 IN6-HDMI6, Corresponding operation panel keys 3. The volume adjustment of the audio follow mode is controlled by the mixer of the operation panel; press the AFV button of the follow mode, the corresponding CH1 light will also light up, the more the audio fader is pushed up, the volume is Bigger.
- Page 14 HDS9336 3. Operate the mixer control area, press the CH2 button repeatedly to enter the second audio channel selection IN1, IN2, IN3, IN4, IN5, IN6, TRS_IN, the corresponding menu status bar will change in real time according to your selection (as shown in the figure) As shown below)
-
Page 15: Transition Control Area
HDS9336 4.1.2.3 Transition control area There are 12 transition modes: MIX mixed special effects transition, FADE fade-in and fade-out transition, and WIPE wipe transition, as shown on the right MIX effects The MIX effect is a transition effect. After setting, the original live screen will gradually fade in the main output of the transition, and then it will completely transition to the new live screen. -
Page 16: Integrated Control Area
HDS9336 WIPE special effects transition There are four transition methods for Wipe Up transition: Click in the special effect control area (press and display a green light), then click in the special effect control area (press and display a green light), and then click the CUT button or use the T-bar or AUTO to switch. - Page 17 HDS9336 Screen Select The information on the LCD screen will switch to Horizontal the PIP picture-in-picture setting, which can be set as required after pressing the knob. As Vertical shown on the right Display Size Small Border switch Border width...
-
Page 18: Pgm&Pvw Selection
HDS9336 POP size and position You can use the knob to set the parameters of the POP picture outside picture, the situation is as follows Picture selection setting: You can choose 1/2 pictures. Horizontal position setting: the value from the upper left end to the upper right end is 0-960, and the value increases/decreases by 10 every time you turn the knob. - Page 19 HDS9336 Preview and Program are pre-monitoring and live output respectively. As shown below There are 6 windows at the bottom of the multiview, corresponding to the input source monitoring, respectively corresponding to buttons 1-6 on the switcher control panel. As shown below ...
- Page 20 HDS9336 PGM and PVW source switching If you want to switch between live broadcast and preview signal sources in multiple screens (Live ⇌ preview) Suppose you want to convert the live source 1 (PGM) and preview source 2 (PVW) in the multi-screen into 2 (PGM) and 1 (PVW), just press 2 (PGM) and 1 (PVW), then use the menu to switch.
- Page 21 HDS9336 The panel realizes luma keying Switch the white font video or picture with black background to the PVW preview window, turn on the brightness key function of KEY1, at this time a brightness key parameter setting interface will appear on the LCD, and then use CUT/AUTO/T-Bar to switch to superimpose...
-
Page 22: Stream Instructions
0-64. 5. Stream instructions 1、HDS9336 is a hardware streaming device, which needs to be connected to the LAN through the STREAM interface on the side of the device; then enter the streaming... - Page 23 HDS9336 2. First, we need a computer, open the browser and enter the IP address in the push streaming setting menu of our device; For example, in the following figure, we fill in the automatically obtained 192.168.1.233 IP address into the browser to search, and then enter the WEB interface;...
- Page 24 HDS9336 3、User setting The screen rotates clockwise 0/90/180/270 degrees, the drop-down box selection takes effect immediately, and the recorded video and the streaming video rotate at the same time. The recording bit rate corresponds to the same setting in the menu, low, medium, high, and super high levels.
- Page 25 HDS9336 5、Analysis of WEB interface functions 1) When the recording function is turned on, the screen rotation, recording bit rate and other functions of the WEB interface are prohibited to be set, so please set the parameters before turning on the recording function.
-
Page 26: System Menu Settings
HDS9336 6. System Menu Setting There is a status menu display in the lower right corner of the device's multiview, and the device status is displayed by default when it is turned on; CH1/CH2/CH3 source indicates the current mixing channel status of the device;... - Page 27 HDS9336 System Setting After turning the knob to the system setting, you can click the knob to enter the system setting submenu, as shown below: System Setting Language selection EN/CH Time display Digital/analog F1 PIP/POP/KEY/ STREAM / STILL /OFF F2 PIP/POP/KEY/STREAM/STILL/OFF...
- Page 28 HDS9336 Record Setting Record Setting Rate Control The level can be set in the Level Low/Medium/High/Super High recording settings, there Storage Micro SD card are low, medium, high and Exit super high to set. 6.4 Stream Setting Stream Setting Stream Type...
-
Page 29: Failure And Maintenance
HDS9336 Failure and Maintenance Common Faults and Solutions (1) The output image may be flickered by interference. The quality of the wire used may be poor, and the shielding layer of the wire is not well prepared. When there is a strong radio... -
Page 30: More Switcher Options
HDS9336 Warranty information The company guarantees that the process and materials of the product are not defective within 12 months after purchase from the company or its authorized distributors, under normal use and service support. We offer a one-year warranty after sale. - Page 31 HDS9336 HDS9112 Portable switcher (12 SDI) HDS6506 All-in-one switcher(6-CH) HDS6110 All-in-one switcher (10-CH) HDS6112 All-in-one switcher (12-CH) HDS7105S Simple switcher(4HDMI+1DP) HDS7105 Simple switcher(4HDMI+1DP) HDS7105P HDS7105 with T-Bar HDS7205S Simple switcher(4HDMI+1DP) HDS7205 Simple switcher(4HDMI+1DP) HDS7106 Simple switcher(4SDI+2HDMI)
- Page 32 HDS9336 http://www.devicewell.com...
