- Page 1 Users’ Manual 5-CH SWITCHER HDS9135 VER 1.0...
- Page 2 Preparation Before Installation Caution ●During transportation, handling, and installation of switchboard equipment, avoid collisions between the switchgear equipment and doors, walls, shelves, etc. ●When the equipment is unpacked and transported, it is strictly forbidden to put it down and drag it gently to avoid damage to the switchboard equipment. ●Do not place the switcher equipment in a flammable, explosive atmosphere or smoke environment.
-
Page 3: Table Of Contents
SWITCHER Contents 1. Overview……………………………………………………………………….…………….. Introduction……………….…………………………………………………………..…..3 2. Functional characteristics………….……………………………………………..Size……………………………………..………………….………………….………..………4 3. Interface Specification..……………….………………………………….………..Interface Introduction……………..…….…….………………….…………..……...5 TALLY Interface……………………..………….….………………….……………..…….…6 Parameter……………………….……….……….…………………….……………..……….7 4. Control Panel and Interface………..…………………..………………………..…… Control Panel.………………………..…………….………………….……………………..8 4.1.1 Area Description……………..………………………….…….……….…………….8 4.1.2 Key Description……………..………….……………….…….…………..………….9 4.1.2.1 Function Area……………….….…………………………..…..……….9 4.1.2.2 Audio Control Area……………….……….……………….…….………9 4.1.2.3 Transition Effect Control Area………………….……….…………..11 4.1.2.4 Integrated Control Area.……………….……….……….…….…..13 4.1.2.5... -
Page 4: Overview

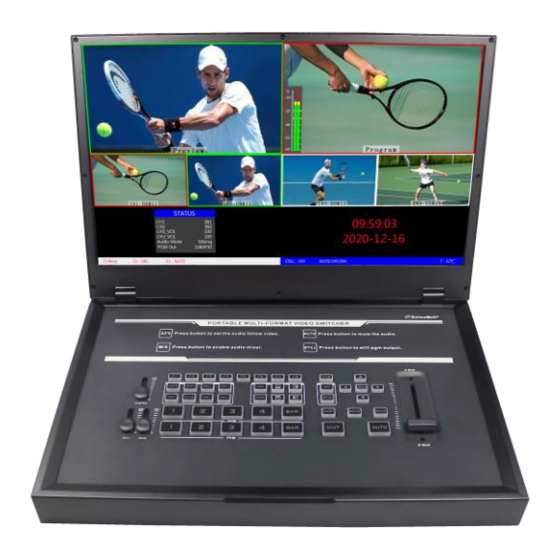

HDS9135 supports 4 HDMI + 1 DP signal input, a total of 5 video signals. The external preview signal can be output synchronously. HDS9135 supports HDMI embedded audio + external analog audio. -
Page 5: Functional Characteristics
SWITCHER 2. Functional characteristics DeviceWell HDS9135 5-CH HD video switcher is a multi-functional switcher, no professional knowledge is required, and video switching and audio mixing can be performed by simple operations. This machine can be used in broadcasting, live broadcast and various event venues. -
Page 6: Interface Specification
SWITCHER 3. Interface Specification 接口规格说明 3.1 Interface Introduction The Switcher interface is shown below. Definition Description Listen volume adjustment PHONES 3.5mm audio listen Cascade equipment, supporting TALLY lamp module (reserved) Switch Power switch button TALLY TALLY RJ45 Network upgrade LINE OUT Stereo audio output LINE IN Stereo audio input... -
Page 7: Tally Interface
SWITCHER 3.2 TALLY Interface FUNCTION FUNCTION PGM-IN1 PVW-IN1 PGM-IN2 PVW-IN2 PGM-IN3 PVW-IN3 PGM-IN4 PVW-IN4 PGM-IN5 PVW-IN5 PGM-IN6 PVW-IN6 Note：PIN1 PIN2 not used. TALLY Online schematic： ： Note：Tally LED: for external display device Tally output： Active low (Tally LED is lit) High level is invalid (Tally out is off) -
Page 8: Parameter
SWITCHER 3.3 Parameters Name 4*HDMI+1*DP Switcher Input signal HDMI/DP video signal Rate 270Mbps~3Gbps Connector Standard Reflection loss >15dB 5MHz~3GHz Video Signal amplitude 800mV± 10%(HDMI) Signal Input 100Ω (HDMI) Impedance Balance Adaptive input HDMI 480i/576i,480p/576p,720p,1080i,1080p, support Computer HDMI input 1920x1080,1680x1050,1600x900,1440x1050,1366x768,1360x768,1360x768,1280x1024,1 support 280x960,1280x800,1280x768,1280x720,1280x600,1152x864,1024x768,800x600, output signal HDMI video output... -
Page 9: Control Panel And Interface
SWITCHER 4. Control Panel and Interface Before using the HD Mini Switcher, please take a few minutes to read this section. This chapter will introduce you the panel and interface of the HD switcher to facilitate your subsequent use and operation. The new high-strength characteristics of the new aluminum alloy with high-strength characteristics improve the anti-drop, anti-shock and shock-proof capabilities of the whole machine, and effectively protect the internal components of the equipment. -
Page 10: Key Description
SWITCHER 4.1.2 Key Description 4.1.2.1 Function area F1---Reso resolution control Press F1 on the keypad to adjust the screen output resolution. Each time you press the button, you can adjust the output resolution. The resolutions are 1080P60Hz / 1080P50Hz / 1080P30Hz / 1080P25Hz / 1080P24Hz / 1080I60Hz / 1080I50Hz. - Page 11 SWITCHER 2. The channels of the audio follow mode are IN1、 IN2、 IN3、 IN4 , and the corresponding operation panel keys (the button panel 2 lights up at this time, indicating that Operate the IN2-HDMI2 signal source as shown below.) 3.
-
Page 12: Transition Effect Control Area
SWITCHER You can also press MIX (showing green light) in the key panel, then press the "up and down" buttons of the menu button to enter the audio channel selection, press the "down" button to enter the CH1 channel, click "MENU" to enter the audio source selection, audio The source can be selected fromIN1、IN2、IN3、 IN4、... - Page 13 SWITCHER MIX Transition MIX special effects are transition effects. After setting the transition, the main output will fade from the original live picture and then transition to the new live picture until it completely disappears. Click in the special effect control area (green light is displayed after pressing), and then click AUTO or T-bar or CUT to switch.
-
Page 14: Integrated Control Area
SWITCHER Transition rate adjustment When operating the transition effect control area, you can also control the transition rate by operating the RATE1, RATE2, and RATE3 in the keypad (rate1: 640ms; rate2: 1280ms; rate3: 2560ms) Note: Only when using AUTO transition effective. 4.1.2.4 Integrated control area ... - Page 15 SWITCHER PIP size and position You can use the knob to set the parameters of PIP picture-in-picture, the situation is as follows (the horizontal / vertical position size is based on the smallest display image as an example) Horizontal position setting: The value from the upper left end to the upper right end is 0-1440, and the value increases / decreases by 10 each time the knob is rotated.
-
Page 16: Pgm & Pvw Selection
SWITCHER 4.1.2.5 PGM and PVW selection Multiview output window introduction Among them Preview and Program are preview and live broadcast output respectively, as shown below. There are 4 windows below corresponding to the input source monitoring, which correspond to the No. 1 to No. 4 buttons on the switcher control panel. - Page 17 SWITCHER PGM and PVW output signals After the device is connected to the video signal source, press 1 (PGM) and 2 (PVW) in the keypad. The live and preview signal sources in the output multiview monitor are 1 (PGM) and 2 (PVW), respectively.
-
Page 18: System Menu Settings
SWITCHER After pressing the BAR button in the button panel, the screen will output color bars 5. System menu settings Menu display In the menu bar, you can perform IP settings on the device, restore the factory settings, and change the language. - Page 19 SWITCHER System settings Press the menu In the system setting menu, you can choose between two languages: Chinese or English; if you encounter an unknown error during use, you can choose to restore the factory Settings, reset. Network settings Press the menu In the network setting menu, you can choose in the IP acquisition: dynamic IP or static IP.
-
Page 20: Instructions For Usb Interface To Obs Software
Step 1: Connect the board to WIN7 through the USB data cable. After the WIN7 end is identified, HDS9135 Audio will appear in the device list.Interface and HDS9135 Video represent ok. As shown in Figure ①. Figure ① Audio and Video nodes in the device manager. -
Page 21: Time Synchronization Instructions
1920 * 1080, 1280 * 720, 640 * 360, as shown in Figure ④. Pull down to set the audio properties. Audio output mode selection: output desktop audio (WaveOut); tick Use custom audio device Audio equipment selection: Capture Input terminal (HDS9135 Audio Interface), as shown in Figure ⑤ HDS9135 Video IN Custom... - Page 22 SWITCHER 2. Double-click to open the time synchronization software； 3.Software function introduction, open the software default automatic setting function; Connect the device to the internet cable and be in the same local area network as the computer. Click Auto Sync, and the computer will automatically synchronize your device time.
-
Page 23: Failure And Maintenance
SWITCHER 8. Failure and Maintenance (1) The output image may be flickered by interference. The quality of the wire used may be poor, and the shielding layer of the wire is not well prepared. When there is a strong radio near the use environment, radio waves may interfere with the transmission of the signal, resulting in unstable signal flicker. - Page 24 SWITCHER http://www.devicewell.com...
