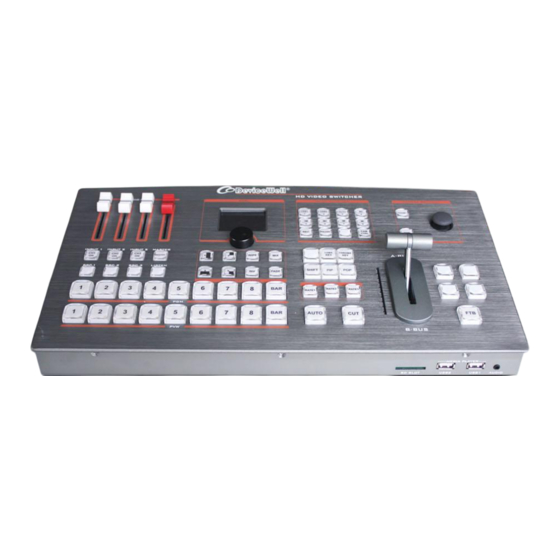

DeviceWell HDS6110 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

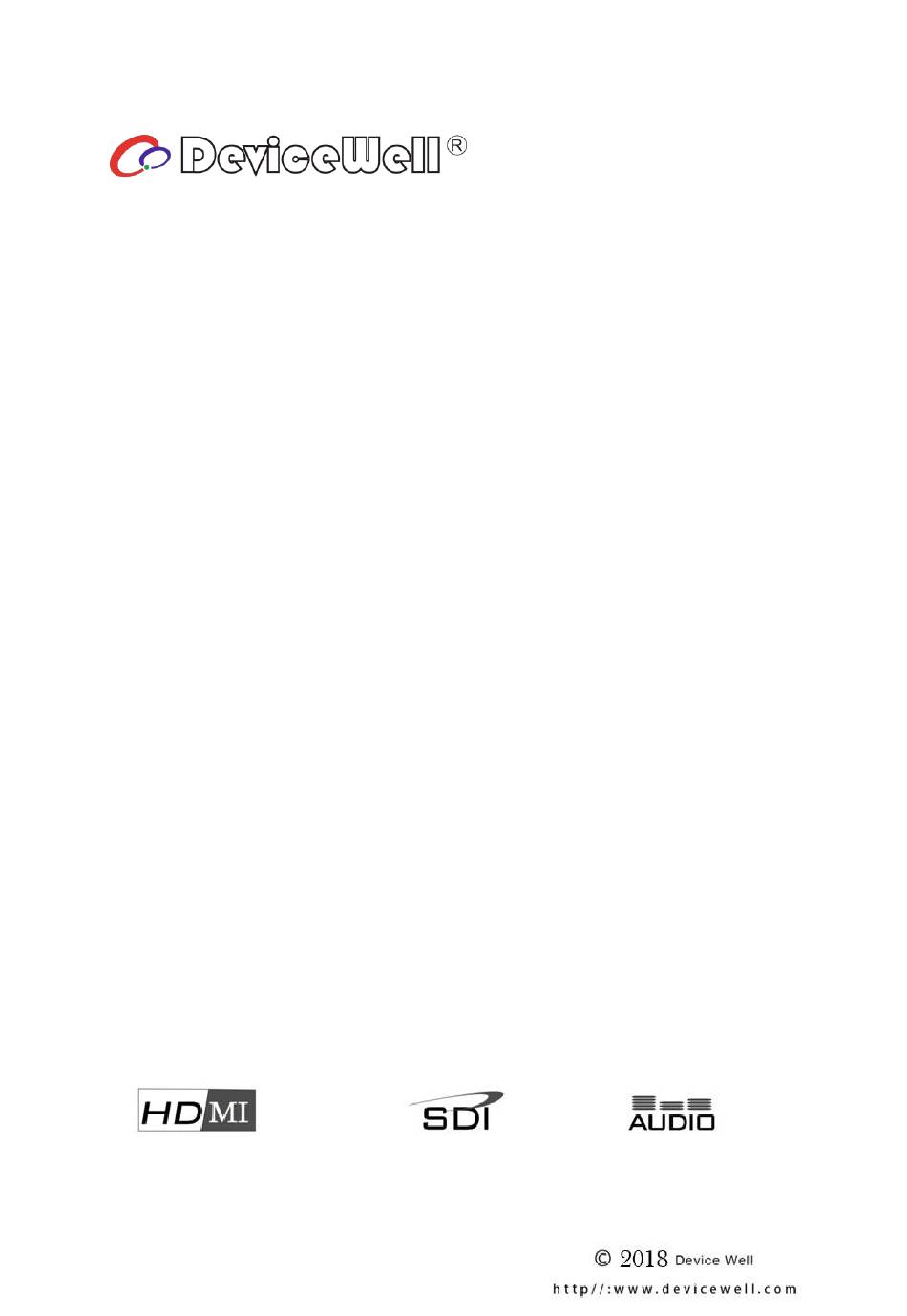

Users' Manual
SWITCHER
Model: HDS6110
VER 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDS6110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DeviceWell HDS6110

Summary of Contents for DeviceWell HDS6110

  • Page 1 Users’ Manual SWITCHER Model: HDS6110 VER 2.1...

  • Page 2: Precautions

    HDS6110 Precautions About this device: Copyright: ●This device belongs to the When using this unit for video and/or audio switching, publishing over the Internet, or the high-frequency video processing like, in some cases it may be necessary to equipment. Therefore, please strictly...

  • Page 3: Table Of Contents

    HDS6110 Contents Precautions ..........................2 Overview ........................... 6 Product Introduction ................... 6 Function Features ......................7 Preparation Before Installation ..................8 Equipment Unpacking ....................... 9 Size: 409.94*236.9*92mm ................. 9 Interface Specification ..................... 10 Interface Introduction ..................10 TALLY Interface ....................12 Interface Parameters ..................
  • Page 4 HDS6110 T-bar Calibration ....................22 7.3.1 Panels Enable PGM and PVW Channel Selection ........... 24 7.3.2 Transition control ..................... 25 7.3.3 PGM Output Black Field .................. 25 7.3.4 USB Media Playback ..................26 7.3.5 SD card recording ..................... 27 7.3.6 Audio Settings ....................
  • Page 5 HDS6110 Common Faults and Solutions ................40 Maintenance...................... 40 Warranty information ..................40 8.2.1 Website: www.devicewell.com Email: support@devicewell.cn...

  • Page 6: Overview

    DEVICEWELL 10-channel switcher HDS6110 is an 8-channel SDI, 2-channel HDMI and 2-channel U-disk playback input video signal, a total of 6 SDI output, 3 HDMI output broadcast-level video signals.

  • Page 7: Function Features

    HDS6110 2. Function Features The DeviceWell Switcher is a multi-function switcher that requires no special knowledge and can be used for video switching and audio mixing with a simple operation. This unit can be used in radio and television, live broadcast and various activities.

  • Page 8: Preparation Before Installation

    HDS6110 3. Preparation Before Installation Caution ●During transportation, handling, and installation of switchboard equipment, avoid collisions between the switchgear equipment and doors, walls, shelves, etc. ●When the equipment is unpacked and transported, it is strictly forbidden to put it down and drag it gently to avoid damage to the switchboard equipment.

  • Page 9: Equipment Unpacking

    HDS6110 4. Equipment Unpacking When unpacking inspection, if the sealing label or packaging is found to be damaged, stop unpacking and report the situation to the equipment dealer. If the quantity of the goods is correct and the packaging is intact, the goods can be inspected.

  • Page 10: Interface Specification

    HDS6110 5. Interface Specification Interface Introduction HDS6110 interface is shown below. Definition Description TALLY DB-25 interface HDMI IN 2-CH HDMI input SDI IN 8-CH SDI input 3-way SDI video output PGM, SDI OUT1 custom output SDI OUT PGM/PVW, SDI OUT2 AUX auxiliary output...
  • Page 11 HDS6110 Definition Description SD Card SD card recording PGM screen USB media player AUDIO Audio monitoring Website: www.devicewell.com Email: support@devicewell.cn...

  • Page 12: Tally Interface

    HDS6110 5.2 TALLY Interface Hds6110 DB-25 Interface Definition Channel PGM（LED Red PVW (LED Green） GND:13 TALLY : Online schematic Note：Tally LED: for external display device Tally output : Active low (Tally LED is lit) High level is invalid (Tally out is off) Website: www.devicewell.com...

  • Page 13: Interface Parameters

    HDS6110 5.3 Interface Parameters Name Portable Switcher Model HDS6110 Input Signal SDI/HDMI/DVI Video Signal Rate 270Mbps~3Gbps Connector Standard Video Signal Reflection loss >15dB 5MHz~3GHz Input Signal amplitude 800mV± 10%(SDI/VGA /HDMI/DVI) 100Ω (HDMI/DVI) 75Ω(SDI/VGA) Impedance Balance Adaptive SDI/HDMI /DVI/VGA Video Signal...

  • Page 14: Control Panel And Interface

    In addition to the innovation of the enclosure, the DeviceWell HD switcher has also been completely optimized for the interface connector. Environmentally friendly materials with new RoHS standards are more demanding in terms of durability and environmental protection, providing customers with more stable, cost-effective and environmentally friendly products.

  • Page 15: Button Description

    6.1.2.2 Knob and LCD menu HDS6110 integrated LCD menu, can be set by knob The LCD menu is mainly divided into status display and menu settings. The knob control menu is divided into 3 states: 1.

  • Page 16: Usb Media Play Area

    HDS6110 6.1.2.3 USB Media Play Area USB1 and USB2 in the multimedia play area are control options, and USB1 is also controlled on USB1. VD/PIC is selected for video or picture, the default is to play video. Once pressed, you can switch to picture playback.

  • Page 17: Camera Control Area

    HDS6110 6.1.2.4 Camera Control Area Zoom in shooting distance Reduced shooting distance Push the camera rocker up: the lens is up Push the camera rocker down: the lens is down Push the camera rocker left: rotate the lens counterclockwise Push the camera rocker right: rotate the lens clockwise 6.1.2.5 Transition Control Area...

  • Page 18: Integrated Control Area

    HDS6110 6.1.2.7 Integrated Control Area Auxiliary output, after accessing SDI OUT2, press AUX and press any one of the PVWs to assign one output to any of the 8 videos. Luma key, press button to deduct the black and background source overlay.

  • Page 19: T-Bar

    HDS6110 6.1.2.8 T-bar The switcher T-Bar system consists of a pusher module and an indicator light. Pushing the T-bar up can complete the transition. When the T-bar is pushed, the indicator light will follow the movement to the top 1 (the pusher pushes to the bottom and the top is a light).

  • Page 20: Button Operation Instructions

    HDS6110 7. Button Operation Instructions 7.1 Multi-Screen Output Window Introduction Preview and Program are preview and live output respectively; As shown below: There are 8 windows below that correspond to the input source monitoring, corresponding to the 1 - 8 buttons on the switchboard control panel.

  • Page 21: Multi-Screen Preview 8 Channel Source Switching

    HDS6110 7.2 Multi-screen preview 8 channel source switching 7.2.1 Panel realizes 10 screen split display and preview switching of 8 channel sources As shown above, the 7th window and the 8th window replace the input source; first press the SHIFT button on the control panel and then press 7/8 in the PVW, press SDI7/SDI8 once, repeat this operation to switch SDI7/ USB7/HDMI7 and SDI8/USB8/HDMI8.

  • Page 22: Pgm&Pvw Switching

    HDS6110 7.3 PGM&PVW Switching 7.3.1 T-bar Calibration When the switcher is in use, the fader misalignment may occur, and the origin of the switcher fader is offset. Therefore, the switcher pushrod system should be calibrated before use. First press the 1 and 2 buttons in the PGM area simultaneously with the device turned off. As shown below: Note: The 1 and 2 keys cannot be released during the calibration process.
  • Page 23 HDS6110 After the device is wired, input SDI camera 1 and camera 2, the default will be displayed in the red mark 1 and 2 position in the figure below; then press 1 and 2 respectively in the PVW and PGM areas of the control panel, then the PVW and PGM boxes above will display correspondingly.

  • Page 24: Panels Enable Pgm And Pvw Channel Selection

    HDS6110 7.3.2 Panels Enable PGM and PVW Channel Selection The button board and the 1-8 channels in the PGM &PVW of the PC control software correspond to the 8 multi-screens under the 10-screen segmentation. Press the selection in the PGM area as shown above, and the button will turn red (live).

  • Page 25: Transition Control

    HDS6110 7.3.3 Transition control The transition control method of DeviceWell HDS6110 portable switcher is mainly divided into two types, one is transition special effect, and the other is transition mode without transition special effect. 1、 No transition effect: Press , CUT button is hard cut. If you select the preview (PVW) screen to switch directly to the main output (PGM), because there is no delay seamless switching, there is no transition effect.

  • Page 26: Usb Media Playback

    HDS6110 7.3.5 USB Media Playback Select the USB channel USB1 or USB2 to be controlled, and USB1 corresponds to the USB1 playback of the interface panel. Play video/picture selection keyboard: The default is to play video; if you want to play the picture, press this button to switch to picture playback.

  • Page 27: Sd Card Recording

    HDS6110 7.3.6 SD card recording SD card You can use the SD card to record video. After inserting the SD card normally, press the REC button to record the PGM output video. To pause, you can click the PAUSE button Note: (Before using the SD card, format the SD card first, the SD card supports the FAT32/exFAT file format, and supports up to 128G SD card;...

  • Page 28: Audio Settings

    HDS6110 7.4 Audio Settings 7.4.1 Audio Introduction HDS6110 10-CH switcher has 1 XLR balanced audio input; 1 XLR balanced audio output. The audio mode is divided into mixing and following. 7.4.2 Audio Description 7.4.2.1 Audio Follow The default audio mode of the device is audio follow-up (the audio source is HDMI or SDI input).

  • Page 29: Mixing Mode

    7.4.2.5 Audio Monitoring The HDS6110 supports audio live monitoring. The 3.5mm standard headphones can be used to monitor the specified audio. By default, the PGM live video is monitored. By pressing the LISTEN on the mixer, you can monitor any audio.

  • Page 30: Special Effects Instructions

    HDS6110 7.5 Special effects instructions 7.5.1 MIX Transition Effects The MIX blend effect is a transition effect. After setting, the transition will have the original live screen fade in the main output and then disappear until it disappears completely to the new live screen, as shown below.

  • Page 31: Wipe Transition Effects

    HDS6110 7.5.3 WIPE Transition Effects Press to select the mode of the wipe, there are 4 modes. As shown on the right After selecting the way of the wipe, click on AUTO or push the T-bar You can see the effect of the switch. If selected...

  • Page 32: Pip Picture-In-Picture Special Effects

    HDS6110 7.5.4 PIP Picture-In-Picture Special Effects When the T-bar is operated in the B-BUS state, the PIP button will have a small screen appearing in the upper left corner of the preview. The source signal of the SDI1 is displayed by default.
  • Page 33 HDS6110 PIP size and position You can use the knob to set the parameters of the PIP picture-in-picture, as follows: Horizontal position setting: The value from the top left to the top right is 0-1280, and the value of each rotation knob is increased/decreased by 10.

  • Page 34: Pop Picture-Out-Picture Special Effect

    HDS6110 7.5.5 POP Picture-Out-Picture Special Effect The T-bar operates in the B-BUS state. Clicking on the POP button will display a small screen in the upper left corner of the preview. The source signal of the SDI1 is displayed by default. The default background is PVW.

  • Page 35: Luma Key

    HDS6110 POP size and position You can use the knob to set the parameters of the POP drawing, as follows Screen selection setting: You can select 1/2 two screens. Horizontal position setting: The value from the top left to the top right is 0-960, and the value of each rotation knob is increased/decreased by 10.

  • Page 36: Panel Brightness Image

    HDS6110 7.5.6.1 Panel brightness image Switch the video or picture of the black background white font to the PVW preview window, and turn on the Luma KEY brightness key function. At this time, the LCD will display a brightness key parameter setting interface, and then use the CUT/AUTO/push switch to superimpose the characters.

  • Page 37: Panel Color Image

    HDS6110 7.5.7.1 Panel color image Switch the blue background or green background to the PVW preview window, and then turn on the Chroma KEY chroma key function. At this time, the LCD screen will display a parameter setting interface for the chroma key. Use the knob to select the background of your key image.

  • Page 38: System Menu Settings

    HDS6110 7.6 System Menu Settings In the menu, you can perform IP settings on the device, restore the system to factory settings, change the language, etc. In the power-on default state, press the knob to enter the main menu. As shown below...

  • Page 39: Network Setting

    HDS6110 7.6.2 Network Setting There are two modes for obtaining an IP address. One Network Setting is dynamic configuration, and the other is a static IP IP Source static IP address. The static IP address needs to be manually IP Address 192.168.1.237...

  • Page 40: Failure And Maintenance

    HDS6110 8. Failure and 8.1 Common Faults and Solutions (1) The output image is disturbed and may be disturbed by other devices. (2) When plugging in the audio and video interface, if there is obvious static electricity, the device power ground wire may not be good grounding, please ground in the correct way;...
