Sanus Systems VM300 Assembly Instructions

Step 4: Attach Monitor Brackets to a television with a curve, recess, or other obstuction on the back.
Make sure the Locking Monitor Bracket (b) is located on the left side as shown in Diagram 4. If your TV requires either a M4 or M5
diameter bolt, thread a M4 x 30mm (p) or a M5 x 30mm Bolt (q) through the appropriate Lock Washer (g,h), an M4/M5 Washer (j), the
Monitor Bracket (b,c), a M4/M5 Spacer (k) and into the TV as shown on the left side of the Detailed View of Diagram 4. If you deter-
mined that your TV requires a Bolt with a M6 Diameter, thread a M6 x 35 (r) Bolt through a Lock Washer (i), the Monitor Bracket, a M6
Spacer (l) and into the TV, as shown on the right side the Detailed View of Diagram 4 for assistance. Proceed to tighten the Bolts firmly
with a phillips screw driver.

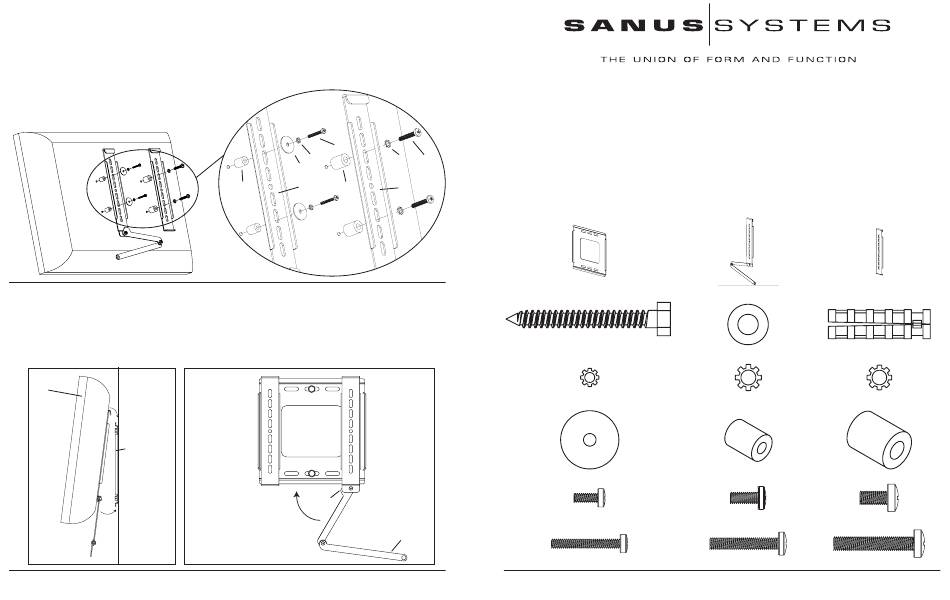

Diagram 4
Step 5: Hang television on the Wall Plate
Warning: Some televisions may require 2 people to lift! Sanus is not responsible for personal injury or product damage.
First hook the Monitor Brackets (b,c) over the top of the Wall Plate (a), then let the bottom of the Monitor Brackets rotate in under the
bottom of the Wall Plate as shown in Diagram 5a. Lock the television to the Wall Plate by moving the handle upward so the tab on the
handle goes behind the bottom of the Wall Plate as shown in Diagram 5b. Fold the handle extension up so that it hides behind the televi-
sion.
Diagram 5a
TV
a
wall
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 10.04.04
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Detailed View
p,q
g,h i
j
k b l c
Diagram 5b
tab
extension handle
Thank you for choosing a Sanus Systems Vision Mount wall mount. The VM300 is designed to mount up to 40" LCD flat panel televi-
sions weighing up to 80 lb to a vertical wall. It will allow the television to be just .5" from of the wall.
Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified
contractor or contact Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there are no missing or defective
parts. Our customer service representatives can quickly assist you with installation questions and missing or damaged parts. Replace-
ment parts for products purchased through authorized dealers will be shipped directly to you. Never use defective parts. Improper instal-
lation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus Systems.
r
Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. Please call
Sanus Systems before returning products to the point of purchase.
Required Tools: Drill, 3/16" drill bit, (1/2" masonry bit for brick, concrete, or concrete block installations), wrench set, philips screw driver
Supplied Parts and Hardware: Some parts not shown as actual size*
(1) Wall Plate - a*
(3) Lag Bolts - d
(4) M4 Lock Washer - g
(4) M4/M5 Washer - j
(4) M4 x 10mm Monitor Bolt - m
(4) M4 x 30mm Monitor Bolt - p
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Assembly Instructions for Model VM300
(1) Locking Monitor Bracket - b*
(3) Lag Bolt Washer - e
(4) M5 Lock Washer - h
(4) M4/M5 Spacer - k
(4) M5 x 12mm Monitor Bolt - n
(4) M5 x 30mm Monitor Bolt - q
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 10.04.04
(1) Monitor Bracket - c*
(3) Concrete Anchor - f
(4) M6 Lock Washer - i
(4) M6 Spacer - l
(4) M6 x 12mm Monitor Bolt - o
(4) M6 x 35mm Monitor Bolt - r
