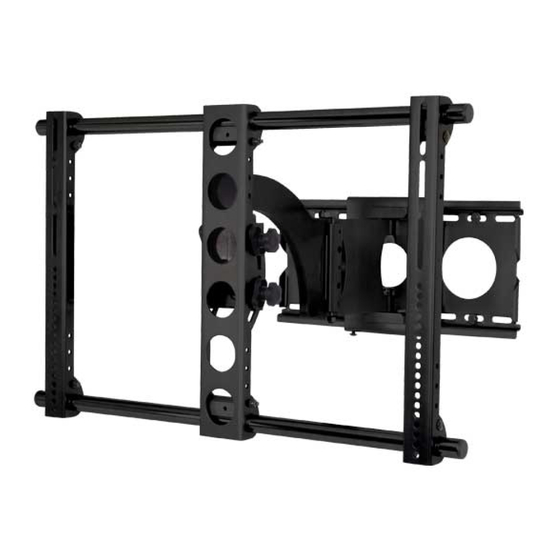

Thank you for choosing the Sanus VMAA18 wall mount. The Sanus VMAA18 wall mount is
designed to support a monitor sized up to 50 in. (127cm) and weighing up to 59 kg (130
lbs). The mount is adjustable; it will tilt +5° to -15°, swivel to ±90°, and roll ±6.°
This product contains small items that could be a choking hazard if swallowed.
Keep these items away from young children!
This product is designed for use in wood stud walls only! The wall must be capable of
supporting up to five times the weight of the monitor and mount combined. If you
have any doubts about the ability of the wall to support the monitor, contact Sanus
Customer Service, or a qualified contractor.
Do not use this product for any purpose not explicitly specified by Sanus Systems.
Improper installation or use may cause personal injury and/or property damage. If
you do not understand these instructions, or if you have doubts about the safety
of the installation, contact Sanus Customer Service. Sanus is not liable for injury or
damage caused by incorrect installation or use.
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA
US Customer Service: 1-800-359-5520 • info@sanus.com • www.sanus.com
VMAA18
(6901-100016 <04>)
WARNING
CAUTION
CAUTION
©2008 Milestone AV Technologies
