9.4 RS-232 Serial Port
The device supports outputting data via RS-232 serial port, and you can set serial port
communication via the client software. Refer to the user manual of the SCMVS client
software for details.
The supplied 17-pin cable has a RS-232 serial port. Refer to the figure and table below for
pin definitions.

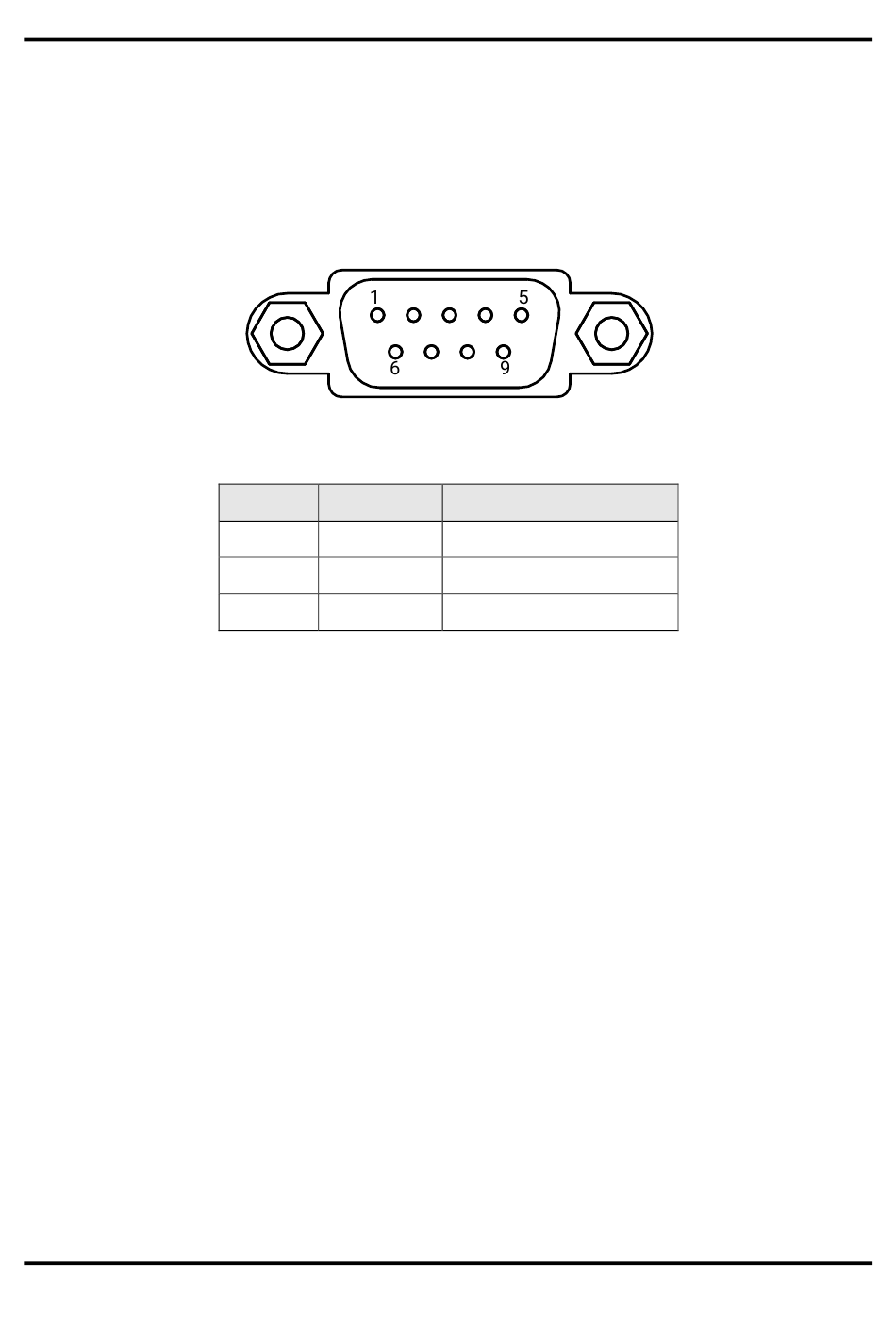

Figure 9-13 Serial Port Connector
Table 9-4 Pin Definitions
Pin No. Name
2 TX
3 RX
5 GND
Description
Transmits data
Receives data
Signal ground
