SC2000E Series Vision Sensor Quick Start Guide
9.3.1 Input Wiring
Note
Input signal wiring may differ by external device types.
PNP Device
If you use the pull-down resistor of the supplied IO box, the wiring is shown below.

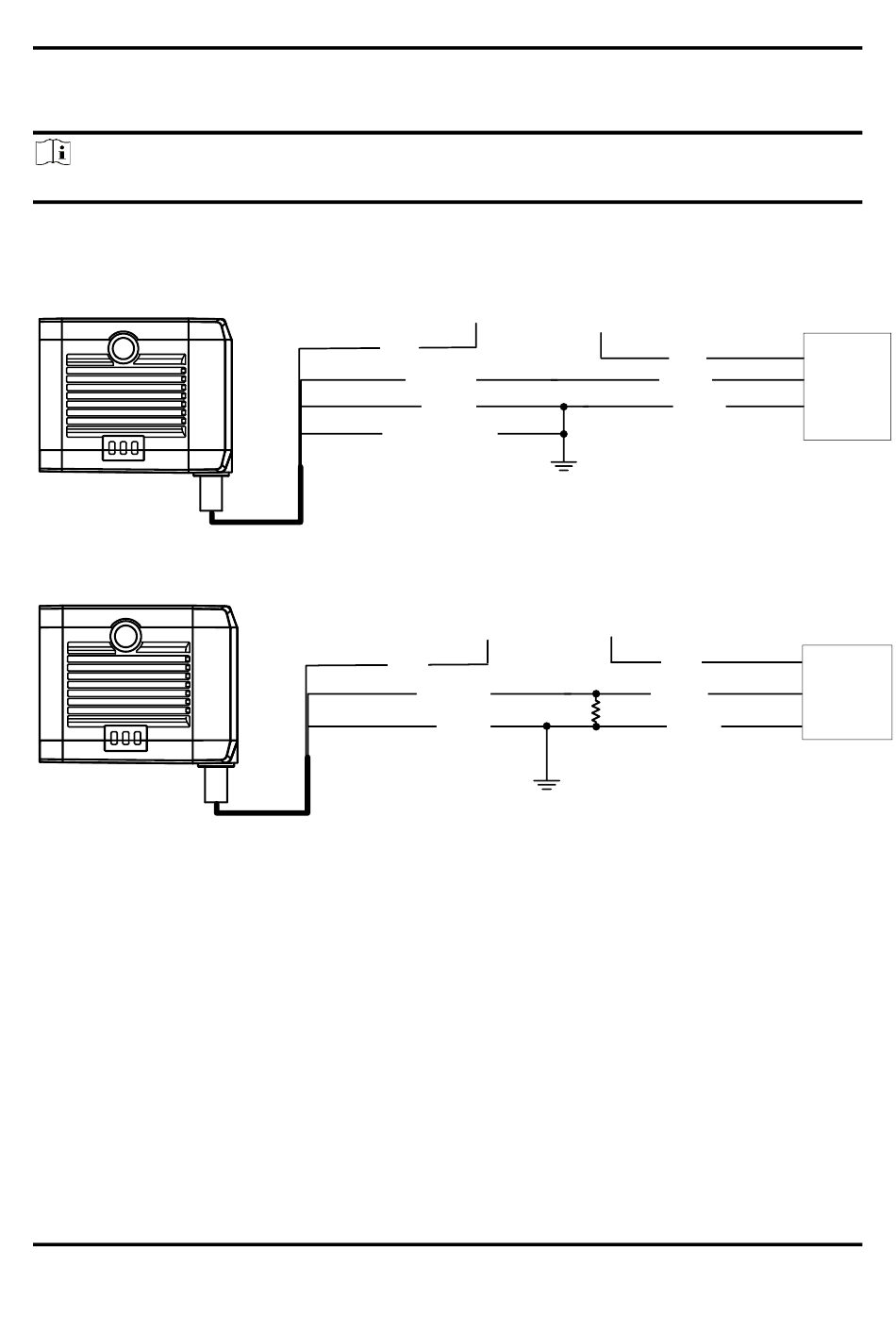

Figure 9-5 Input Signal Connecting to PNP Device (Pull-Down Resistor of IO Box Used)
If you use external pull-down resistor, it is recommended to use 1 KΩ pull-down resistor.
Figure 9-6 Input Signal Connecting to PNP Device (External Pull-Down Resistor Used)
NPN Device
If the VCC of NPN device is 12 VDC or 24 VDC, and the pull-up resistor of the supplied IO
box is used.
PWR
Device Power
Input Signal
Device Power Ground
Pull-Down Resistor
PWR
Device Power
Input Signal
Device Power
Ground
22
VCC
PNP Device Power
Signal Line
PNP Power
Ground
GND of PWR and VCC
VCC
PNP Device
Power
Signal Line
PNP Power
Ground
GND of PWR and VCC
PNP
Device
PNP
Device
