SC2000E Series Vision Sensor Quick Start Guide
No. Signal
11 GND Line 0/1/2/3-
12 -- --
13 -- --
14 MDI0- --
15 MDI1+ --
16 GPIO0 Line 0+
17 GPIO1 Line 1+
4.2 17-Pin M12 Cable
You should use the supplied 17-pin M12 cable to wire the device.
● The RJ45 connector corresponds to 6th, 7th, 14th, and 15th pins of the 17-pin interface.
● The DB9 serial port connector corresponds to 4th and 5th pins of the device's 17-pin
interface.
● The open line corresponds to 3rd, 12th, and 13th pins of the device's 17-pin interface.
Caution
The open lines of the supplied 17-pin cable cannot be wired with the SC2000E series
device.
● The 8-pin connector corresponds to other pins of the device's 17-pin interface. You can
wire according to the actual demands.
I/O Signal
Source
Direct
negative
--
--
Fast Ethernet signal MDI0-
Fast Ethernet signal MDI1+
Bi-directional I/O, and it is the
trigger by default.
Bi-directional I/O, and it is used to
switch projects by default.

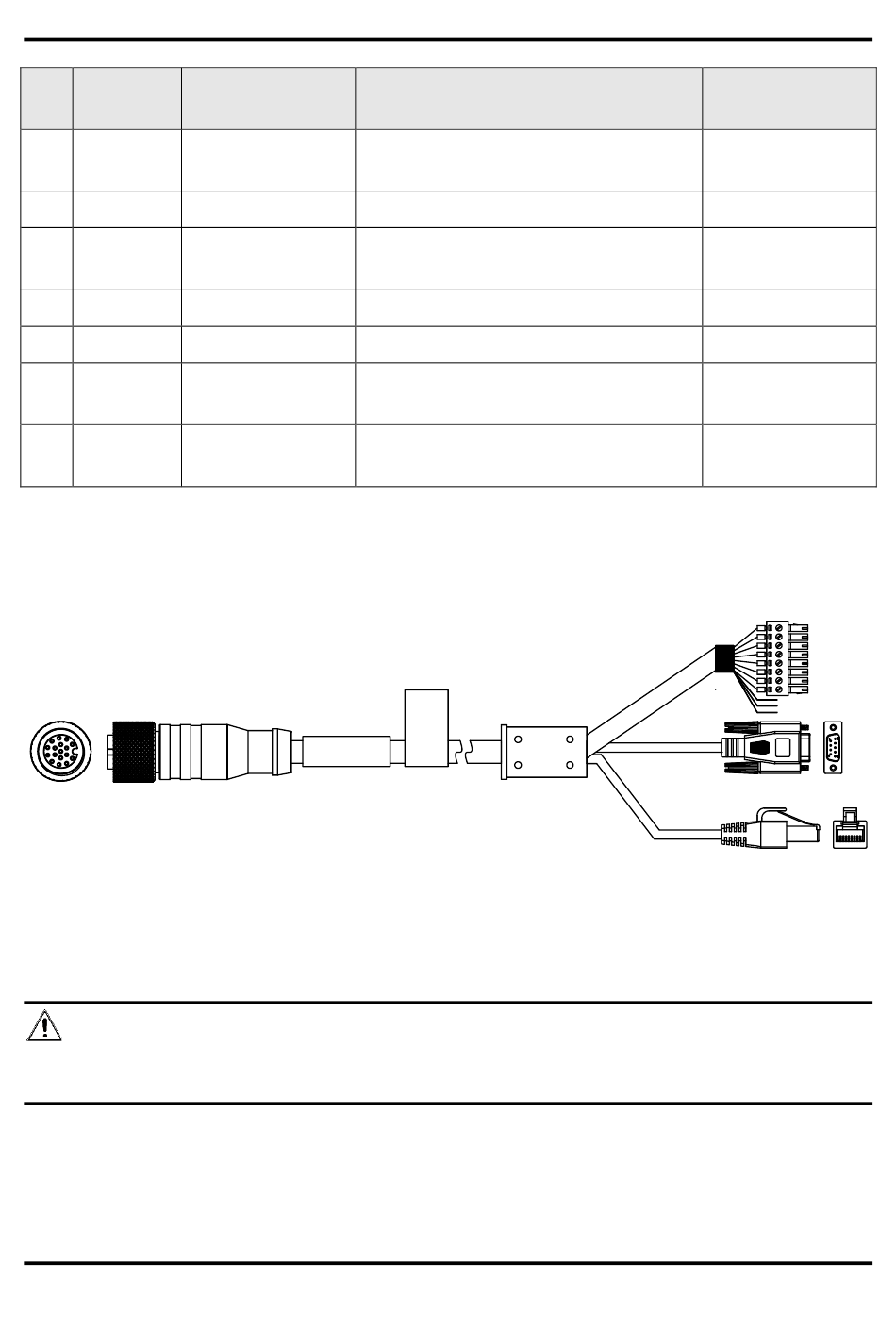

Figure 4-2 17-Pin M12 Cable (RJ45 Connector)
Description
current power
8
Supplied Cable
supply
8-pin connector
Pink open cable
Purple open
cable
RJ45 connector
RJ45 connector
8-pin connector
8-pin connector
