SC2000E Series Vision Sensor Quick Start Guide
Chapter 8 Client Layout and Operation Flow
8.1 Main Window Introduction
After logging in to the client software, you can see the main window as shown below.
Note
● The specific interfaces of the client software may differ by its versions.
● The client software loads and runs previous projects after logging in. If there is no
project, the client software will create and run a new project.
No. Name
1 Menu Bar
Project Status
2
Display Area
Tool Status
3
Display Area

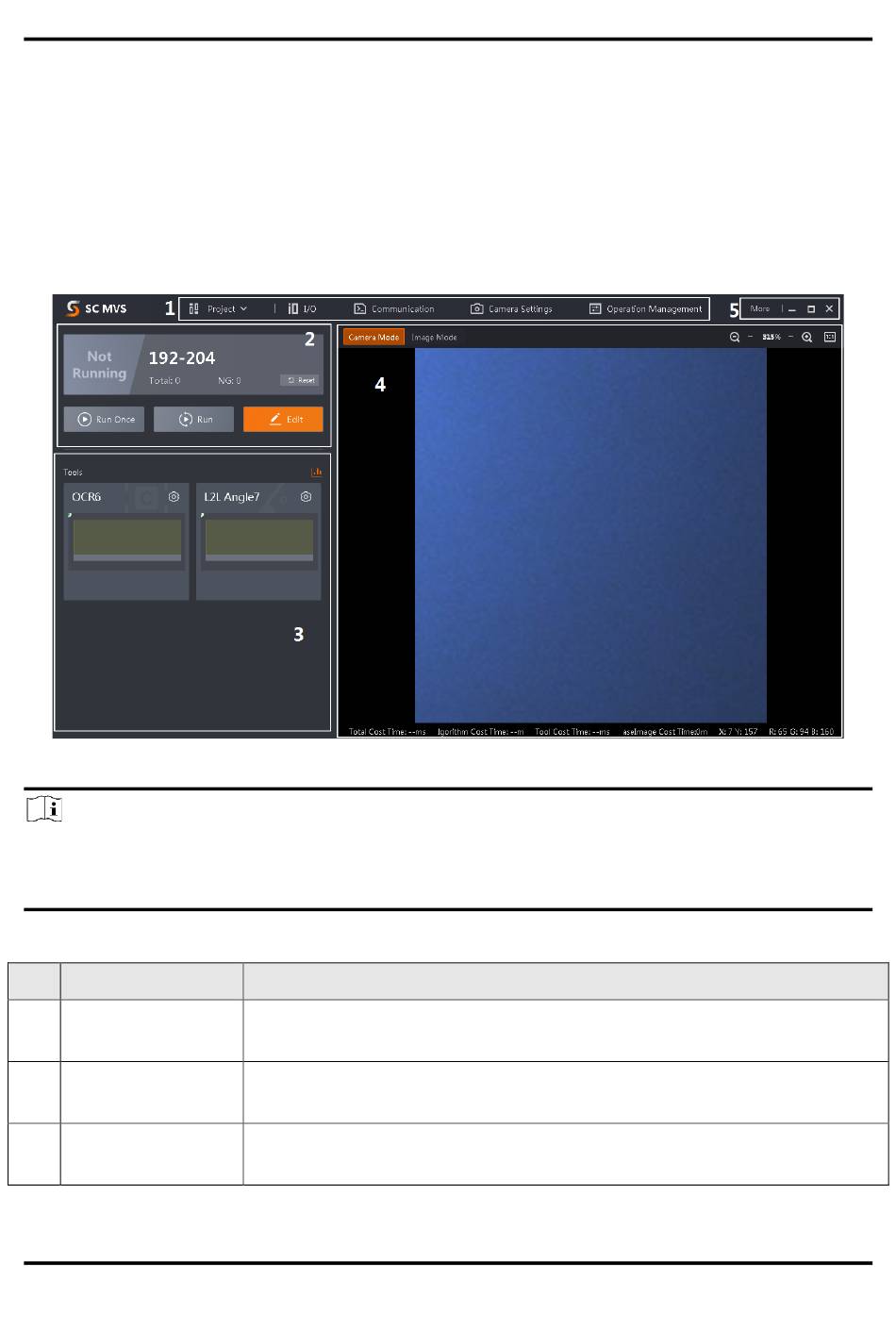

Figure 8-1 Main Window
Table 8-1 Main Window Description
The menu bar includes project, I/O settings, communication
settings, camera settings, and operation management.
This area displays operation results of current projects in real time.
You can run, stop or edit projects here.
This area displays operation results of vision tools loaded in projects
in real time. You can edit various parameters of tools here.
Description
