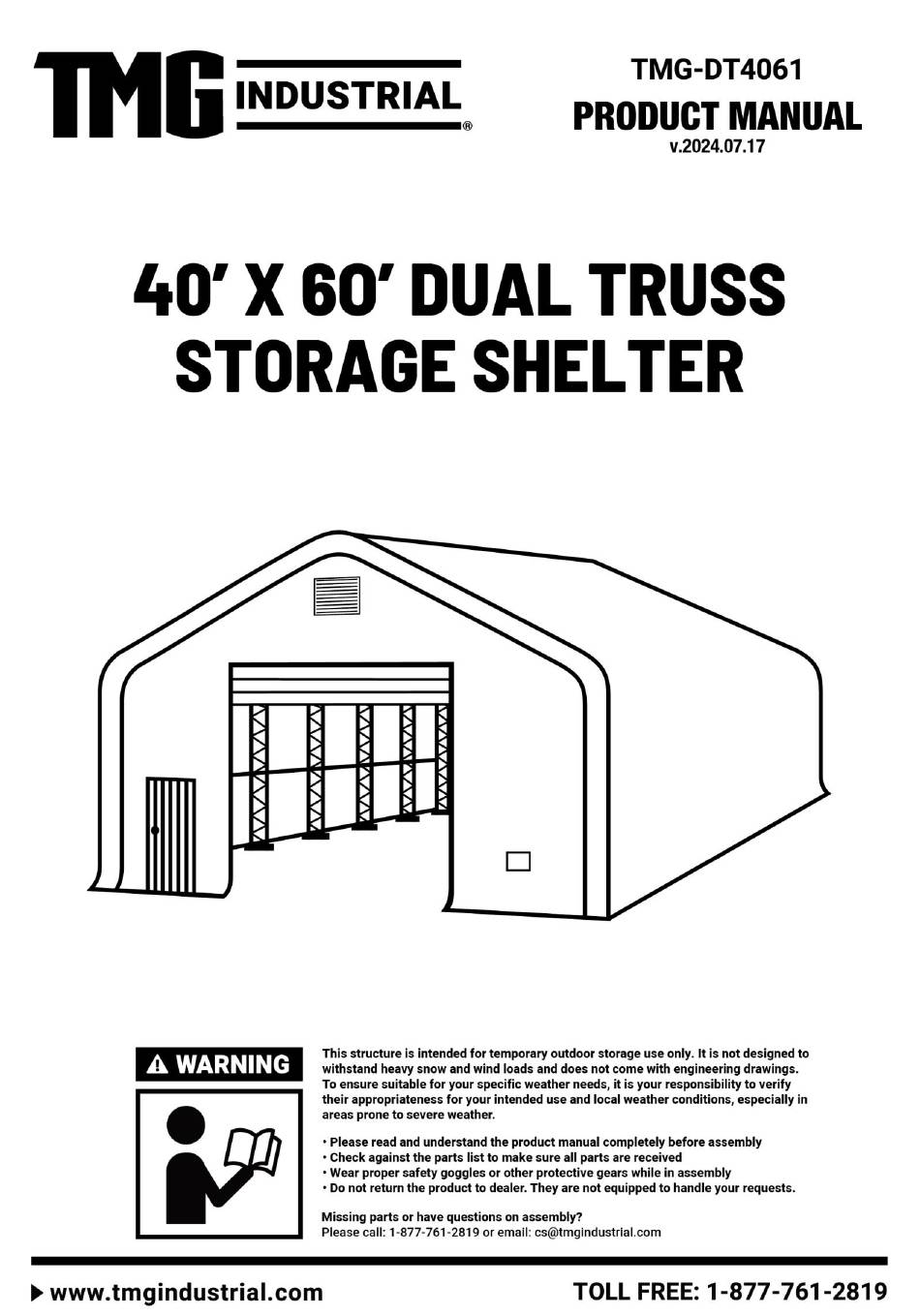

TMG -DT4061 Product Manual

40' x 60' dual truss storage shelter
Hide thumbs

Advertisement

Quick Links

Download this manual
0/30
TOLL FREE:1-877-761-2819
►www.tmgindustrial.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-DT4061 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-DT4061

Summary of Contents for TMG TMG-DT4061

  • Page 1 0/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Assembly size : W12.2 x L18 x H6.4 (m) / 40 x 59.1 x 21 (ft)  Outside width : 12.2 m / 40ft, inside width : 11.4 m / 37.4ft, length : 18 m / 59 ft ...
  • Page 3 The layout of foundation(two). • Note: the ground anchor is installed on the cement block. 2/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 4 Baseplate layout. • PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited t o : • Safety helmets, protective eyewear, and clothing. •...
  • Page 5 It is recommended to tape or add foam/rubber on the frame where joints connect and where it touches the cover. This will help extend the life span of the cover. Read the following item list carefully and count the number of items to ensure that all parts are included prior to setup. FRAME STRUCTURE DIAGRAM.

  • Page 6: Installation Steps

    Be aware of the surrounding area. Do not set up the building near snowdrifts, open flames or exposed electrical wires. Do not keep heat sources near the fabric cover. Keep the building surroundings clear at all times. Check the parts list below to make sure all parts are received prior to assembly. TMG-DT4061 PART LIST GRAPHICAL DESCRIPTION...
  • Page 7 Sidewall tube L2758mm (right for rear truss） Roof purl in L3040mm (horizontal tube) Base plate for front and rear L520xW260mm truss left corners Base plate for front and rear L520xW260mm truss right corners Left base plate of front and rear L200xW150mm door frame Right base plate of front and rear...
  • Page 8 Front and rear vertical door L2255mm rail(right side lower part) Rear vertical door rail L2190mm (left side upper part) Rear vertical door rail L2190mm (right side upper part) Front door cross tubes L1664mm (left and right) Front door upper crossing tubes L1513mm Front door lower crossing tubes L1639mm...
  • Page 9 Tarp cover tension tubes on both L1993mm sides Tarp cover tension tubes on both sides (shorter tube, can be on L700mm either end) Front roll up door dropping tubes L2355mm (to connect #16A) Front roll up door dropping tubes L2353mm (to connect #16) Rear roll up door dropping tubes L3060mm...
  • Page 10 Cable connection plate L91mm pressing plate L2000mm Pressing plate L1000mm Roll up door hand winch 1200lb Wire rope for front door hand φ4xL15m winch Wire rope for rear door hand φ4xL14.2m winch Left pulley system for front and L149mm rear doors Right pulley system for front and L149mm rear doors...
  • Page 11 Hex bolt and nuts M10x80mm Tension ropes φ8xL160m (tie to front and back doors) bundle L21.12xW18.62 Roof fabric tarp cover Front truss fabric tarp panel L12.2xW6.55m Front roll up door fabric tarp L4.82xW4.56m panel L12200xW6556 Rear truss fabric tarp panel Rear roll up door fabric tarp panel L5960xW4530m Front and rear fabric tarp secure...
  • Page 12 STEP 2 : BASEPLATE POSITIONING AND INSTALLATION. PART PART 11/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 13 STEP 3 : INSTALL THE FRONT TRUSS. PART 12/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 14 STEP 4 : INSTALL THE REAR TRUSS. PART 13/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 15 STEP 5 : INSTALL INTERMEDIATE TRUSS. PART 32x5 14/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 16 STEP 6 : WRAP (#38) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PART 15/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 17 STEP 7 : INSTALL THE FRONT TRUSS. PART 16/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 18 STEP 8 : PUT UP THE 2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND RUSS WITH BOLTS. PART 17/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 19 STEP 9 : INSTALL ALL OTHER TRUSSES. (FROM 3RD TRUSS TO 7TH TRUSS) PART 18/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 20 STEP 10 : TENSION CABLE INSTALLATION. PART 19/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 21 STEP 11: FRONT TRUSSES TO COMPLETE. PART PART 20/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 22 STEP 12 : TRUSS AFTER COMPLETION. PART PART 21/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 23 STEP 13 : FRONT AND REAR SMALL SIDE DOOR INSTALLATION. PART 22/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 24 STEP 14 : FRONT TRUSS FABRIC PANEL INSTALLATION. PART 23/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 25 STEP 15 : REAR TRUSS FABRIC PANEL INSTALLATION. PART 24/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 26 STEP 16 : INSTALL THE FRONT DOOR METAL STRIP. (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME) PART 52x2 25/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 27 STEP 17 : INSTALL THE FRONT MECHANICAL ROLLING SHUTTER DOOR. PART 26/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 28 STEP 18 : INSTALL THE REAR MECHANICAL ROLLING SHUTTER DOOR. PART 27/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 29 STEP 19 : INSTALL ROOF COVER. PART 28/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 30 STEP 20 : TOP CLOTH TENSIONING. PART PART 29/30 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...

  • Page 31: After The Installation

    STEP 21 : TIGHTEN ROOF COVER ON FRONT AND REAR TRUSS FRAMES. The roof cover must be stretched and tied to the front and rear truss by rope #34going through flap grommets  on the cover. Start from the top center of the truss and go toward both side on each end. Add or cut the rope as needed.
