TMG -DT3061 Product Manual

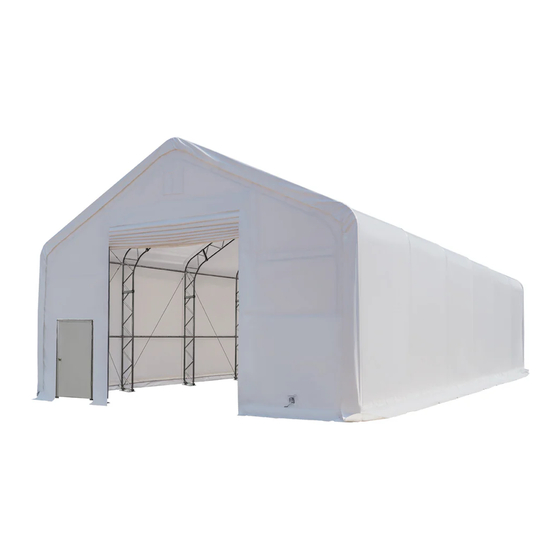

30' x 60' dual truss storage shelter
Hide thumbs Also See for TMG-DT3061:

Advertisement

Quick Links

Download this manual
0/23
TOLL FREE:1-877-761-2819
►www.tmgindustrial.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-DT3061 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-DT3061

Summary of Contents for TMG TMG-DT3061

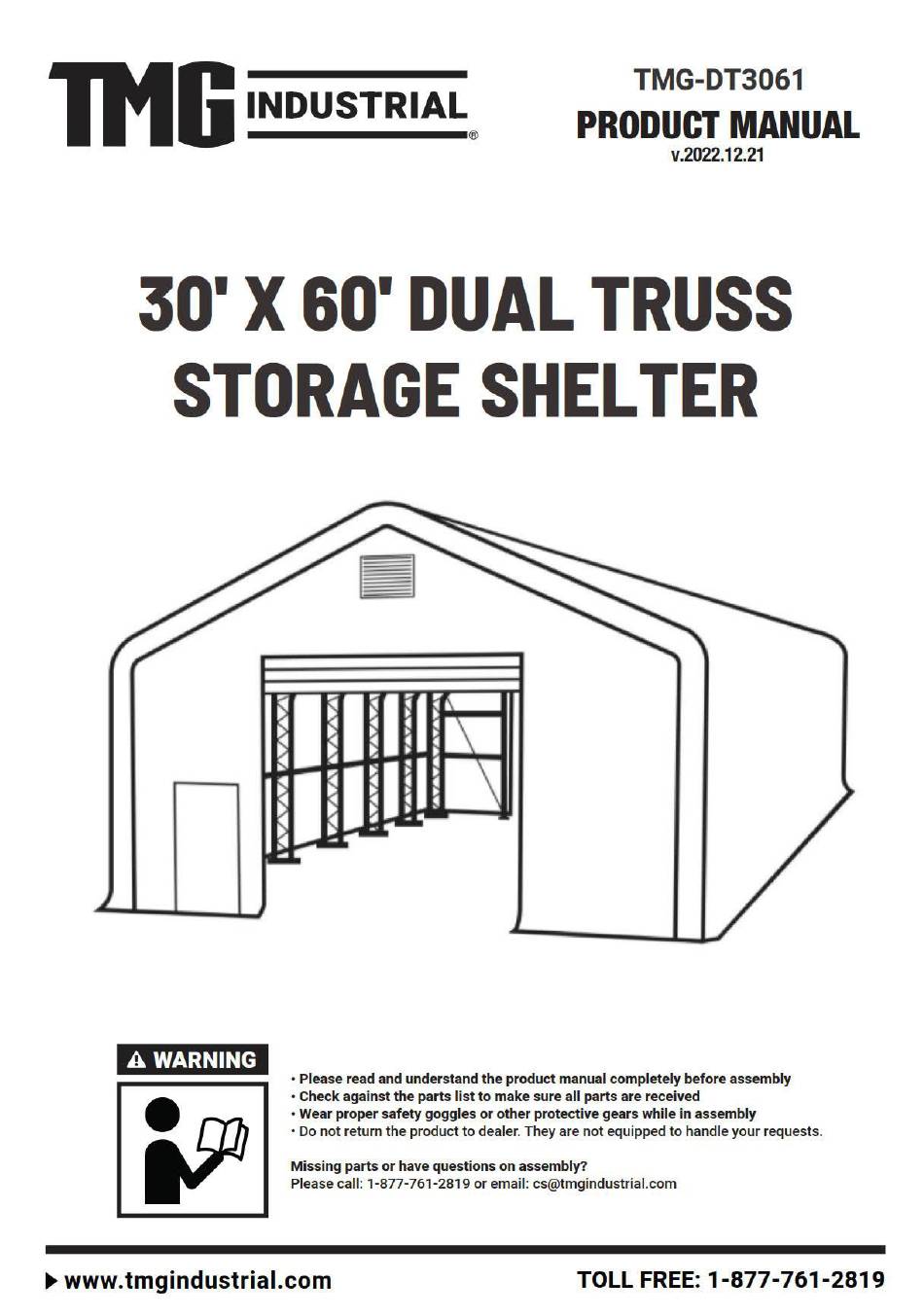

  • Page 1 0/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS :  Assembly size : W9.15 x L18 x H6 (m) / 30 x 59 x 19.7 (ft)  Ridge height : 6m / 19.7 ft  Peak clearance : 5.4m / 17.7 ft  Front and back door : 4.27 x 3.96 (m) / 14 x 13 (ft) ...
  • Page 3 PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited t o : • Safety helmets, protective eyewear, and clothing •...
  • Page 4 FRAME STRUCTURE DIAGRAM. 3/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 5 TMG-DT3061 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube L2570mm (for 5 middle trusses ) Peak arch tube L2570mm (for front and rear truss) Upper rafter tube L2921mm (for middle trusses) Upper rafter tube L2921mm (for front and rear truss)
  • Page 6 Right baseplate of front and W150xL200mm rear door frame W260xL480mm Baseplates for middle truss Ratchets φ16x150mm Expansion bolts Ceiling cross bar L2083mm (front and rear truss) Ceiling cross bar L2233mm (front and rear truss) Front and rear vertical door L1984mm rail (left side upper part) Front and rear vertical door...
  • Page 7 Top cover tension tube L700mm Front and rear roll up door L2195mm dropping tubes (to connect #16) Front and rear roll up door L2192mm dropping tubes (to connect #15) Sidewall frame steel tension φ6xL4290mm cables Ridge steel tension cables φ6xL3070mm (front and rear trusses) Middle truss crossing steel φ6xL3990mm...
  • Page 8 Tapping screw #12x25mm Self locking bolt M10x70mm and nuts Strengthened bolt M12x30mm and nuts M10x50mm Hex bolt and nuts M10x70mm Hex bolt and nuts L160m Braided rope W18.4xL18.6m Roof fabric tarp cover Front and rear truss cover W6.2xL9.1m panel Front and rear roll up door W4.2xL4.6m cover panel Front and rear fabric tarp...
  • Page 9 STEP 1 : BASEPLATE POSITIONING AND INSTALLATION.  Installation diagram of expansion bolt. PARTS PARTS PART PART CODE CODE 8/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 10 STEP 2 : ASSEMBLE ALL TRUSSES.  Front and rear trusses. PARTS PARTS PART PART CODE CODE 24x2 9/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 11  Middle trusses. (5 trusses) PARTS PARTS PART PART CODE CODE 24x5 10/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 12  Lay down all (7) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#38) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage. PARTS PART CODE...
  • Page 13 STEP 3 : PUT UP THE FRONT TRUSS. (IT IS SUGGESTED TO USE CRANE FOR HOISTING) PARTS PART CODE 12/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 14 STEP 4 : PUT UP THE REST TRUSSES.  Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on each span before going to next truss . PARTS PARTS PART...
  • Page 15  Repeat above step to put up all other trusses (from 3rd to 7th truss), and connect all purlins. PARTS PARTS PART PART CODE CODE 14/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 16  Tension cable installation . All cables are diagonally installed on each side of the interval. PARTS PARTS PART PART CODE CODE 15/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 17 STEP 5 : FRONT AND REAR TRUSSES TO COMPLETE. (2 TRUSSES) PARTS PARTS PART PART CODE CODE 28x2 16/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 18 STEP 6 : INSTALL FRONT AND REAR COVER PANELS.  Lift up (#34) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#32) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown.
  • Page 19  Install the front and rear door pressing plate. PARTS PART CODE 32x2 18/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 20 STEP 7 : INSTALL MECHANICAL ROLL UP DOORS.  Door curtain installation. PARTS PARTS PART PART CODE CODE 19/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 21  Front and rear door installation, please look at the door from inside.  The hand winch (#23) comes with a shorter cable, we call it cable (#B). PARTS PARTS PART PART CODE CODE 20/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 22 STEP 8 : INSTALL ROOF COVER.  NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions. PARTS PART CODE 21/23 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 23  After the cover is installed on the roof, insert the plastic pipe (#37) slowly into the grooves on two ends of the cover (not two sides), and then insert tension tubes (#14,#14A) in the groove on both sides of the cover bottom, Add the water plug (#25) on the 1st tube (#14) to protect the fabric while the tube is going through and add the water plug on the last tube also to keep water away.

  • Page 24: After The Installation

    AFTER THE INSTALLATION. Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
