Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!

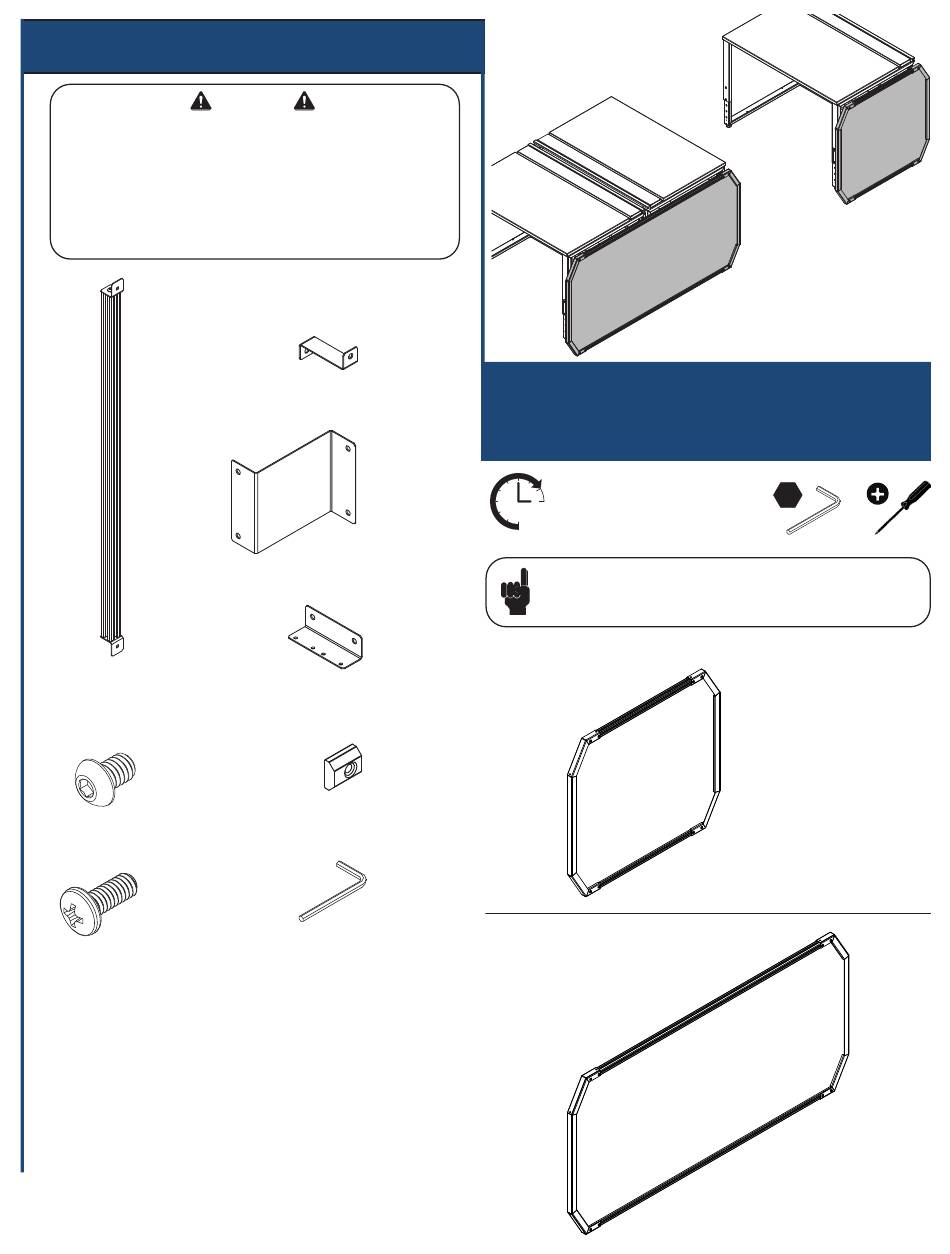

(2) Column
assembly
(16) 0190900
1/4-20 x 3/8"
Button hd hex
(2) 026064
1/4-20 x 5/8"
PHMS
(2) 0183493
Upper rail
bracket
(2) 0183494
Mid rail
20
bracket
min
Assembly tip: Do not tighten component fasteners completely
until all have been installed. Keeping them loose will help with
alignment between parts during assembly.
(2) 0183496
Lower rail
bracket
(12) 0199832
1/4-20 T-nut
(1) 025039
4mm Hex
wrench
Double End
Panel
End Panel Attachment Kit
for GG Desk
95050
Requires (1) of the following panels:
Single End Panel
Single End
Panel
4mm
Double End Panel
0199866 Page 1 of 5
Advertisement
Related Manuals for Spectrum Industries 95050
Summary of Contents for Spectrum Industries 95050
- Page 1 (2) 0183493 Panel Upper rail End Panel Attachment Kit bracket for GG Desk 95050 (2) 0183494 Mid rail bracket Assembly tip: Do not tighten component fasteners completely until all have been installed. Keeping them loose will help with alignment between parts during assembly.
- Page 2 Remove panel endcap Install T-nuts and replace endcap 1. Set the end panel down onto the floor as shown. 1. Place (2) T-nuts into each rail slot and slide them over. 2. Loosen the (4) hex screws just enough to slide the endcap 2.
- Page 3 Attach vertical columns to panel 1. Set the vertical columns onto the panel as shown with the column brackets aligned as shown. 2. Install a 1/4-20 x 3/8” button hd hex screw into each T-nut to secure the column, but don’t fully tighten yet. Each column should be able to slide left and right in the panel channels.
- Page 4 Remove leg cover screws 1. On the GG desk, remove the (2) existing screws securing the leg (2) 8-32 x 1/2” PH cover on the side the end panel will attach. These are 8-32 x 1/2” PH Thrd ctg screws Thrd ctg screws and will be used to secure the lower rail brackets in step 6.
- Page 5 Note: The double end panel will need to be detached if the back-to-back desks ever require moving. 1500 RIVER STREET, PO BOX 400, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2024 Spectrum Industries Inc., All rights reserved. 0199866 Page 5 of 5...
