Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(3) 0183491
Column
(16) 0190900
1/4-20 x 3/8"
Button hd hex
(2) 0101382
#14 x 7/8" PHSM
(6) 0183489
20
L-Bracket
min
Assembly tip: Do not tighten component fasteners completely
until all have been installed. Keeping them loose will help with
alignment between parts during assembly.
(4) 0201078
Champions
bracket
(10) 0199832
1/4-20 T-nut
(1) 025039
4mm Hex
wrench
Double End
Panel
End Panel Attachment Kit
for Champions Desk
95051
Requires (1) of the following panels:
Single End Panel
Single End
Panel
4mm
Double End Panel
0199867 Page 1 of 6
Advertisement
Related Manuals for Spectrum Industries 95051
Summary of Contents for Spectrum Industries 95051

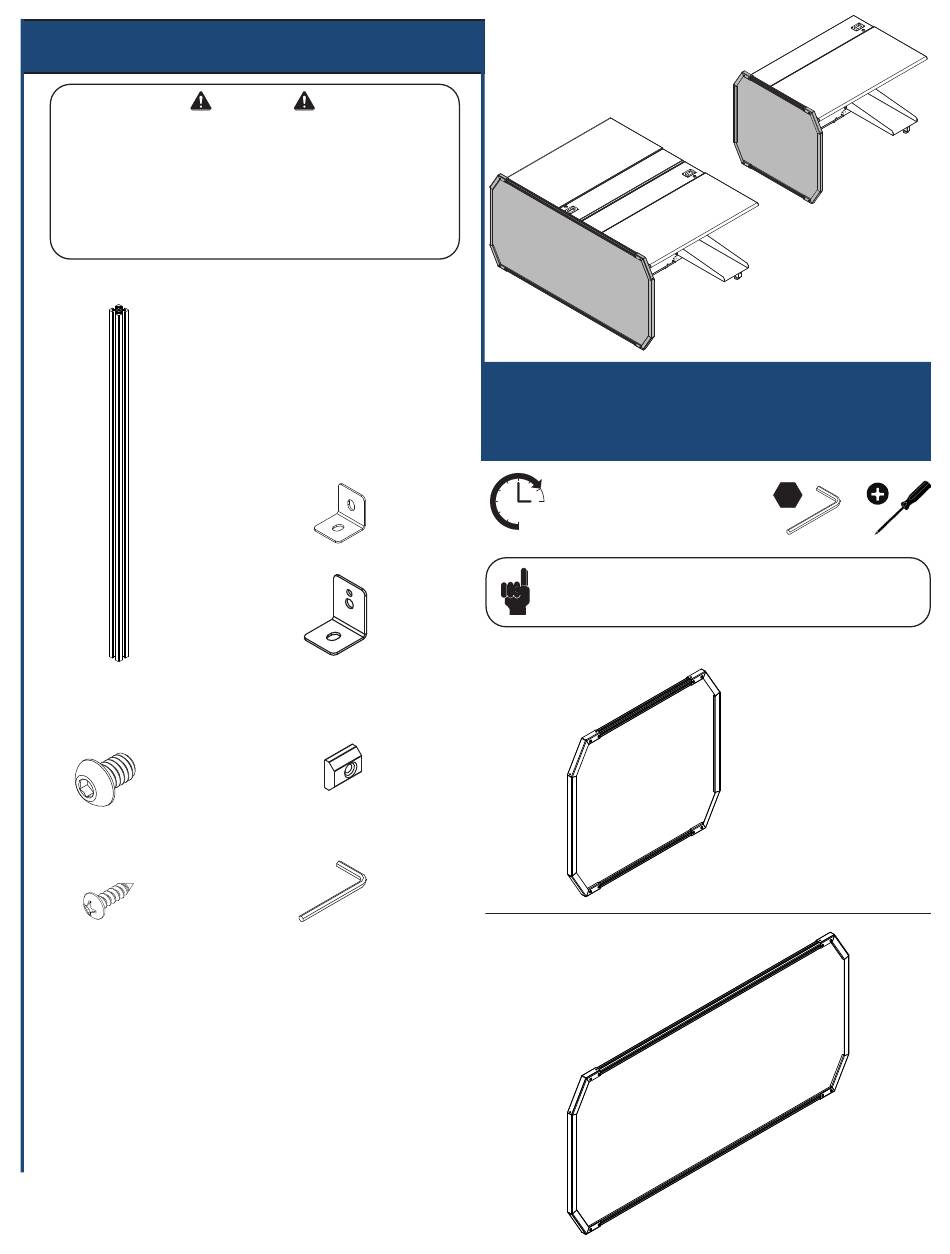

- Page 1 Thank you for purchasing Spectrum products! Double End Panel End Panel Attachment Kit for Champions Desk 95051 (6) 0183489 L-Bracket Assembly tip: Do not tighten component fasteners completely until all have been installed. Keeping them loose will help with alignment between parts during assembly.
