Spectrum Industries 95039 Assembly Instructions

Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
Note: The Undermount AV Channel is not compatible
with an installed 95036 Undermount Rack Cabinet.
(2) 0169161
End panel
(1) 0168023
Center panel for
60" Pivot Premier
(1) of the following center panels will be included
(1) 0169278
Center panel for
48" Pivot Premier
Parts Bag
(8) 0190174
(4) 059984
#8 x 3/8" PHSM
2" Grommet

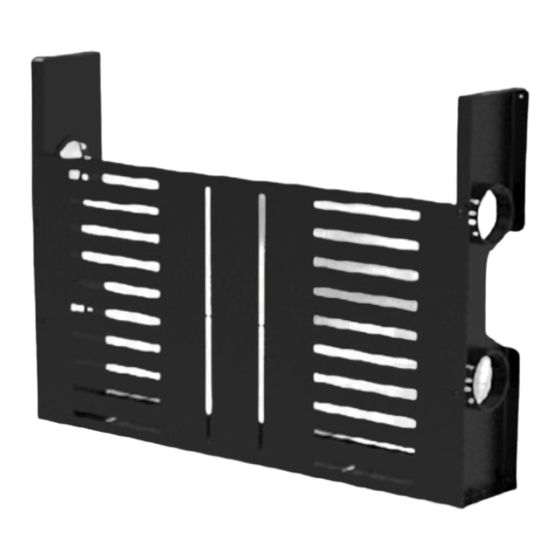

Undermount AV Channel
95039 - 36"W Pivot Premier
95038 - 48"W Pivot Premier
95037 - 60"W Pivot Premier
Assembly tip: Do not tighten component fasteners completely
until all have been installed. Keeping them loose will help with
alignment between parts during assembly.
(1) 0169299
Center panel for
36" Pivot Premier
(4) 0101382
#14 x 7/8" PHSM
0193134 Page 1 of 4
