Spectrum Industries 96501 Assembly Instructions

Blank overbridge panel

Advertisement

Assembly Instructions
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for purchasing Spectrum products!
Before you begin, please make sure all parts and proper quanti-
ties are included. Any parts damaged during shipment must be
reported within 15 days of receipt. To report information regarding
damages or if you have any questions, please call 1-800-235-1262.
(2) 039622
2" round grommet
(2) 0102063
1/4-20 x 35mm JC bolt

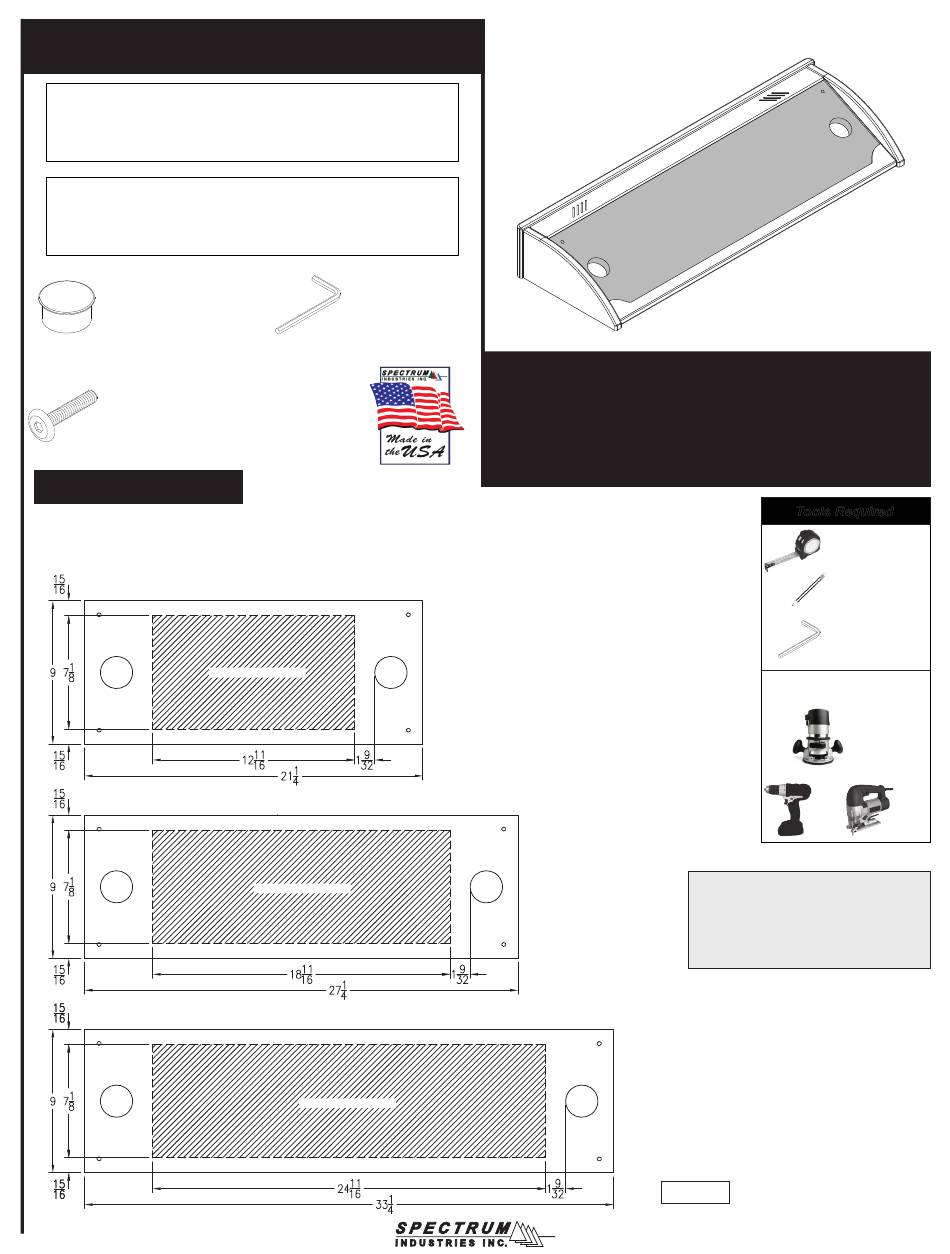

1. Layout cutout(s)

A. Before any cuts are made, determine the size of the cutout(s) needed on the overbridge panel.
B. The panel dimensions and recommended maximum cutout sizes are shown in Figure 1. Determine which panel you
have (small, medium, or large) and the preferred location on the panel for your controller (left, centered, or right).
max cutout area
(1) 025039
4mm Hex Wrench
max cutout area
max cutout area
Blank Overbridge Panel
#96501 - small
#96504 - medium
#96507 - large
Small panel
Medium panel
Tools Required
Suggested tools
to make cutouts
Drill
Note: The overbridge panel is
symmetrical. Rotating the panel 180°
and re-attaching to the overbridge will
place the cutout on the opposite side
of the overbridge if necessary.
Large panel
Figure 1
0113405 Page 1 of 2
Tape measure
Pencil
4mm Hex wrench
(included)
Router
(optional)
Jigsaw
