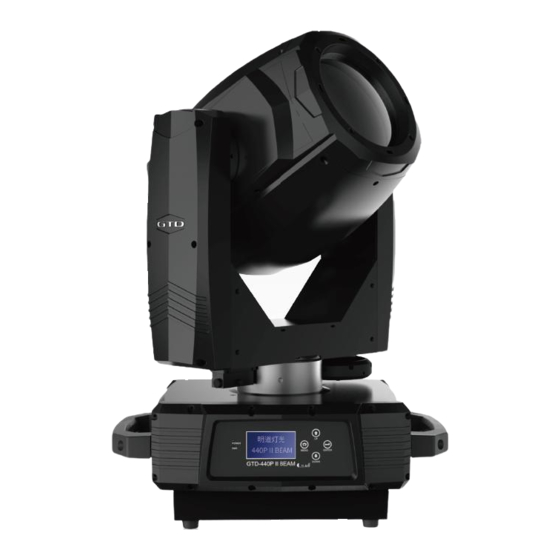

Moving Head
(beam-spot-wash)
GTD-440P II BSW
User's Manual
Guangzhou GTD Lighting Technology Co., Ltd.
Tel: +86-20-61808296
Fax: +86-20-61812282
www.gtd-lighting.com
http://

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 440P II BSW and is the answer not in the manual?

Questions and answers

Related Manuals for GTD 440P II BSW

Summary of Contents for GTD 440P II BSW

  • Page 1 Moving Head (beam-spot-wash) GTD-440P II BSW User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
  • Page 2 GTD-440P II BSW User Manual © 2018 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    GTD-440P II BSW User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Protection lock ....................................5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................6 Product introduction .................................. 6 Installation ....................................7 Clamps installation ..................................

  • Page 4: Safety Instructions

    GTD-440P II BSW User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety.  Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ...

  • Page 6: Packing And Shipping

    GTD-440P II BSW User Manual Packing and shipping Protection lock Pan locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. Unpacking Notes All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

  • Page 7: Accessories

    GTD-440P II BSW User Manual Accessories Item Unit Notes User Manual Clamps G-clamp with 1/4-turn fasteners, for Ø 42-52mm, Max. 200 kg ∅4*60cm 7*19 with hook, material: steel; Safety cable Three core waterproof signal 0.5m with three-pin card faucet(female) extension cable(Male) Three core waterproof signal 0.5m with three-pin card faucet(male)

  • Page 8: Installation

    GTD-440P II BSW User Manual Installation Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. Always remember to use the safety cable which goes through the mounting hole on the base.

  • Page 9: Lamp Fitting And Adjustment

    GTD-440P II BSW User Manual Lamp fitting and adjustment Disconnect the fixture from AC power. Allow the fixture to cool down for at least 15 minutes. Put the Tilt lock-catch in the horizontal position. Dismounting the lamp (see below): remove the top cover of the shell first, and then the bulb cooling fans. Press down the springy retainer by one hand and push up the lamp by the other (see below 1 and 2).

  • Page 10: Power/ Control Connection

    GTD-440P II BSW User Manual Power/ Control connection Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 11: Control Panel

    GTD-440P II BSW User Manual Control panel GTD-440P II BSW  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press UP or DOWN to view or select the function menu.

  • Page 12: Gobos

    GTD-440P II BSW User Manual Gobos  One rotating gobo wheel: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed  One fixed gobo wheel: 14 gobos + open, CW/CCW rotation, variable speed Rotating gobo wheel Fixed gobo wheel Colors ...
  • Page 13 GTD-440P II BSW User Manual CMY+CTO color temperature correction wheel...

  • Page 14: Menu Structure

    GTD-440P II BSW User Manual Menu structure 440P II BSW – Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Run setting Address Setting Address: 001~ XXX Setting the DMX address Value Display Pan ……, All, Off...
  • Page 15 GTD-440P II BSW User Manual Fahrenheit Value Default Pan…… Pan =XXX The default value Wireless Dev Wireless Off Wireless off Wireless On Wireless on Wireless Trans. Wireless transfer DMX data to another Wireless Reset Wireless reset Restore Default Restore/Cancel Restore to default value...

  • Page 16: Dmx Protocol

    GTD-440P II BSW User Manual DMX protocol 440P II BSW - DMX Protocol Revision: A Valid from firmware version: 1.0 DMX protocol - Standard [19 channels] Revision: A Valid from firmware version: 1.0 Name DMX value DMX percentage Function Default...
  • Page 17 GTD-440P II BSW User Manual 19.6% 23.1% Color 5 23.5% 27.1% Color 6 27.5% 31.0% Color 7 31.4% 34.9% Color 8 35.3% 38.8% Color 9 39.2% 42.7% Color 10 43.1% 46.7% Color 11 47.1% 49.8% Color 12 50.2% 73.3% Color1...
  • Page 18 GTD-440P II BSW User Manual 16.9% 18.8% Gobo 2 shake 19.2% 21.2% Gobo 3 shake 21.6% 23.5% Gobo 4 shake 23.9% 25.9% Gobo 5 shake 26.3% 28.2% Gobo 6 shake 28.6% 30.6% Gobo 7 shake 31.0% 32.9% Gobo 8 shake 33.3%...
  • Page 19 GTD-440P II BSW User Manual 30.6% 34.1% Gobo 4 shake 34.5% 38.0% Gobo 5 shake 38.4% 42.0% Gobo 6 shake 42.4% 45.9% Gobo 7 shake 46.3% 49.8% Gobo 8 shake 50.2% 73.3% Gobo wheel continous rotation CW from slow to fast 73.7%...
  • Page 20 GTD-440P II BSW User Manual slow to fast Prism2 0.0% 12.2% 0(0%) 12.5% 100.0% Prism2 rotation 0.0% 49.8% Prism indexed 0(0%) 50.2% 73.3% Prism continous rotation CW from slow to fast 73.7% 76.5% Stop 76.9% 100.0% Prism continous rotation CCW from...
  • Page 21 GTD-440P II BSW User Manual after 5 seconds 39.2% 42.7% All strobe motor reset after 5 seconds 43.1% 46.7% Other motor reset after 5 seconds 47.1% 50.6% Built-in program 1 51.0% 54.5% Built-in program 2 54.9% 58.4% Built-in program 3 58.8%...
  • Page 22 GTD-440P II BSW User Manual Magenta 0.0% 100.0 White è Full magenta 0(0%) Yellow 0.0% 100.0 White è Full yellow 0(0%) CMY color macro 0.0% 5.9% CMY color macro off 0(0%) 6.3% 52.9% CMY synchronous color from slow to fast 53.3%...
  • Page 23 GTD-440P II BSW User Manual 4.3% 4.7% Gobo 2 5.1% 5.5% Gobo 3 5.9% 6.3% Gobo 4 6.7% 7.1% Gobo 5 7.5% 7.8% Gobo 6 8.2% 8.6% Gobo 7 9.0% 9.4% Gobo 8 9.8% 10.2% Gobo 9 10.6% 11.0% Gobo 10 11.4%...
  • Page 24 GTD-440P II BSW User Manual CCW from slow to fast Rotating gobo 0.0% 2.7% Open gobo 0(0%) wheel 3.1% 4.7% Gobo 1 5.1% 6.7% Gobo 2 7.1% 8.6% Gobo 3 9.0% 10.6% Gobo 4 11.0% 12.5% Gobo 5 12.9% 14.5% Gobo 6 14.9%...
  • Page 25 GTD-440P II BSW User Manual Prism1 0.0% 12.2% 0(0%) 12.5% 100.0 Prism1 rotation 0.0% 49.8% Prism indexed 0(0%) 50.2% 73.3% Prism continous rotation CW from slow to fast 73.7% 76.5% Stop 76.9% 100.0 Prism continous rotation CCW from slow to fast Prism2 0.0%...
  • Page 26 GTD-440P II BSW User Manual 31.4% 34.9% All color motor reset after 5 seconds 35.3% 38.8% All gobo motor reset after 5 seconds 39.2% 42.7% All strobe motor reset after 5 seconds 43.1% 46.7% Other motor reset after 5 seconds 47.1%...
  • Page 27 GTD-440P II BSW User Manual Intensity 0.0% 100.0% No light è Full light 0(0%) 65535 0.0% 100.0% Intensity fade, fine (LSB) Cyan 0.0% 100.0% White è Full cyan 0(0%) 65535 0.0% 100.0% Cyan fade, fine (LSB) Magenta 0.0% 100.0% White è Full magenta...
  • Page 28 GTD-440P II BSW User Manual 76.9% 100.0% Color1 continous rotation CCW from slow to fast Reserve 100.0% 100.0% Reserve 0(0%) Gobo wheel (static) 0.0% 3.1% Open gobo 0(0%) 3.5% 3.9% Gobo 1 4.3% 4.7% Gobo 2 5.1% 5.5% Gobo 3 5.9%...
  • Page 29 GTD-440P II BSW User Manual 45.1% 49.8% Gobo 14 shake 50.2% 73.3% Gobo wheel continous rotation CW from slow to fast 73.7% 76.5% Stop 76.9% 100.0% Gobo wheel continous rotation CCW from slow to fast Rotating gobo 0.0% 2.7% Open gobo...
  • Page 30 GTD-440P II BSW User Manual rotating/positionin 50.2% 73.3% Gobo continous rotation g gobo wheel 2 CW from slow to fast 73.7% 76.5% Stop 76.9% 100.0% Gobo continous rotation CCW from slow to fast 65535 0.0% 100.0% Gobo rotation/positioning, fine (LSB) Focus 0.0%...
  • Page 31 GTD-440P II BSW User Manual Scan speed 0.0% 100.0% Scan speed from fast to 0(0%) slow Special controls 0.0% 3.5% No function 0(0%) 3.9% 7.5% Open light after 5 seconds 7.8% 11.4% Close light after 5 seconds 11.8% 15.3% Color wheel half color switch 15.7%...

  • Page 32: Technical Specification

    GTD-440P II BSW User Manual Technical specification Optical  Light source: OSRAM SIRIUS HRI 440W VS60  Expected average lifetime: 1500 hours  Color temperature: 6700K  Beam angle: BEAM3°~15°/ SPOT5°~25°  Prism: 8 facet prism, CW/CCW rotation, variable speed ...
  • Page 33 GTD-440P II BSW User Manual  Pan/Tilt movement: 540˚/270˚  Strobe: 1-20Hz, synchronized, pulse effects  Dimmer: 0-100%, 16-bit, mechanical dimming Thermal  Operating range: 14˚F to 113˚F (-10˚C to +45˚C)  Startup range: 5˚F to 113˚F (-15˚C to +45˚C) ...

  • Page 34: Cleaning And Maintenance

    GTD-440P II BSW User Manual GTD-440P II BSW (SPOT) Other features  Eco-friendly design: equipped with intelligent tracking system to decrease the power of lamp source.  Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface without power connection ...

  • Page 35: Troubleshooting

    GTD-440P II BSW User Manual happens, please check that the fans are not blocked, and clean them if they are dirty. Check whether the fans are operational. If not, call a qualified technician. Troubleshoot and correct the problem before switching on the fixture again.
  • Page 36 GTD-440P II BSW User Manual The ballast incorporate internal automatic-resetting thermal protection, which deactivates the ballast should it overheat. Normal operation resumes once the ballast has cooled Overheat ballast resulting in premature failure sufficiently. Burned-out failing lamps, high or damaged ballast.

  • Page 37: System Wiring Diagram

    GTD-440P II BSW User Manual System wiring diagram...

  • Page 38: Spare Parts List

    GTD-440P II BSW User Manual Spare parts list Item Notes 1412051004A EDS800-38528P Switching Power Supply 1412010019A PT SIRIUS 440W VS60 ENOSRAM Electronic Ballast 440P ⅡBSW-101A10 SDI0208D-5 5809010312A Display board 440P ⅡBSW-201A10 SCR0001C-2 5809010313A Motor drive board 1C 440P ⅡBSW-501A10 SCR0400B...
  • Page 39 Notes: P/N: 1502011089A Time: November 9, 2018...
