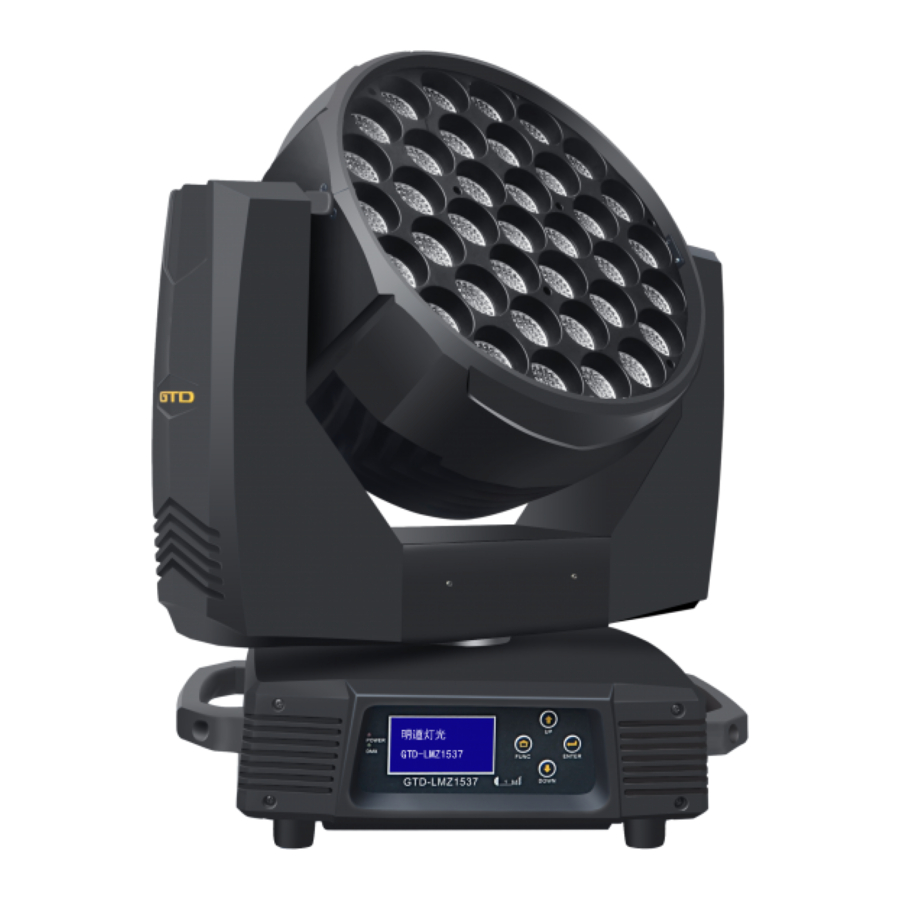

- Page 1 LED Moving Head GTD-LMZ1537 User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
- Page 2 © 2017 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
GTD-LMZ1537 User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Protection lock ....................................5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................6 Product introduction .................................. 6 Installation ....................................7 Clamps installation ..................................7 Device installation .................................. -
Page 4: Safety Instructions
GTD-LMZ1537 User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ... -
Page 6: Packing And Shipping
GTD-LMZ1537 User Manual Packing and shipping Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 3 lock positions are located on left and right side of the Tilt with the third one in the center. -
Page 7: Accessories
GTD-LMZ1537 User Manual Accessories Item Unit Notes User Manual Clamps G-clamp with 1/4-turn fasteners, for Ø 42-52mm, Max. 200 kg Power cable Notes Accessories are subject to change without any prior written notice. Product introduction Zoom lens Radiator Driver board cooling fan... -
Page 8: Installation
GTD-LMZ1537 User Manual Installation Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. Always remember to use the safety cable which goes through the mounting hole on the base. -
Page 9: Power/ Control Connection
GTD-LMZ1537 User Manual Power/ Control connection Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually. -
Page 10: Control Panel
GTD-LMZ1537 User Manual Control panel The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu. Press UP or DOWN to view or select the function menu. ... -
Page 11: Menu Structure
GTD-LMZ1537 User Manual Menu structure LMZ1537 – Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Run setting Address Setting Address: 001~ XXX Setting the DMX address Value Display Pan ……, All, Off... - Page 12 GTD-LMZ1537 User Manual Level 1 Level 2 Level 3 Level 4 Info Reset System Reset System reset Scan Reset Pan and tilt motor reset Enlargement Reset Enlargement motor reset Channel Adjust Test Mode Pan…… Every channel test Manual Mode Pan = XXX...
-
Page 13: Dmx Protocol
GTD-LMZ1537 User Manual DMX protocol LMZ1537 - DMX Protocol Revision: A Valid from firmware version: 1.0 DMX protocol - Standard [25 channels] Standard Default Name DMX value DMX percentage Function (25ch) DMX Value 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8%... - Page 14 GTD-LMZ1537 User Manual Standard Default Name DMX value DMX percentage Function (25ch) DMX Value 65535 0.0% 100.0% Red 4, fine (LSB) 0.0% 100.0% No light → Full green 4 Green 4 0(0%) 65535 0.0% 100.0% Green 4, fine (LSB) 0.0% 100.0%...
- Page 15 GTD-LMZ1537 User Manual Standard Default Name DMX value DMX percentage Function (25ch) DMX Value 65535 0.0% 100.0% Zoom, fine (LSB) 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt 46(18.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan speed 0.0%...
- Page 16 GTD-LMZ1537 User Manual Basic Default Name DMX value DMX percentage Function (21ch) DMX Value 0.0% 100.0% No light → Full light Intensity 0(0%) 65535 0.0% 100.0% Intensity fade, fine (LSB) 0.0% 100.0% No light → Full total red 0(0%) Total Red 65535 0.0%...
- Page 17 GTD-LMZ1537 User Manual Basic Default Name DMX value DMX percentage Function (21ch) DMX Value 91.8% 95.7% 7000K 96.1% 100.0% 7200K 0.0% 100.0% Near → Far Zoom 0(0%) 65535 0.0% 100.0% Zoom, fine (LSB) 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0%...
- Page 18 GTD-LMZ1537 User Manual Extended Default Name DMX value DMX percentage Function (45ch) DMX Value 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open 0.0% 100.0% No light → Full light Intensity 0(0%) 65535 0.0% 100.0% Intensity fade, fine (LSB) 0.0%...
- Page 19 GTD-LMZ1537 User Manual Extended Default Name DMX value DMX percentage Function (45ch) DMX Value 15.7% 27.8% Rainbow scene 2 28.2% 40.4% Rainbow scene 3 40.8% 52.9% Rainbow scene 4 53.3% 65.5% Rainbow scene 5 65.9% 78.0% Rainbow scene 6 78.4% 90.6%...
-
Page 20: Technical Specification
GTD-LMZ1537 User Manual Extended Default Name DMX value DMX percentage Function (45ch) DMX Value 11.8% 15.3% No function 15.7% 19.2% No function 19.6% 23.1% No function 23.5% 27.1% Reset all motor after 5 seconds 27.5% 31.0% Scan motor reset after 5 seconds 31.4%... - Page 21 GTD-LMZ1537 User Manual Control and programming Control channels (DMX): 25/21/45 Protocol: DMX-512 Display: Graphic LCD backlit 16-bit control: Dimmer, pan/tilt Physical / Installation Weight: 24kg (52lbs.) IP rating: IP20 Material: Aluminum, steel, plastic ...
-
Page 22: Cleaning And Maintenance
GTD-LMZ1537 User Manual Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. -
Page 23: Troubleshooting
GTD-LMZ1537 User Manual If the lens is cracked or otherwise damaged, replace it immediately. If the LED lamp becomes damaged or deformed in any way it must be replaced. If the light from the LED lamp appears dim, this normally indicates that it is reaching the end of its life span and should be changed at once. -
Page 24: System Wiring Diagram
GTD-LMZ1537 User Manual System wiring diagram... -
Page 25: Spare Parts List
GTD-LMZ1537 User Manual Spare parts list Item Notes Display board 5809210052A LMZ1537-101A10 SDI0208B Scanning drive board 5809210218A LMZ1537-201B10 SCR0206A Drive board 5809210523A LMZ1537-301G10&302K10&303K10 LCR0208D Aluminum substrate 5802010038A LJB0220D Fuse 1414030004A 5*20 T6.3A 250V Switching Power Supply 1412050011A ESS650-5628P Appendix 1... - Page 26 GTD-LMZ1537 User Manual Notes: P/N: 1502011037B Time: November 24 , 2017...
