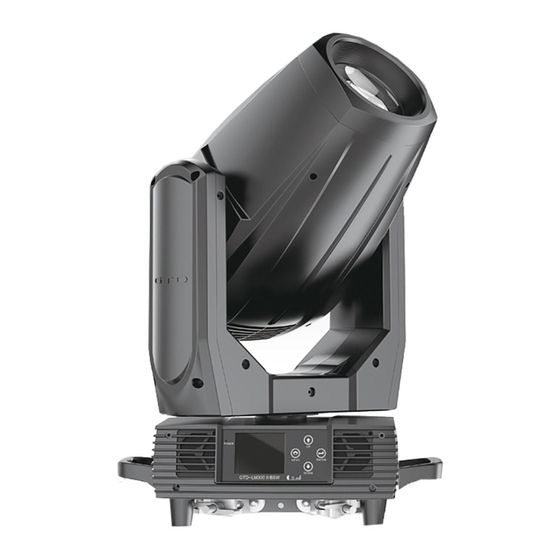

GTD -LM330 II BSW User Manual

Moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GTD-LM330 II BSW
Moving Head
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-LM330 II BSW and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-LM330 II BSW

Summary of Contents for GTD GTD-LM330 II BSW

  • Page 1 GTD-LM330 II BSW Moving Head User Manual...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................6 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified  technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Product Introductions

    2. Production instructions 2.1 Dimensions...

  • Page 7: Fixture Overview

    2.2 Fixture overview Head module Framing blade system CMY module Lamp-holder assembly Pan-tilt frame Base module 2.3 Accessories Item Unit Remark User Manual Clamps Hanging integrated folding lamp. Φ4*60cm 7*19 pc with hook Material：Steel Safety cable 3-pins signal line 1.5m*2.5mm² connect blue plug...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. The horizontal axis has 4 locking points and the vertical axis has 5 locking points. 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

  • Page 9: Packing After Use

    3.3 Packing after use Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the fixture for at least 15 minutes before packing. Lock pan and tilt. Flight case: Wrap the fixture in plastic bags. Gripping the handle and then place it in the flight case along with all the accessories carefully.

  • Page 10: Installation

    4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss which faces any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.

  • Page 11: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 12: Control Panel

    6. Control panel 6.1 Panel instruction  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press UP or DOWN to view or select the function menu. ...

  • Page 13: Technical Specification

    7. Technical specification  Optical LED 330W Light source: Expected average lifetime: 20000 h Color temperature correction: 2700K~6500K Lumens: 16000lm Zoom range：4°~43.6°Linear high speed zoom，the spot is uniform and consistent in any range CRI：Ra≥70(optional ≥90) Focus: with precision HD Glass lens, electronic linear focus clearly Prism: 1 four-prism Frost: 1-independent frost effect ...
  • Page 14 Material: Aluminum, copper, steel, plastic Mounting points: fixed folding lamp hook + attachment points for safety wire  Dynamic effects Pan/Tilt movement: 540˚/270˚，adopting a function which resets 32bit accurately and automatically Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously Dimmer: 0-100%, electronic linear dimming ...
  • Page 15 disconnected from signal, the sleep mode is enabled automatically to make it more stable and safer. Sleep time can be customized. Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface  without power connection. Communications Design：DMX wired/wireless transmission, bidirectional-control technology, upgrade the ...

  • Page 16: Gobos And Colors

    8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Φ23mm Φ16mm Glass gobo 1.1mm Gobo material: Glass 8.2 Gobos...

  • Page 17: Menu Structure

    9. Menu structure Level 1 Level 2 Level 3 Level 4 Info Address Address: 001~ XXX Setting the DMX address setting Setting Pan ……，All，Off Display the channel value Value Master /Slave Run auto program in master or slave Display Auto- Program Time Info Since power on...
  • Page 18 Wireless transfer DMX data to another Wireless Reset Wireless reset Restore Restore to default value Yes/No Default Select GTD LM330 II BSW Select the model of the device Device - Password- GTD LM330 A BSW XXX(99) GTD LM330 B BSW ……...
  • Page 19 Record scene form console Record Scene XX->XX Scene *Settings hightlighted in light grey are default values...

  • Page 20: Dmx Protocol

    10. DMX Protocol Standard DMX mode Default Extended Name DMX value DMX percentage Function (23ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow 25.1% 49.8% to fast Strobe/Shutter 0(0%) 50.2% 62.4% Open Random strobe from slow to 62.7% 87.5% fast...
  • Page 21 DMX mode Default Extended Name DMX value DMX percentage Function Value (23ch) _______________________________________________________________ _____________________ 12.5% 15.3% Gobo 3 15.7% 18.4% Gobo 4 18.8% 21.6% Gobo 5 22.0% 24.7% Gobo 6 25.1% 27.8% Gobo 7 28.2% 31.0% Gobo 1 shake 31.4% 34.1% Gobo 2 shake 34.5%...
  • Page 22 DMX mode Default Extended Name DMX value DMX percentage Function Value (23ch) ______________________________________ _____________________ 73.7% 76.5% Stop Gobo Gobo continous rotation CW 76.9% 100.0% rotating/positioni from slow to fast ng gobo wheel 1 Gobo rotation/positioning, fine 0.0% 100.0% (LSB) Focus 0.0% 100.0% Near è...
  • Page 23 DMX mode Default Name DMX value DMX percentage Function Extended (23ch) Value ____________________________________ 54.9% 58.4% Built-in program 3 58.8% 62.4% Built-in program 4 62.7% 66.3% Built-in program 5 66.7% 70.2% Built-in program 6 Special controls 70.6% 74.1% Built-in program 7 74.5% 78.0% Built-in program 8...
  • Page 24 Basic DMX mode Default Extended Name DMX percentage Function value (20ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow to 25.1% 49.8% fast Strobe/Shutter 0(0%) 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open No light ...
  • Page 25 DMX mode Default Name DMX percentage Function Extended value (20ch) Value _________________________________________________________________ 22.0% 24.7% Gobo 6 25.1% 27.8% Gobo 7 28.2% 31.0% Gobo 1 shake 31.4% 34.1% Gobo 2 shake 34.5% 37.3% Gobo 3 shake 37.6% 40.4% Gobo 4 shake Color wheel 40.8% 43.5%...
  • Page 26 DMX mode Default Name DMX percentage Function Extended value (20ch) Value ———————————————————————— Focus 0.0% 100.0% Near è Far 0(0%) Zoom 0.0% 100.0% Narrow è Wide 0(0%) 0.0% 12.2% Prism 0(0%) 12.5% 100.0% 0.0% 49.8% Prism rotation/positioning Prism continous rotation CW from 50.2% 73.3% slow to fast...
  • Page 27 Extended `DMX mode Extended Name DMX value DMX percentage Function (30ch) 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open No light ...
  • Page 28 `DMX mode Name DMX value DMX percentage Function Extended (30ch) _____________________________________________________________ 9.4% 12.2% Gobo 2 12.5% 15.3% Gobo 3 15.7% 18.4% Gobo 4 18.8% 21.6% Gobo 5 22.0% 24.7% Gobo 6 25.1% 27.8% Gobo 7 28.2% 31.0% Gobo 1 shake 31.4% 34.1% Gobo 2 shake...
  • Page 29 `DMX mode Name DMX value DMX percentage Function Extended (30ch) ________________________________________________________________________________________________________ Gobo continous rotation CCW from slow 50.2% 73.3% to fast Gobo 73.7% 76.5% Stop rotating/positio ning gobo Gobo continous rotation CW from slow 76.9% 100.0% wheel 1 to fast 0.0% 100.0% Gobo rotation/positioning, fine (LSB)
  • Page 30 `DMX mode Name DMX value DMX percentage Function Extended (30ch) 62.7% 66.3% Built-in program 5 66.7% 70.2% Built-in program 6 70.6% 74.1% Built-in program 7 Special 74.5% 78.0% Built-in program 8 controls 78.4% 82.0% Built-in program 9 82.4% 85.9% Built-in program 10 86.3% 100.0% Reserved...

  • Page 31: System Wiring Diagram

    11. System wiring diagram...

  • Page 32: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting.
  • Page 33 Problem Possible Cause Suggested Correction control system. Setting >Address” of the fixture is consistent with the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Mode Channel Mode” of the fixture as required by the of the fixture.
  • Page 34 Problem Possible Cause Suggested Correction resumes once the ballast has cooled sufficiently. Burned-out or failing lamps, or high temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged.

  • Page 35: Spare Parts List

    LP565-220WPF37M-2 Light source 1306050523A SSL290-84-R71-000 display panel 5809010427A GTD-LM300 II BSW-101Q10 Scanning plate 5809010428A GTD-LM300 II BSW-201P10 SCR0115A drive board 1 5809010429A GTD-LM300 II BSW-401P10 SCR0112B drive board 2 5809010430A GTD-LM300 II BSW-501P10 SCR0113B LED drive board 5809210241A GTD-LM300 II BSW-301N10 LCR0117C...
  • Page 36 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 http://www.gtd-china.com...
