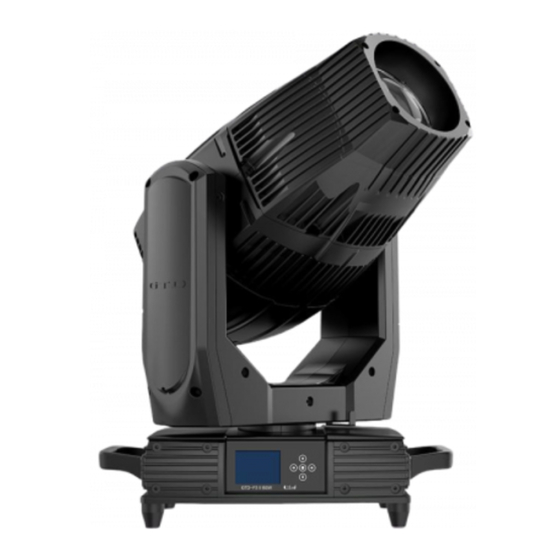

GTD-371C II BSW
371W II Moving Head
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-371C II BSW and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-371C II BSW

Summary of Contents for GTD GTD-371C II BSW

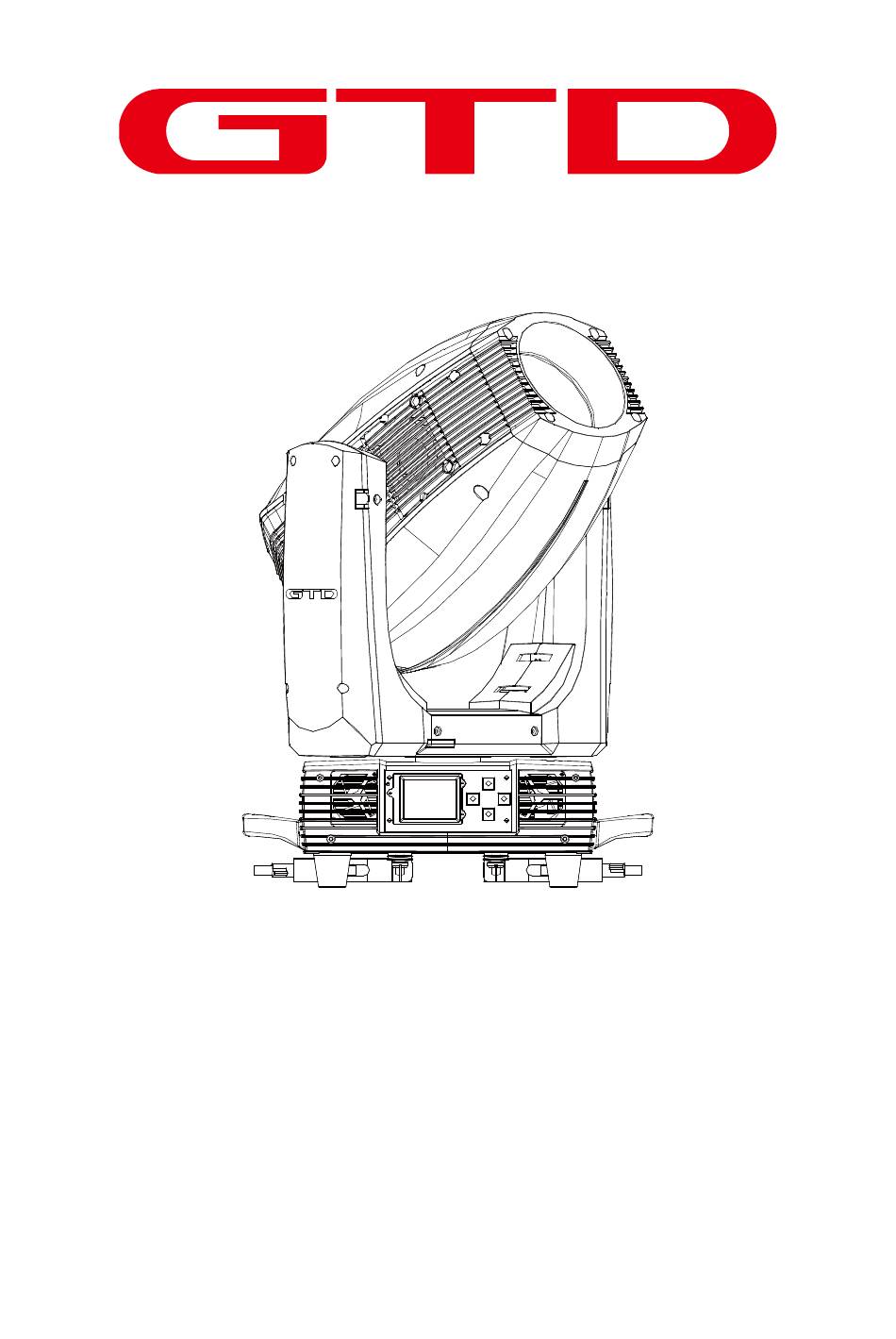

  • Page 1 GTD-371C II BSW 371W II Moving Head User Manual...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Table of contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified local  distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.
  • Page 6 GTD-371C II BSW 2. Production instructions 2.1 Diamension 434mm [17.1in] 441mm [17.3in] 661mm [26in] 568mm 489mm [22.4in] [19.3in] 140mm [5.5in] 450mm [17.7in] 270° 270° 270°...

  • Page 7: Fixture Overview

    GTD-371C II BSW 2.2 Fixture overview 灯头组件 Head module Color & gobo & CMY 花样组件 wheels module Light module 光源组件 Pan&tilt scan 水平垂直扫描 Base module 底箱组件 折叠灯钩 Fold clamps 2.3 Accessories Item Unit Remark User Manual Clamps 20-63mm Safety cable Φ5*60cm 7*19 pc with hook Material：Steel...

  • Page 8: Packing And Shipping

    GTD-371C II BSW 3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.

  • Page 9: Installation

    GTD-371C II BSW Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight case along with all the accessories. Close the cover. Only 3 layers are allowed when piling up the flight cases. Do not upside down.

  • Page 10: Lamp Fitting And Adjustment

    GTD-371C II BSW 105mm [4.1in ] 105mm [4.1in ] Safety cable mounting position Clamp Clamp 250mm 105mm ?50mm [4.1in] [9.8in] [2in] 698mm [27.5in] 4.3 Lamp fitting and adjustment 1. Disconnect the fixture from AC power. Cool down the fixture. Set the Tilt lock in a horizontal position.
  • Page 11 GTD-371C II BSW Back cover Back cover Enlarged Remove the back P ush t he l i ght bul b t o t he hol e，press i t dow n Note The fixture is equipped with Metal Halide 371W short arc discharge lamp, which is featured with high efficiency and short- arc characteristic, such as a stable 7400K color-temperature and average lifespan of 1500h.

  • Page 12: Power/ Control Connection

    GTD-371C II BSW 5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 13: Control Panel

    GTD-371C II BSW Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before putting into operation. 6. Control panel 6.1 Panel instruction GTD-470 N BSW GTD-371C II BSW  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.

  • Page 14: Technical Specification

    GTD-371C II BSW 7. Technical specification  Optical Light source: Spec SIRIUS HRI 371W Expected average lifetime: 1500 h Color temperature correction: 7500K Zoom: BEAM 0° ~2.5° / SPOT 3° ～ 43° /WASH 4° ～ 45° CRI：Ra≥80 Focus: High-precision glass lenses, electronic linear HD focus Prism: 1 pc tip 16-facet prism，1 pc Symmetry facet prism, prims can be controlled independently ,...
  • Page 15 GTD-371C II BSW  Electrical Power input, nominal:AC 100-240V ~50/60Hz Max. Power consumption: 503.1W, max current: 5.083A, PF: 0.996 Power supply unit: Auto-ranging electronic SMPS Main fuse: 250V/15A Ballast: Electronic Power input: Self-contained power cord DMX data input/output: Chassis 3-pin (in/out) ...
  • Page 16 GTD-371C II BSW BEAM l u m i n a n c e ( LU X ) 9595 5397 86350 21588 2.5° 2 ° D ista n ce (m /ft.) 0 20/65.6 40/131.2 60/196.9 80/262.5 B e a m D ia m e te r(m /ft.) ( 2.5 °) Ø0.87/2.85...
  • Page 17 GTD-371C II BSW SPOT l u m i n a n c e ( LU X ) 3 ° 409000 151000 81920 52990 43 ° 3518 43 ° 3 ° D is ta n c e (m /ft.) 0 5/16.4 10/32.81...

  • Page 18: Gobos And Colors

    GTD-371C II BSW 8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Φ14.4mm Φ6mm...

  • Page 19: Colors

    GTD-371C II BSW 8.3 Colors Two color wheel: 8 colors, split color, CW/CCW rotation,“Rainbow effect”in both directions...

  • Page 20: Menu Structure

    GTD-371C II BSW 9. Menu structure Level 4 Info Level 1 Level 2 Level 3 Run setting Address Setting Address: 001~ XXX Setting the DMX address Pan ……，All，No Value Display Display the channel value Auto-Program Master/Alone Run auto program in master or slave IP Setting 192.168.xxx.xxx...
  • Page 21 GTD-371C II BSW Lamp Lamp On/Off On/Off Open lamp Control Power On Lamp On Enable/Disable Power on open lamp Console Lamp On Enable/Disable Console open lamp Console Lamp Off Enable/Disable Console close lamp 20~79, 45’C /68~174 , Lamp On Temp.
  • Page 22 GTD-371C II BSW Strobe Reset strobe motor reset other motor reset Other Reset Pan…… Channel Test Mode Every channel test Adjust Manual Mode Pan =XXX Manual control Adjust Mode Input Password Password=XXX(99) The password of adjust mode Pan=XXX Fixed all begin position...

  • Page 23: Dmx Protocol

    GTD-371C II BSW 10. DMX Protocol DMX mode Default Name DMX value DMX percentage Function Standard Simplified Standard Value 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow 25.1% 49.8% to fast Strobe/Shutter 0(0%) 50.2% 62.4% Open Random strobe from slow to 62.7%...
  • Page 24 GTD-371C II BSW 6.3% 11.4% Color 1 11.8% 16.9% Color 2 17.3% 22.4% Color 3 22.7% 27.8% Color 4 28.2% 33.3% Color 5 33.7% 38.8% Color 6 39.2% 44.3% Color 7 44.7% 49.8% Color 8 Color continous rotation CW 50.2% 73.3%...
  • Page 25 GTD-371C II BSW Gobo wheel continous 76.9% 100.0% rotation CCW from slow to fast 0.0% 5.9% Open gobo 6.3% 8.6% Gobo 1 9.0% 11.4% Gobo 2 Rotating gobo 11.8% 14.1% Gobo 3 0(0%) wheel 14.5% 16.9% Gobo 4 17.3% 19.6% Gobo 5 20.0%...
  • Page 26 GTD-371C II BSW 0.0% 12.2% Prism plate1 0(0%) 12.5% 100.0% Prism On 0.0% 49.8% Prism indexed Prism continous rotation CW 50.2% 73.3% from slow to fast Prism plate 1 0(0%) rotation 73.7% 76.5% Stop Prism continous rotation 76.9% 100.0% CCW from slow to fast 0.0%...

  • Page 27: System Wiring Diagram

    GTD-371C II BSW 51.0% 54.5% Built-in program 2 54.9% 58.4% Built-in program 3 58.8% 62.4% Built-in program 4 62.7% 66.3% Built-in program 5 66.7% 70.2% Built-in program 6 70.6% 74.1% Built-in program 7 74.5% 78.0% Built-in program 8 78.4% 82.0% Built-in program 9 82.4%...

  • Page 28: Maintenance And Troubleshooting

    GTD-371C II BSW 12. Maintenance and Troubleshooting...

  • Page 29: Cleaning And Maintenance

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting.
  • Page 30 GTD-371C II BSW Problem Possible Cause Suggested Correction Mode”of the fixture. Channel Mode” of the fixture as required by the user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors. No input/output voltage to the the fixture,replace the main control board of the main control board of the fixture.
  • Page 31 GTD-371C II BSW Problem Possible Cause Suggested Correction problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.
  • Page 32 GTD-371C II BSW Problem Possible Cause Suggested Correction gobo wheel or color whee manual to clean the rotating gobo wheel or color wheel. Follow the instructions stated in this user Excessive dusts or smudges on the focus manual to clean the focus module or objective...

  • Page 33: Spare Parts List

    GTD-371C II BSW 13. Spare parts list Name Notes Lamp 1306030018A OSRAM SIRIUS HRI 371W Electronic ballast 1412020013A 371W Switch power 1412050059A LP730-220WPF380M-3/730W-3803728 Display 5809010450A GTD-380C II BSW-101J10 0108A-1 Scan board 5809010451A GTD-380C II BSW-201010 SCR0240B Motor drive board3 5809010452A...
  • Page 36 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 http://www.gtd-china.com...
