Altronix Trove Plus networked kits are pre-wired, pre-assembled and consist of Trove1M1 enclosure/backplane with factory installed Altronix
power supply/charger and sub-assemblies, wire harnesses and finger duct.
120VAC
60Hz
Altronix Input
Model Current
Number (A)
T1M1CK1Q
T1M1CK2Q
T1M1CK3Q
3.5
T1M1CK1DQ
T1M1CK2DQ
T1M1CK3DQ
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the
wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws; level and secure.
Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners.
Place the enclosure's upper keyholes over the three upper screws. Install the three lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch
bracket onto the edge of the enclosure approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access
Control Panel input or the appropriate UL Listed reporting device. To activate alarm signal open the door of the enclosure.
4. Mount Mercury modules to backplane(s), refer to page 3.
5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow4NB
and corresponding Installation Guide for LINQ8PD(CB) and VR6
for further installation instructions.
Hardware:
Snap On Spacer |
- 2 -

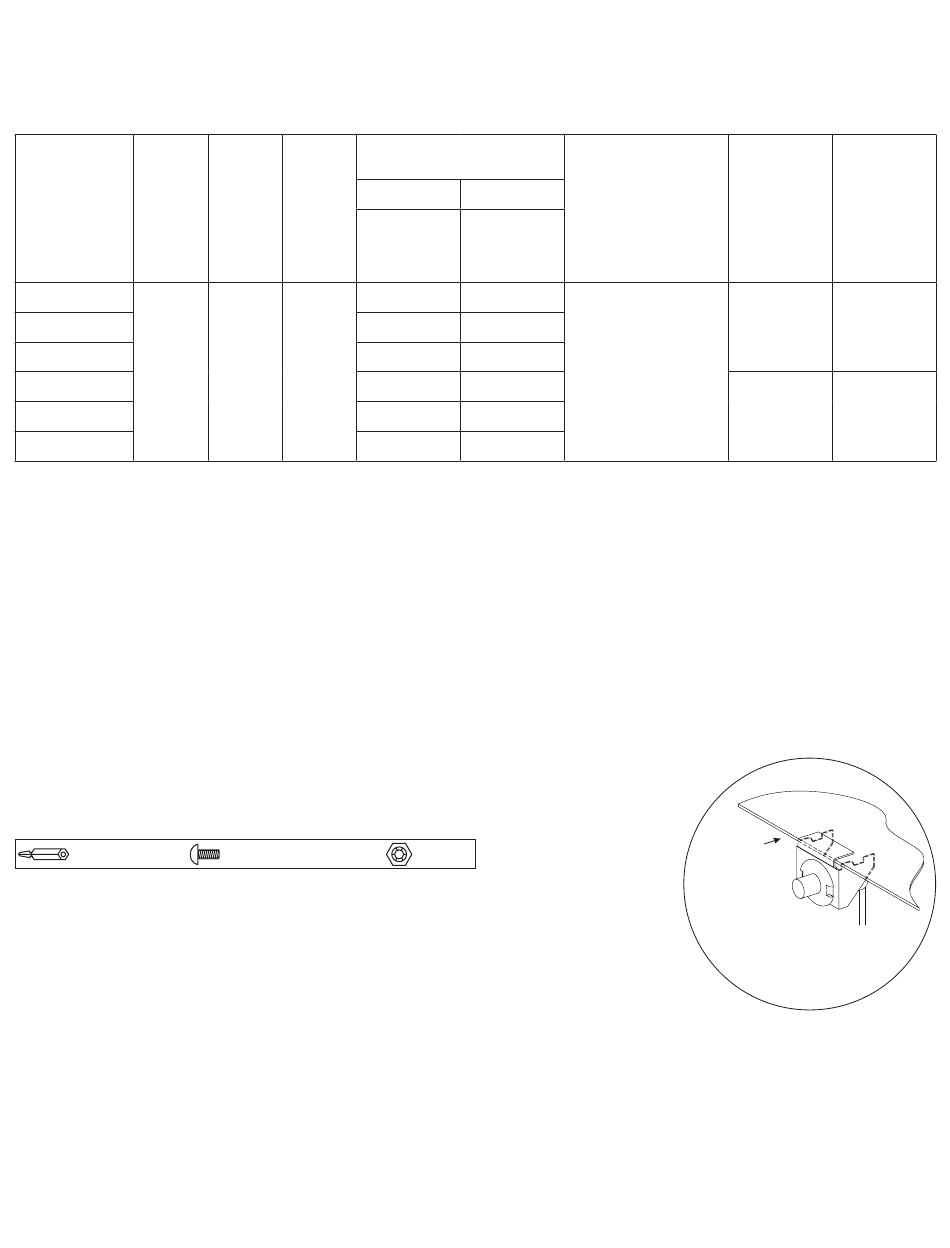

Configuration Chart:

Power Power
Supply Supply
[DC]
Board Board
Input Battery
Fuse Fuse Output Range
Rating Rating (VDC)
20.17-26.4
20.17-26.4
20.17-26.4
5A/ 10A/
250V 32V
20.17-26.4
20.17-26.4
20.17-26.4

Installation Instructions:

5/16" Pan Head Screw |
Overview:
Nominal DC
Maximum Supply
Output Voltage
Current for Main
Outputs on Power
[Aux]
Supply board and
Output Range Power Distribution
(VDC) Module's outputs
20.28-26.4
20.28-26.4
20.28-26.4
20.28-26.4
20.28-26.4
20.28-26.4
Lock Nut
LINQ8PD(CB)
LINQ8PD(CB) Board
Input Fuse
(PTC) Rating
15A/
250V
24VDC @ 3.8A
9A
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
LINQ8PD(CB)
Board
Output Fuse
(PTC) Rating
3A/
250V
2.5A
Fig. 1
Enclosure
