2.3.3. RS-232 control port

Devices can be remote controlled through industry standard 9 pin D-SUB female connector
located on the rear panel of the unit. Please use a standard RS-232 Male to Female cable
(straight through).
RS-232 port settings on the PC:
9600 Baud, 8 data bit, 1 stop bit, no parity

2.3.4. Alarm outputs (receiver)

TTL outputs can be used to give a signal to any third party device. Separate signals indicate
the detected laser and the presence of the received DVI signal.
DVI Detect
Laser Detect
GND
Compatible plug type:
Phoenix
Page 16 / 57
5 1
9 6

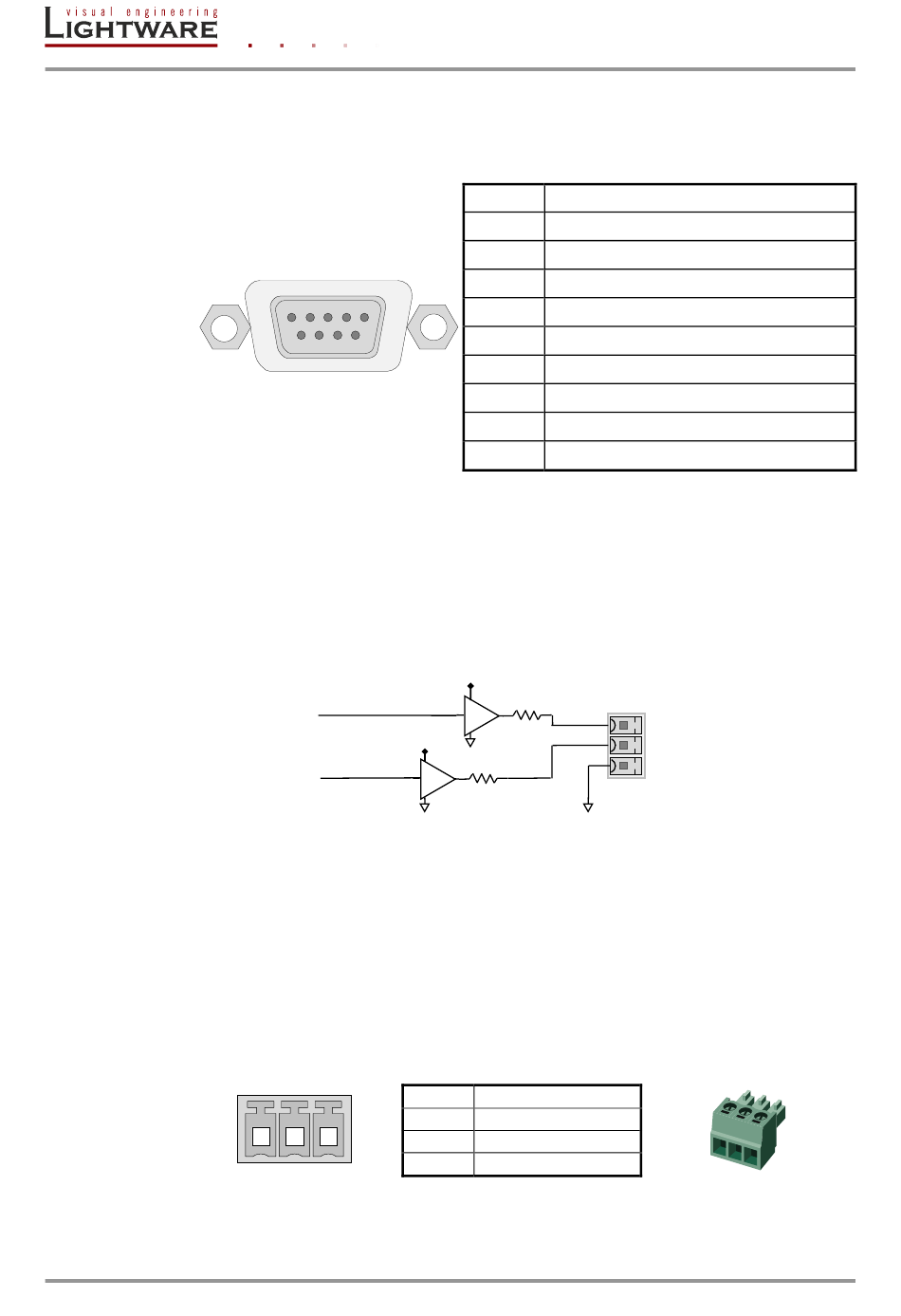

Table 2-2. D-sub connector pin assignment for standard RS-232
DVI signal present
+5 V
Laser detected
Indicates when a valid DVI clock signal is extracted from the fiber
optical signal. Logic 1 (+5V) means that a DVI signal is detected.
Logic 0 (GND) means that a valid DVI signal cannot be extracted
from the optical signal.
Indicates when a laser beam is detected at the Neutrik connector.
Logic 1 (+5V) means that a laser beam with the appropriate
wavelength is detected. Logic 0 (GND) means that either there is
no laser signal or its level is too low to be recognized.
Ground reference signal for alarm outputs. Connected to chassis
ground.
Pin nr.
1 2 3
Figure 2-5. Alarm output pin assignments
®
Combicon series (3.5mm pitch), type: MC 1.5/3-ST-3.5
Pin nr.
1 NC, not connected
2 TX data transmit (output)
3 RX data receive (input)
4
DTR (internally connected to Pin 6)
5 GND signal ground (shield)
6 DSR (internally connected to Pin 4)
7 RTS (internally connected to Pin 8)
8 CTS (internally connected to Pin 7)
9 NC, not connected
+5 V
300 Ω
300 Ω
Figure 2-4. Alarm outputs
Signal
1 DVI detect (+5V)
2 Laser detect (+5V)
3 GND
