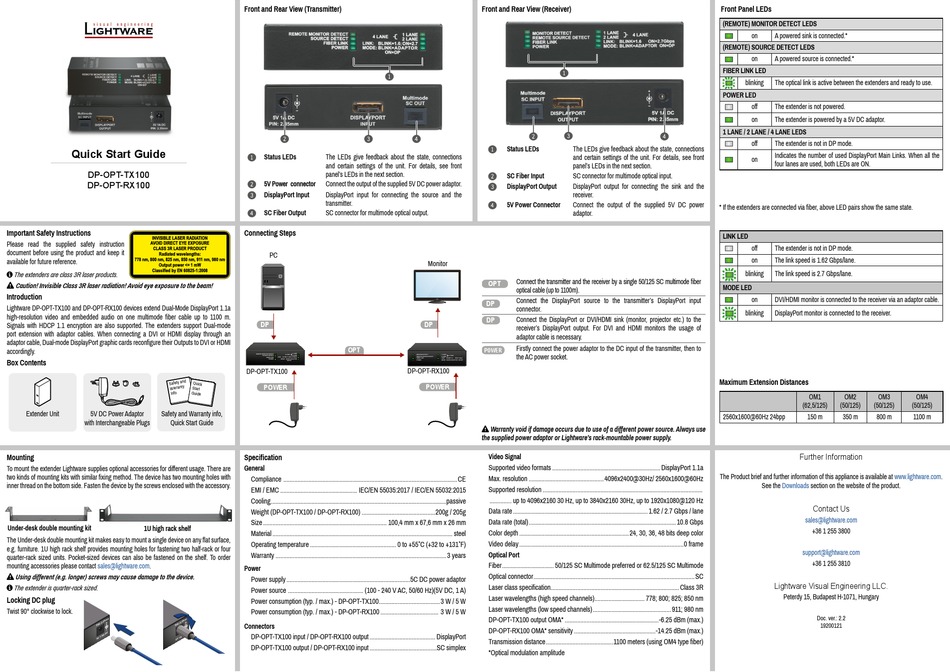

Lightware DP-OPT-TX100 Quick Start Manual

Quick Start Guide

DP-OPT-TX100
DP-OPT-RX100
Important Safety Instructions
INVISIBLE LASER RADIATION
Please read the supplied safety instruction AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
document before using the product and keep it
Radiated wavelengths:
778 nm, 800 nm, 825 nm, 850 nm, 911 nm, 980 nm
available for future reference.
Output power <= 1 mW
Classified by EN 60825-1:2008
 The extenders are class 3R laser products.
 Caution! Invisible Class 3R laser radiation! Avoid eye exposure to the beam!
Introduction
Lightware DP-OPT-TX100 and DP-OPT-RX100 devices extend Dual-Mode DisplayPort 1.1a
high-resolution video and embedded audio on one multimode fiber cable up to 1100 m.
Signals with HDCP 1.1 encryption are also supported. The extenders support Dual-mode
port extension with adaptor cables. When connecting a DVI or HDMI display through an
adaptor cable, Dual-mode DisplayPort graphic cards reconfigure their Outputs to DVI or HDMI
accordingly.
Box Contents
Extender Unit 5V DC Power Adaptor Safety and Warranty info,
with Interchangeable Plugs Quick Start Guide
Mounting
To mount the extender Lightware supplies optional accessories for different usage. There are
two kinds of mounting kits with similar fixing method. The device has two mounting holes with
inner thread on the bottom side. Fasten the device by the screws enclosed with the accessory.
Under-desk double mounting kit 1U high rack shelf
The Under-desk double mounting kit makes easy to mount a single device on any flat surface,
e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-rack or four
quarter-rack sized units. Pocket-sized devices can also be fastened on the shelf. To order
mounting accessories please contact sales@lightware.com.
 Using different (e.g. longer) screws may cause damage to the device.
 The extender is quarter-rack sized.
Locking DC plug
Twist 90° clockwise to lock.
m m m m
.3 5 .3 5
: 2 : 2
P IN P IN
D C
D C
A
1 .5
1 A
5 V
5 V
Front and Rear View (Transmitter)
1
2 3 4
1 Status LEDs The LEDs give feedback about the state, connections
and certain settings of the unit. For details, see front
panel's LEDs in the next section.
2 5V Power connector Connect the output of the supplied 5V DC power adaptor.
DisplayPort Input DisplayPort input for connecting the source and the
3
transmitter.
4 SC Fiber Output SC connector for multimode optical output.
Connecting Steps
PC
DP
OPT
REMOTE MONITOR DETECT 1 LANE
4 LANE MONITOR DETECT
SOURCE DETECT 2 LANE
LINK: BLINK=1.6ON=2.7Gbps REMOTE SOURCE DETECT
FIBER LINK FIBER LINK
POWER MODE: BLINK=ADAPTOR
POWER
ON=DP
DP-OPT-TX100 DP-OPT-RX100
POWER
Specification
General
Compliance ...............................................................................................................CE
EMI / EMC ................................................. IEC/EN 55035:2017 / IEC/EN 55032:2015
Cooling ................................................................................................................passive
Weight (DP-OPT-TX100 / DP-OPT-RX100) ...............................................200g / 205g
Size ............................................................................... 100,4 mm x 67,6 mm x 26 mm
Material ................................................................................................................... steel
Operating temperature ....................................................... 0 to +55˚C (+32 to +131˚F)
Warranty ............................................................................................................. 3 years
Power
Power supply ...............................................................................5C DC power adaptor
Power source ................................................ (100 - 240 V AC, 50/60 Hz)(5V DC, 1 A)
Power consumption (typ. / max.) - DP-OPT-TX100 .......................................3 W / 5 W
Power consumption (typ. / max.) - DP-OPT-RX100 ..................................... 3 W / 5 W
Connectors
DP-OPT-TX100 input / DP-OPT-RX100 output .......................................... DisplayPort
DP-OPT-TX100 output / DP-OPT-RX100 input ...........................................SC simplex

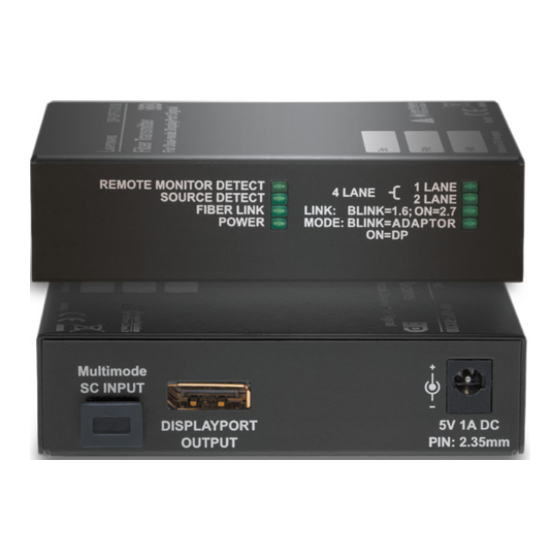

Front and Rear View (Receiver)
1
2 3
Status LEDs The LEDs give feedback about the state, connections
1
and certain settings of the unit. For details, see front
panel's LEDs in the next section.
SC Fiber Input SC connector for multimode optical input.
2
DisplayPort Output DisplayPort output for connecting the sink and the
3
receiver.
5V Power Connector Connect the output of the supplied 5V DC power
4
adaptor.
Monitor
Connect the transmitter and the receiver by a single 50/125 SC multimode fiber
OPT
optical cable (up to 1100m).
Connect the DisplayPort source to the transmitter's DisplayPort input
DP
connector.
DP Connect the DisplayPort or DVI/HDMI sink (monitor, projector etc.) to the
DP
receiver's DisplayPort output. For DVI and HDMI monitors the usage of
adaptor cable is necessary.
Firstly connect the power adaptor to the DC input of the transmitter, then to
POWER
the AC power socket.
1 LANE
4 LANE
2 LANE
LINK: BLINK=1.6 ON=2.7Gbps
MODE: BLINK=ADAPTOR ON=DP
POWER
 Warranty void if damage occurs due to use of a different power source. Always use
the supplied power adaptor or Lightware's rack-mountable power supply.
Video Signal
Supported video formats ..................................................................... DisplayPort 1.1a
Max. resolution ................................................4096x2400@30Hz/ 2560x1600@60Hz
Supported resolution ......................................................................................................
.............. up to 4096x2160 30 Hz, up to 3840x2160 30Hz, up to 1920x1080@120 Hz
Data rate ...................................................................................... 1.62 / 2.7 Gbps / lane
Data rate (total) .............................................................................................. 10.8 Gbps
Color depth ......................................................................24, 30, 36, 48 bits deep color
Video delay .........................................................................................................0 frame
Optical Port
Fiber ................................. 50/125 SC Multimode preferred or 62.5/125 SC Multimode
Optical connector .......................................................................................................SC
Laser class specification.................................................................................. Class 3R
Laser wavelengths (high speed channels) ................................ 778; 800; 825; 850 nm
Laser wavelengths (low speed channels) ..................................................911; 980 nm
DP-OPT-TX100 output OMA* ............................................................-6.25 dBm (max.)
DP-OPT-RX100 OMA* sensitivity ....................................................-14.25 dBm (max.)
Transmission distance ...........................................1100 meters (using OM4 type fiber)
*Optical modulation amplitude
Front Panel LEDs
(REMOTE) MONITOR DETECT LEDS
on A powered sink is connected.*
(REMOTE) SOURCE DETECT LEDS
on A powered source is connected.*
FIBER LINK LED
The optical link is active between the extenders and ready to use.
blinking
POWER LED
off The extender is not powered.
on The extender is powered by a 5V DC adaptor.
1 LANE / 2 LANE / 4 LANE LEDS
4
off The extender is not in DP mode.
Indicates the number of used DisplayPort Main Links. When all the
on
four lanes are used, both LEDs are ON.
* If the extenders are connected via fiber, above LED pairs show the same state.
LINK LED
off The extender is not in DP mode.
on The link speed is 1.62 Gbps/lane.
blinking The link speed is 2.7 Gbps/lane.
MODE LED
on DVI/HDMI monitor is connected to the receiver via an adaptor cable.
blinking DisplayPort monitor is connected to the receiver.
Maximum Extension Distances
OM1
(62,5/125)
2560x1600@60Hz 24bpp 150 m
Further Information
The Product brief and further information of this appliance is available at www.lightware.com.
See the Downloads section on the website of the product.
Contact Us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 2.2
19200121
OM2 OM3 OM4
(50/125) (50/125) (50/125)
350 m 800 m 1100 m
