EB 8256 EN
Translation of original instructions

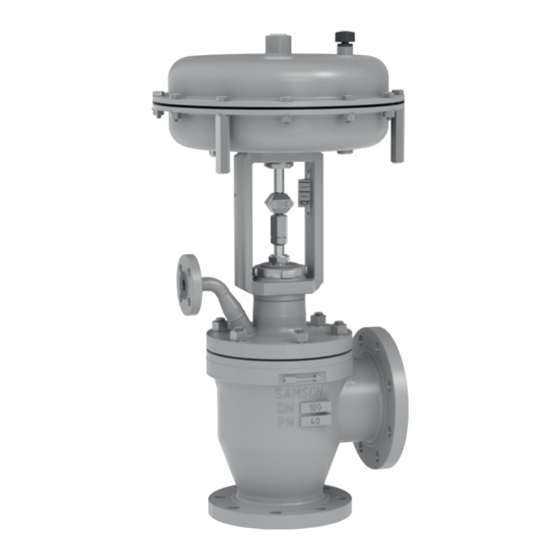

Type 3286 Steam Conditioning Valve · DIN version
In combination with an actuator,
e.g. a Type 3271 or Type 3277 Pneumatic Actuator
Edition November 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3286 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samson 3286

Summary of Contents for Samson 3286

  • Page 1 EB 8256 EN Translation of original instructions Type 3286 Steam Conditioning Valve · DIN version In combination with an actuator, e.g. a Type 3271 or Type 3277 Pneumatic Actuator Edition November 2023...
  • Page 2 Note on these mounting and operating instructions These mounting and operating instructions assist you in mounting and operating the device safely. The instructions are binding for handling SAMSON devices. The images shown in these instructions are for illustration purposes only. The actual product may vary.

  • Page 3: Table Of Contents

    Contents Safety instructions and measures ..............1-1 Notes on possible severe personal injury ............1-4 Notes on possible personal injury ..............1-5 Notes on possible property damage .............1-7 Warnings on the device ................1-8 Markings on the device ................2-1 Valve nameplate ..................2-1 Actuator nameplate ..................2-2 Material identification number ..............2-2 Label when an adjustable packing is installed ..........2-2 Design and principle of operation ...............3-1...
  • Page 4 Removal ....................11-1 11.1 Removing the valve from the pipeline ............11-2 11.2 Removing the actuator from the valve ............11-2 Repairs ....................12-1 12.1 Returning devices to SAMSON ..............12-1 Disposal ....................13-1 Certificates ....................14-1 Annex......................15-1 15.1 Tightening torques, lubricants and tools ............15-1 15.2 Spare parts ....................15-1 15.3...

  • Page 5: Safety Instructions And Measures

    SAMSON. SAMSON does not assume any liability for damage resulting from the failure to use the de- vice for its intended purpose or for damage caused by external forces or any other external factors.
  • Page 6 (see associated actuator documentation). When the valve is combined with a SAMSON Type 3271 or Type 3277 Pneumatic Actuator, the valve moves to a certain fail- safe position (see the 'Design and principle of operation' section) upon supply air or control signal failure.
  • Page 7 Start-up and shutdown procedures fall within the scope of the operator's duties and, as such, are not part of these mounting and operating instructions. SAMSON is unable to make any statements about these procedures since the operative details (e.g. differential pressures and temperatures) vary in each individual case and are only known to the operator.

  • Page 8: Notes On Possible Severe Personal Injury

    − If a device contains a substance listed as a substance of very high concern on the candi- date list of the REACH regulation, this is indicated on the SAMSON delivery note. − Order-specific declaration of conformity in compliance with Pressure Equipment Directive 2014/68/EU 1.1 Notes on possible severe personal injury...

  • Page 9: Notes On Possible Personal Injury

    Safety instructions and measures 1.2 Notes on possible personal injury WARNING Risk of burn injuries due to hot or cold components and pipelines. Depending on the process medium, valve components and pipelines may get very hot or cold and cause burn injuries. Î...
  • Page 10 Risk of personal injury due to preloaded springs. Valves in combination with pneumatic actuators with preloaded springs are under ten- sion. These control valves with SAMSON pneumatic actuators can be identified by the long bolts protruding from the bottom of the actuator.

  • Page 11: Notes On Possible Property Damage

    Safety instructions and measures WARNING Risk of personal injury due to incorrect operation, use or installation as a result of in- formation on the valve being illegible. Over time, markings, labels and nameplates on the valve may become covered with dirt or become illegible in some other way.

  • Page 12: Warnings On The Device

    Risk of valve damage due to the use of unsuitable tools. Certain tools are required to work on the valve. Î Only use tools approved by SAMSON (u AB 0100). Risk of valve damage due to the use of unsuitable lubricants. The lubricants to be used depend on the valve material. Unsuitable lubricants may cor- rode and damage surfaces.

  • Page 13: Markings On The Device

    Fig. 2-2 and the inscription table list all pos- M: mixing valve · V: diverting valve sible characteristics and options that may appear on a valve nameplate. Only the in- scriptions relevant to the ordered Type 3286 Valve actually appear on the nameplate. EB 8256 EN...

  • Page 14: Actuator Nameplate

    15 Noise reduction: 1: flow divider (ST) 1 · 2: ST 2 · by SAMSON. The material number enables 3: ST 3 · 1/PSA: ST 1 standard and inte- you to view the device's technical data as grated in seat for PSA valve ·...
  • Page 15 Markings on the device Fig. 2-3: Label when an adjustable packing is installed EB 8256 EN...
  • Page 16 EB 8256 EN...

  • Page 17: Design And Principle Of Operation

    The steam a flow divider 3. The Type 3286 Steam-con- flow and the entrained water are mixed in ditioning Valve is preferably combined with the narrow wire mesh of the flow divider.
  • Page 18 Plug (with plug stem) Castellated nut Guide bushing Diaphragm Threaded bushing (packing nut) Actuator stem Stem connector nut Ring nut Lock nut Spring Body nut A26/27 Stem connector clamps Packing Signal pressure connection Fig. 3-1: Type 3286 Valve with Type 3271 Pneumatic Actuator EB 8256 EN...

  • Page 19: Versions

    Strainers In these instructions, the preferable combina- We recommend installing a SAMSON tion with a SAMSON Type 3271 or strainer upstream of the valve body and in Type 3277 Pneumatic Actuator is described. the inlet pipe for the water supply. It prevents...

  • Page 20: Valve Accessories

    Noise emissions Safety guard SAMSON is unable to make general state- For operating conditions that require in- ments about noise emissions. The noise emis- creased safety (e.g. in cases where the valve...
  • Page 21 Design and principle of operation Table 3-1: Technical data for Type 3286 Material Cast steel · 1.0619 Cast steel · 1.7357 Valve size 50 to 300 Pressure rating 16 to 160 Flanges All DIN EN versions Type of connection Welding ends DIN EN 12627...
  • Page 22 Dimensions and weights Table 3-2 and Table 3-3 provide an overview of the dimensions and weights of the standard version of Type 3286 Valve. The lengths and heights in the dimensional drawings are shown on p. 3-7. Dimensions in mm · Weights in kg Table 3-2: Dimensions of Type 3286 ·...
  • Page 23 Refer to the following data sheets for more dimensions and weights: u T 8256 for valves with insulating section or bellows seal The associated actuator documentation applies to actuators, e.g. SAMSON pneumatic actu- ators: u T 8310-1 for Type 3271 or Type 3277 Pneumatic Actuators up to 750 cm² actuator area u T 8310-2 for Type 3271 Actuator with 1000 cm²...
  • Page 24 EB 8256 EN...

  • Page 25: Shipment And On-Site Transport

    Shipment and on-site transport 4 Shipment and on-site trans- Î Leave the control valve in its transport container or on the pallet to transport it port on site. The work described in this section is only to Î Do not remove the protective caps from be performed by personnel appropriately the inlet and outlet until immediately be- qualified to carry out such tasks.

  • Page 26: Transporting The Valve

    − Protect the piping and any mounted valve accessories against damage. A swivel hoist can be screwed into − Protect the control valve against moisture SAMSON actuators with a female thread on and dirt. the top diaphragm case in place of the eyebolt (see associated actuator −...

  • Page 27: Lifting The Valve

    Shipment and on-site transport Fig. 4-1: Lifting points on the control valve: with flanges (left) and with welding ends (right) Lifting instructions Note − Use a hook with safety latch (see Contact our after-sales service for the trans- Fig. 4-1) to secure the slings from slip- portation temperatures of other valve ver- ping off the hook during lifting and sions.
  • Page 28 Shipment and on-site transport − Do not leave loads suspended when in- 6. After installation in the pipeline, check terrupting work for longer periods of whether the flanges are bolted tight and time. the valve in the pipeline holds. − Make sure that the axis of the pipeline is 7.

  • Page 29: Storing The Valve

    Elastomer, e.g. actuator diaphragm Î Avoid long storage times. − To keep elastomers in shape and to pre- Î Contact SAMSON in case of different vent cracking, do not bend them or hang storage conditions or longer storage them up.
  • Page 30 EB 8256 EN...

  • Page 31: Installation

    Î To determine the required inlet and outlet lengths as well as how the pipeline is to The work described in this section is only to be routed, contact SAMSON. be performed by personnel appropriately Î Install the valve free of stress and with the qualified to carry out such tasks.

  • Page 32: Preparation For Installation

    Installation Support or suspension Î During connection of valve accessories, make sure that they are easily accessible and can be operated safely from the Note work position. The plant engineering company is responsi- ble for selecting and implementing a suitable Vent plugs support or suspension of the installed control Vent plugs are screwed into the exhaust air...

  • Page 33: Mounting The Device

    Risk of valve damage due to the use of ing the pipelines in the plant. unsuitable tools. Î Only use tools approved by SAMSON Î Pickle and blow through the steam pipe. (u AB 0100). Î For steam applications, dry the pipelines.

  • Page 34: Mounting The External Anti-Rotation Fixture

    The valve must NOTICE be closed beforehand. Impaired functioning due to incorrectly ap- For SAMSON Type 3271 and Type 3277 plied lubricant. Actuators with Type 3273 Hand-operated Î Do not apply any lubricant to the threads Actuator, observe the mounting and operat- of the clamps (301) or the plug stem.
  • Page 35 Installation on each side (see detailed view Y in Fig. 5-3). − The anti-rotation fixture does not get stuck on the yoke and can move free- ly in the direction of travel. 14. Extend the actuator stem again and mount the stem connector clamps. Plug stem Legend Yoke...
  • Page 36 Installation Plug stem Legend Stem Lubricant Gleitmo 1763 V Clamps Screws Washers Sliding washers Fig. 5-3: Overview of anti-rotation fixture assembly in the standard version EB 8256 EN...
  • Page 37 Installation b) Special version for Se- 8. Thread the stem (9) upwards until the head of the stem rests on the extended ries 280 Valves, DN 50 to actuator stem. 9. Retract the actuator stem to relieve the stem (9). See Fig. 5-4 and Fig. 5-5 10.
  • Page 38 Installation Legend Yoke Screws Hanger Plug stem Travel indicator scale Castellated nut Warning label Holder Screws Washers Fig. 5-4: Overview of yoke assembly with travel indicator scale in the special version EB 8256 EN...
  • Page 39 Installation Plug stem Legend Stem Lubricant Gleitmo 1763 V Clamps Screws Washers Sliding washers Fig. 5-5: Overview of anti-rotation fixture assembly in the special version EB 8256 EN...
  • Page 40 Installation Table 5-3: Mounting dimensions for Types 3271 and 3277 Pneumatic Actuators · See Fig. 5-6 for dimensional drawing Trav- Actuator Actuator preloading Dimension when the valve is closed [mm] [cm²] [mm] [mm] DN 50 to 100/NPS 2 to 4 · Special version 3.75 –...
  • Page 41 Installation Trav- Actuator Actuator preloading Dimension when the valve is closed [mm] [cm²] [mm] [mm] DN 200 to 250/NPS 8 to 10 up to seat bore 200 · Standard version 1000 1400-60 87.5 1400-120 2800 5600 DN 250/NPS 10, seat bore 250 and DN 300 to 500/NPS 12 to 20 · Standard version 1000 1400-60 1400-120...
  • Page 42 Installation Ball bearings (standard version only) Fig. 5-6: Dimensional drawing with mounting dimensions for Types 3271 and 3277 Pneumatic Actuators 5-12 EB 8256 EN...

  • Page 43: Mounting The Actuator Onto The Valve

    Installation 5.3.2 Mounting the actuator Depending on the version, SAMSON control valves are either delivered with the actuator onto the valve already mounted on the valve or the valve and actuator are delivered separately. When WARNING delivered separately, the valve and actuator Risk of personal injury due to preloaded must be assembled together on site.

  • Page 44: Mounting The Actuator

    Installation Versions with perforated plug seal facing and is uncovered first when the plug is lifted out of the seat. Only one hole is located near the seal facing of perforated plugs with equal percentage Î On mounting the actuator, make sure characteristic.
  • Page 45 Installation selection of the welding procedure and the 8. Attach a support or suspension on the actual welding operations on the valve. This valve, if necessary. also applies to any required heat treatment b) Version with welding ends to be performed on the valve. Î...

  • Page 46: Testing The Installed Valve

    Installation 5.4 Testing the installed valve cessories not fitted with noise-reducing fit- tings. Both can damage hearing. Î Wear hearing protection when working DANGER near the valve. Risk of bursting due to incorrect opening of pressurized equipment or components. Valves and pipelines are pressure equipment WARNING WARNING that may burst when handled incorrectly.

  • Page 47: Leak Test

    Installation 5. Check the valve for leakage to the atmo- WARNING sphere. Risk of personal injury due to preloaded 6. Depressurize the pipeline section and springs. valve. Actuators with preloaded springs are under 7. Rework any parts that leak (see informa- tension.

  • Page 48: Fail-Safe Position

    Installation Î Apply the maximum and minimum con- trol signals to check the end positions of the valve while observing the movement of the actuator stem.Apply the maximum and minimum control signals to check the end positions of the valve. Î...

  • Page 49: Start-Up

    Start-up 6 Start-up Î Wear hearing protection when working near the valve. The work described in this section is only to be performed by personnel appropriately qualified to carry out such tasks. WARNING WARNING Crush hazard arising from actuator and WARNING plug stem moving.
  • Page 50 Start-up Before start-up or putting the valve back into 5. Check the valve to ensure it functions service, make sure the following conditions properly. are met: − The valve is properly installed into the pipeline (see the 'Installation' section). − The leak and function tests have been completed successfully (see 'Testing the installed valve' in the 'Installation' sec- tion).

  • Page 51: Operation

    Operation 7 Operation Î Wear hearing protection when working near the valve. Immediately after completing start-up or put- ting the valve back into operation, the valve is ready for use. WARNING WARNING Crush hazard arising from actuator and WARNING plug stem moving. Risk of burn injuries due to hot or cold Î...

  • Page 52: Normal Operation

    Operation 7.1 Normal operation The handwheel of valves with actuators fitted with a handwheel must be in the neutral po- sition during normal operation. 7.2 Manual operation Valves with actuators fitted with a handwheel can be manually closed or opened in case of supply air failure.

  • Page 53: Malfunctions

    Malfunctions 8 Malfunctions Read hazard statements, warnings and caution notes in the 'Safety instructions and mea- sures' section. 8.1 Troubleshooting Malfunction Possible reasons Recommended action Actuator and plug stem Actuator is blocked. Check attachment. does not move on Remove the blockage. demand.
  • Page 54 Malfunctions Malfunction Possible reasons Recommended action Increased flow through Dirt or other foreign Shut off the section of the pipeline and flush the closed valve (seat particles deposited valve. leakage) between the seat and plug. Valve trim is worn out. Replace seat and plug (see the 'Servicing' section) or contact our after-sales service.

  • Page 55: Emergency Action

    Malfunctions 8.2 Emergency action Plant operators are responsible for emergen- cy action to be taken in the plant. In the event of a valve malfunction: 1. Close the shut-off valves upstream and downstream of the control valve to stop the process medium from flowing through the valve.
  • Page 56 EB 8256 EN...

  • Page 57: Servicing

    Servicing 9 Servicing Î Allow components and pipelines to cool down or warm up to the ambient tem- The work described in this section is only to perature. be performed by personnel appropriately Î Wear protective clothing and safety qualified to carry out such tasks. gloves.
  • Page 58 Risk of valve damage due to the use of WARNING unsuitable tools. Risk of personal injury due to preloaded Î Only use tools approved by SAMSON springs. (u AB 0100). Actuators with preloaded springs are under tension. They can be identified by the long...

  • Page 59: Periodic Testing

    Servicing 9.1 Periodic testing Note The control valve was checked by SAMSON Depending on the operating conditions, before it left the factory. check the valve at certain intervals to prevent − Certain test results certified by SAMSON possible failure before it can occur. Plant op-...
  • Page 60 Servicing Inspection and testing Action to be taken in the event of a negative result: Check the test connection and bellows Put the control valve out of operation (see the seal (if used) for external leakage. 'Decommissioning' section). To repair the bellows seal, WARNING! Risk of personal injury due contact our after-sales service (see the 'Repairs' section).

  • Page 61: Preparing The Valve For Service Work

    Servicing 9.2 Preparing the valve for Note service work To remove an actuator with "stem extends" fail-safe action and/or with preloaded springs, a certain signal pressure must be WARNING applied to the actuator (see associated actu- Risk of personal injury due to incorrect ator documentation).

  • Page 62: Service Work

    Servicing 9.4 Service work Note Î Before performing any service work, Measure how many shims (64, 65) are re- preparations must be made to the control quired (see section 9.4.4). valve (see section 9.2). 1. Undo the body nuts (14) gradually in a Î...
  • Page 63 Plug (with plug stem) Castellated nut Guide bushing Diaphragm Threaded bushing (packing nut) Actuator stem Stem connector nut Ring nut Lock nut Spring Body nut A26/27 Stem connector clamps Packing Signal pressure connection Fig. 9-1: Type 3286 with Type 3271 Actuator EB 8256 EN...

  • Page 64: Replacing The Packing

    Servicing See relevant information under 'Mount- Note ing the actuator onto the valve' in the 'In- The number of spacers (19) varies depend- stallation' section. ing on the nominal valve size. 9. Firmly press the plug (5) into the seat (4). Fasten down the bonnet (2) with the body nuts (14).
  • Page 65 Servicing Bonnet 17 Body gasket 62 Flow divider 63 Clamping element 64 Spacer ring 65 Spacer ring 67 Graphite fiber packing Fig. 9-2: Gaskets 13. Place the bonnet (2) together with the See relevant information under 'Mount- plug stem and plug (5) onto the body. ing the actuator onto the valve' in the 'In- Version with V-port plug: place the bon- stallation' section.
  • Page 66 Servicing 17. Place yoke (3) on the bonnet (2) and fas- 3. Remove the tool. ten using the castellated nut (92). 4. Proceed as described in ‘Standard and 18. Loosely screw the lock nut (10) and stem form H packings’, steps 16 to 18. connector nut (9) onto the plug stem.

  • Page 67: Replacing The Seat And Plug

    Servicing 9.4.3 Replacing the seat and 5. Unscrew the stem connector nut (9) and lock nut (10) from the plug stem. plug 6. Unscrew the threaded bushing (8). 7. Pull the plug with plug stem (5) out of the NOTICE bonnet (2).

  • Page 68: Determining The Number Of Shims Required

    Servicing 9.4.4 Determining the number See relevant information under 'Mount- ing the actuator onto the valve' in the 'In- of shims required stallation' section. Determine the number of shims required ev- 17. Firmly press the plug (5) into the seat (4). ery time the bonnet (2) is opened.
  • Page 69 Servicing Bonnet Dim. Explanation Body gasket Bottom of the graphite fiber packing (67) up to the Flow divider top of the gasket (17) Clamping element Top of the shim (64/65) up to the top of the gasket Spacer ring (17) Spacer ring Height of the double-layered graphite fiber packing Graphite fiber packing...

  • Page 70: Ordering Spare Parts And Operating Supplies

    Servicing 9.5 Ordering spare parts and operating supplies Contact your nearest SAMSON subsidiary or SAMSON's After-sales Service for infor- mation on spare parts, lubricants and tools. Spare parts See Annex for details on spare parts. Lubricant See document u AB 0100 for details on suitable lubricants.

  • Page 71: Decommissioning

    Decommissioning 10 Decommissioning WARNING The work described in this section is only to Risk of personal injury due to pressurized be performed by personnel appropriately components and process medium being qualified to carry out such tasks. discharged. Î Do not loosen the screw of the test con- nection while the valve is pressurized.
  • Page 72 Decommissioning (e.g. due to seizing up after remaining in 2. Completely drain the pipelines and the same position for a long time), re- valve. lease any stored energy in the actuator 3. Disconnect and lock the pneumatic air (e.g. spring compression). See associat- supply to depressurize the actuator.

  • Page 73: Removal

    Removal 11 Removal WARNING WARNING The work described in this section is only to Risk of personal injury due to residual be performed by personnel appropriately process medium in the valve. qualified to carry out such tasks. While working on the valve, residual me- dium can flow out of the valve and, depend- ing on its properties, cause personal injury, WARNING...

  • Page 74: Removing The Valve From The Pipeline

    Removal springs is transmitted to the actuator stem 3. Remove the valve from the pipeline (see and the stem (9). the 'Shipment and on-site transport' sec- Î First remove the actuator from the valve tion). or ensure it cannot transmit any forces to 11.2 Removing the actuator the actuator stem before removing the anti-rotation fixture on the plug stem.

  • Page 75: Repairs

    Î Do not perform any repair work on your ration on Decontamination) to the out- own. side of your shipment so that the docu- Î Contact SAMSON's After-sales Service ments are clearly visible. for service and repair work. 4. Send the shipment to the address given on the RMA.
  • Page 76 12-2 EB 8256 EN...

  • Page 77: Disposal

    Disposal 13 Disposal SAMSON is a producer registered at the following European institution u https://www.ewrn.org/national- registers/national-registers. WEEE reg. no.: DE 62194439/ FR 02566 Î Observe local, national and internation- al refuse regulations. Î Do not dispose of components, lubricants and hazardous substances together with your household waste.
  • Page 78 13-2 EB 8256 EN...

  • Page 79: Certificates

    The declaration is provided on the next page: − Declaration of conformity in compliance with Machinery Directive 2006/42/EC for Types 3286-1 and 3286-7 Control Valves The certificate shown was up to date at the time of publishing. The latest certificates can be found on our website: u www.samsongroup.com >...
  • Page 80 Certificates 14-2 EB 8256 EN...

  • Page 81: Annex

    Annex 15 Annex 15.1 Tightening torques, lubricants and tools u AB 0100 for tools, tightening torques and lubricants 15.2 Spare parts Body Screw plug (test connection) Bonnet (with connecting pipe) Ring nut/ring Yoke Packing ring Seat Seal Plug Support Screw Guide bushing Screw Threaded bushing Threaded pin...
  • Page 82 15-2 EB 8256 EN...
  • Page 83 EB 8256 EN 15-3...

  • Page 84: After-Sales Service

    You can reach our after-sales service at aftersalesservice@samsongroup.com. Addresses of SAMSON AG and its subsid- iaries The addresses of SAMSON AG, its subsid- iaries, representatives and service facilities worldwide can be found on our website (www.samsongroup.com) or in all SAMSON product catalogs.
  • Page 88 EB 8256 EN SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 samson@samsongroup.com · www.samsongroup.com...
