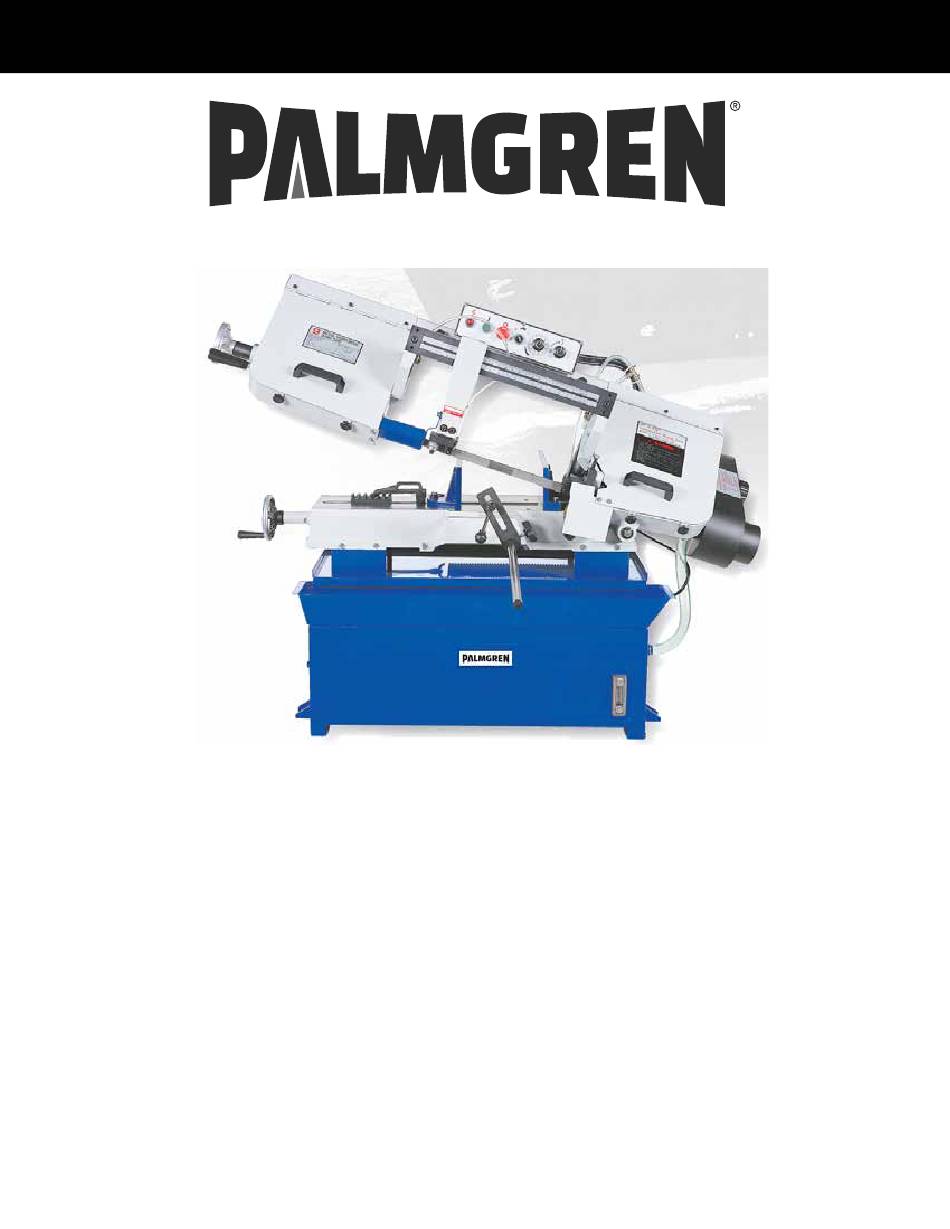

- Page 1 Operating Instructions & Parts Manual 9” x 16” Variable Speed Horizontal Bandsaw Model 9683314 965102001 - 01/24...
- Page 2 INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. PLEASE REFER TO BACK COVER FOR INFORMATION REGARDING PALMGREN’S WARRANTY AND OTHER IMPORTANT INFORMATION. Model #: ___________________ Serial #: ___________________ Purch. Date: _______________ © 2024 Palmgren Electric Manufacturing Co. All Rights Reserved...
-
Page 3: Getting Started
GETTING STARTED Transport Severe or fatal injuries may occur if the Save this manual machine is moved improperly. Follow the instructions and information on the transport crate. Check You will need this manual for the safety warnings and that the lifting and load suspension equipment has sufficient precautions, assembly instructions, operating and maintenance load capacity and that it is in perfect condition. - Page 4 with approved safety equipment. Always wear OSHA/NIOSH approved, properly fitting face mask or respirator when using Think safety! Safety is always a combination of operator such tools. common sense and alertness when tool is being used. Installation Safety Operating Safety •...
-
Page 5: Specifications
SPECIFICATIONS INSTALLATION Mounting and Leveling Description Palmgren Variable Speed Horizontal Bandsaw 9” x 16” Position the bandsaw in the desired location. Ensure there is access to the electrical paned and that the panel is located close Model number 9683314 to the 240VAC power source. -
Page 6: Operation
Starting and Stopping the Bandsaw The saw frame must be in the raised position before starting the machine. The machine is started by pushing the start button (A) Figure 4, and will continue to run until the saw frame is in the down position at the end of the cut, or when the stop button (B) is pushed. -
Page 7: Blade Tracking Adjustment
guides, finish putting tension on the blade. Proper tension is achieved when the pointer is on the left mark of the blade tension scale behind the driven wheel. 12. Reconnect the power source. Briefly turn the power “on” and “off” to be sure the blade is in place and tracking properly. If blade is not tracking properly refer to the section tracking the blade. - Page 8 Adjusting Feed Rate Automatic Shut-Off Adjustment When the hydraulic oil regulating micro switch (Figure 10, A) is The motor should shut off immediately after the blade has cut turned all the way clockwise, the saw frame will not move down. through the material and just before the head comes to rest on By turning the feed control valve counter-clockwise, you regulate the horizontal stop bolt.
-
Page 9: Vise Adjustment
TROUBLESHOOTING Vise Adjustment To position the moveable vise jaw: Make certain that the bandsaw is See Figure 14. Turn vise handwheel (A) 1/2 turn counter- disconnected from power source before attempting to clockwise. service or remove any component. Move rack block (B) to desired location by sliding along the bed. -
Page 10: Parts List
PARTS LIST Figure 16. Parts Diagram - Sheet 1 of 2... - Page 11 Figure 17. Parts Diagram - Sheet 2 of 2...
- Page 12 Ref. Description Part No Ref. Description Part No Base 965102501 26-2 Set Screw M6x8 Wire Protector 965102601 27-1 Rack 965105201 Power Cord 965102701 28-1 Rack Block 965105301 Hex. Cap Bolt M12x65 29-1 965105401 Nut M12 Closed Bearing HK25 15 965105501 Washer M6 30-1 Bushing...
- Page 13 Ref. Description Part No Ref. Description Part No Key 7MM 965110301 Spring 965107501 Angle Scale 965107601 Pulley Cover 965110401 61-1 Rivet 965107701 96-1 Lock Knob 1/4” 965110501 Hex. Cap Bolt M12x40 Gear Box Pulley 965110601 Washer M12 Belt A.39 965110701 63-1 Lock Washer M12 Motor Pulley...
- Page 14 Ref. Description Part No Ref. Description Part No Guide Bracket-Left 965111901 155-3 Washer M12 124-1 Set Screw M8x16 Stand Bolt M12x50 Washer M8x25 Blade Guard 965113501 Ball Bearing 6201LBZZ 157-1 Blade Guard-Down 965113601 Eccentric Sleeve 965112001 Lock Knob 1/4x10 965113701 127-1 Centric Sleeve 965112101...
- Page 15 Ref. Description Part No Nut M16 191-1 Set Screw M6x8 Hex. Socket Cap Screw M8x20 Hex. Socket Cap Screw M12x20 193-1 Washer 965117001 Hex. Cap Bolt M16x30 Hex. Cap Bolt M10x60 Lock Washer M10 Pulley Cover 965117101 V96-1 Pulley Cover Plate 965117201 V96-2 Knob 3/8”...
- Page 16 PALMGREN WARRANTY C. H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.
