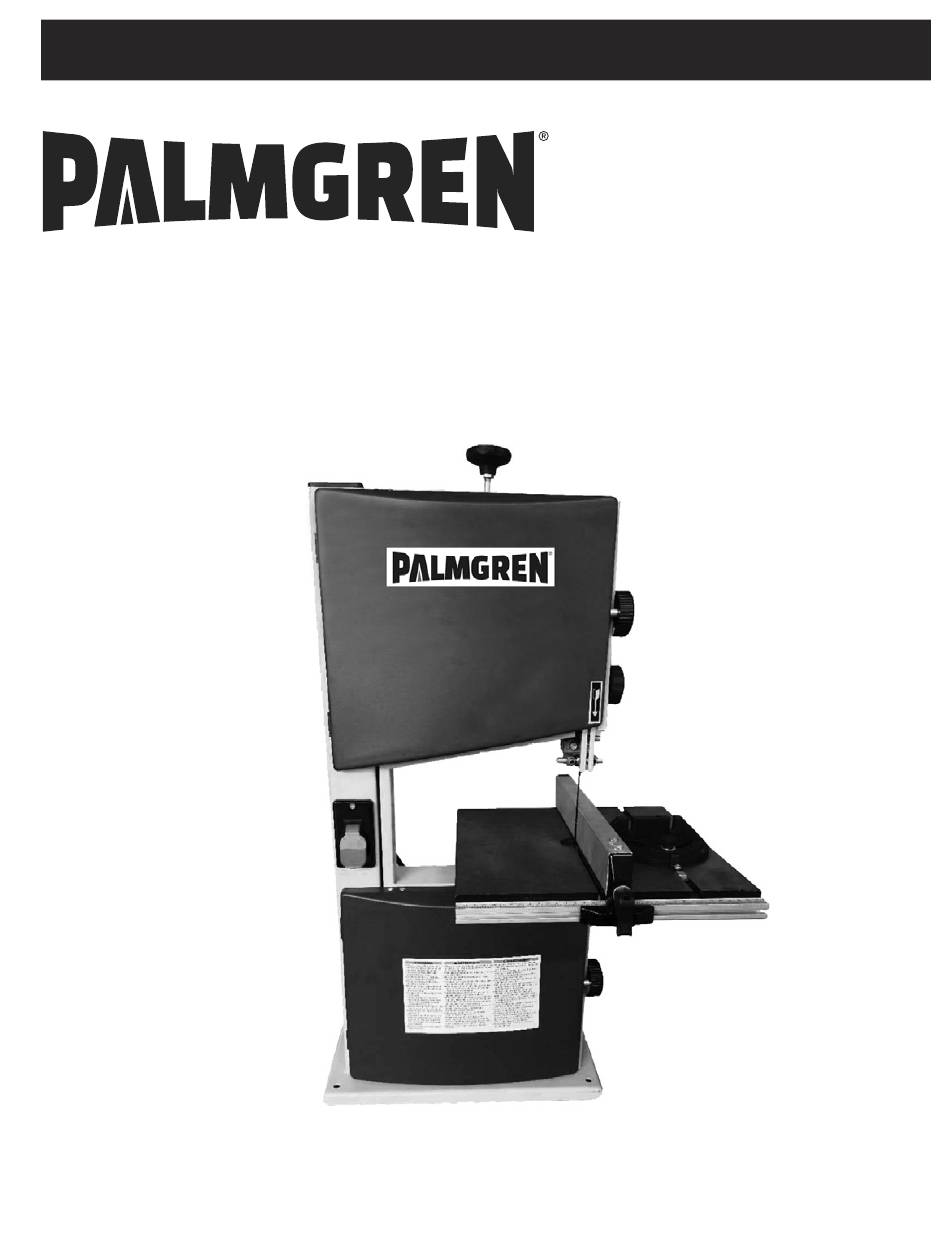

Operating Manual & Parts List
9683127
10˝
bench top
Band Saw
Read carefully and follow all safety rules and operating
instructions before first use of this product.
9645960.01-0820

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9683127 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Palmgren 9683127

Summary of Contents for Palmgren 9683127

  • Page 1 Operating Manual & Parts List 9683127 10˝ bench top Band Saw Read carefully and follow all safety rules and operating instructions before first use of this product. 9645960.01-0820...

  • Page 2: Getting Started

    Palmgren Operating Manual & Parts List 9683127 INSPECT: GETTING STARTED After unpacking the unit, carefully inspect for any damage that may have occurred during transit. Check for loose, missing or damaged STRUCTURAL REQUIREMENTS parts. Shipping damage claims must be filed with the carrier.

  • Page 3: Specifications

    9683127 SAFETY RULES (CONTINUED) SPECIFICATIONS TOOL SHOULD BE MAINTAINED The Palmgren 10" Bench Top Band Saw features welded steel frame • Always unplug tool prior to inspection. construction and a solid cast iron table surface to insure durability. It •...
  • Page 4 Palmgren Operating Manual & Parts List 9683127 ASSEMBLY (CONTINUED) FASTEN GUIDE RAIL Refer to Figure 4. CENTERING THE TABLE Refer to Figure 1. • Fasten the guide rail with four hex bolts and washers to the table. 1. Loosen the four hex bolts mounting the table to the upper table trunnion.

  • Page 5: Installation

    Palmgren Operating Manual & Parts List 9683127 ASSEMBLY (CONTINUED) GROUNDING INSTRUCTIONS WARNING: Improper connection of equipment grounding conductor USE SUITABLE DUST COLLECTOR can result in the risk of electrical shock. Equipment should be Refer to Figure 6 and 8. grounded while in use to protect operator from electrical shock.

  • Page 6: Operation

    Palmgren Operating Manual & Parts List 9683127 INSTALLATION (CONTINUED) • Make sure that the blade tension and blade tracking are properly adjusted. Many cover plate screws, water pipes and outlet boxes are not • Make “relief” cuts before cutting long curves.
  • Page 7 Palmgren Operating Manual & Parts List 9683127 OPERATION (CONTINUED) 2. Set the blade guide to the required height by turning the guide post adjusting knob. 4. Loosen the blade tension by turning the blade tension knob on 3. Tighten guide post locking knob after setting.
  • Page 8 Palmgren Operating Manual & Parts List 9683127 OPERATION (CONTINUED) ALIGNING THE LOWER BLADE GUIDE The lower blade guide consists of: Guide • A thrust bearing (supporting the band saw blade from the rear). Bearings • Two guide bearings (providing lateral support).

  • Page 9: Maintenance

    Palmgren Operating Manual & Parts List 9683127 OPERATION (CONTINUED) BEVEL CUTTING Perform bevel cutting by tilting table to desired degree. NOTE: Do not adjust the fence handle such that excessive pressure is 1. Unlock table by loosening locking handle located on the exerted during operation - this may lead to deformation of the end backside of the unit.
  • Page 10 Palmgren Operating Manual & Parts List 9683127 Figure 21 - Replacement parts illustration for 10˝ Bench Top Band Saw.
  • Page 11 Palmgren Operating Manual & Parts List 9683127 REPLACEMENT PARTS LIST OR 10˝ BENCH TOP BAND SAW. Ref. Ref. Description Part No. Qty. Description Part No. Qty. Lower Door 9642921.01 Angle Gauge 9642953.01 Hex Socket Head Bolt M6 × 16 Bearing 625-2Z Spacer Bushing 9642922.01...
  • Page 12 Palmgren Operating Manual & Parts List 9683127 Figure 23 - Replacement parts illustration for 10˝ Bench Top Band Saw (continued).
  • Page 13 Palmgren Operating Manual & Parts List 9683127...

  • Page 14: Troubleshooting

    Palmgren Operating Manual & Parts List 9683127 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION The machine does not work when 1. No power supply. 1. Check the cable for breakage. switched on. 2. Defective switch. 2. Replace the lock switch. 3. Defective motor.
  • Page 15 Palmgren Operating Manual & Parts List 9683127 NOTES...
  • Page 16 PALMGREN WARRANTY C.H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.
