Summary of Contents for Palmgren 9683151

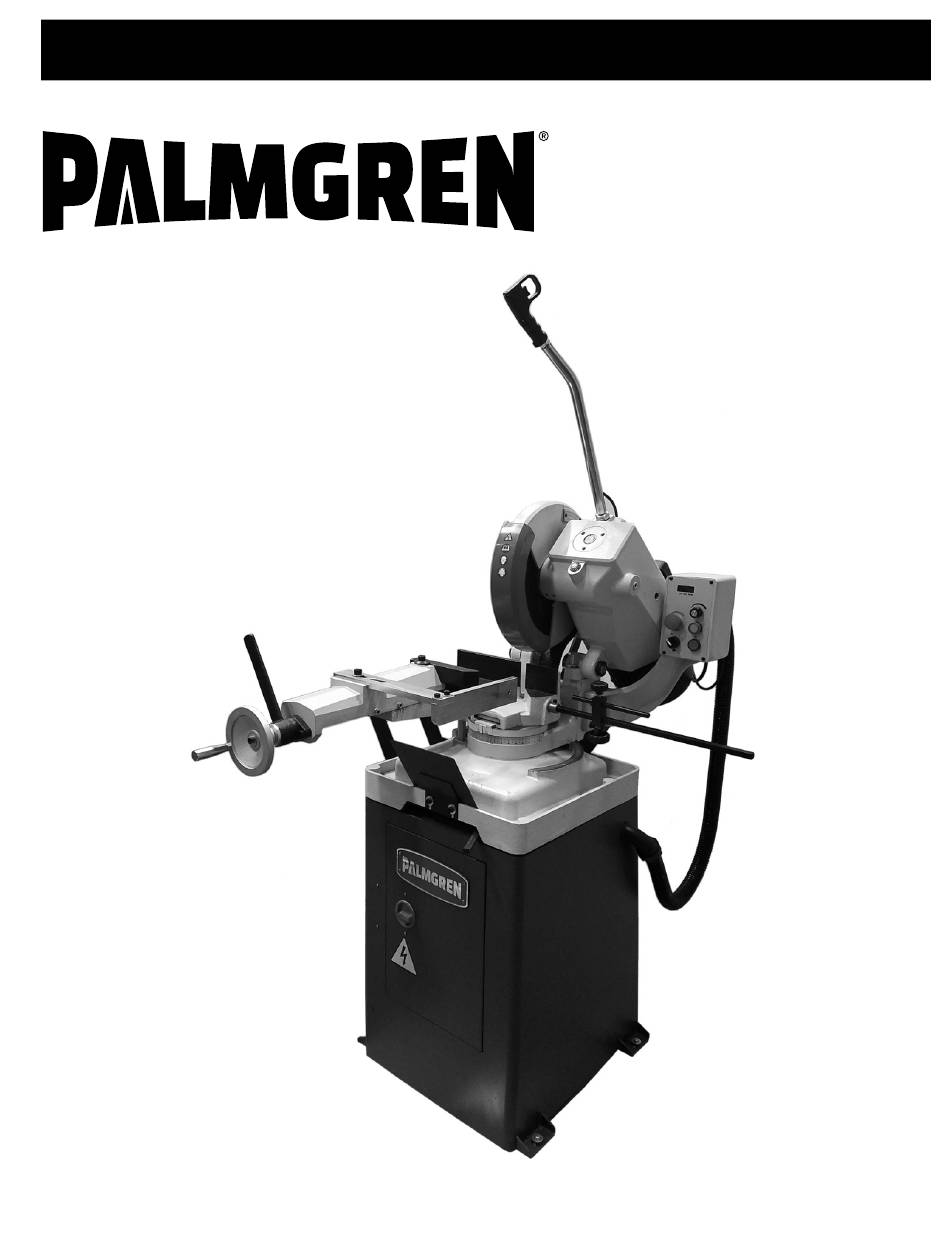

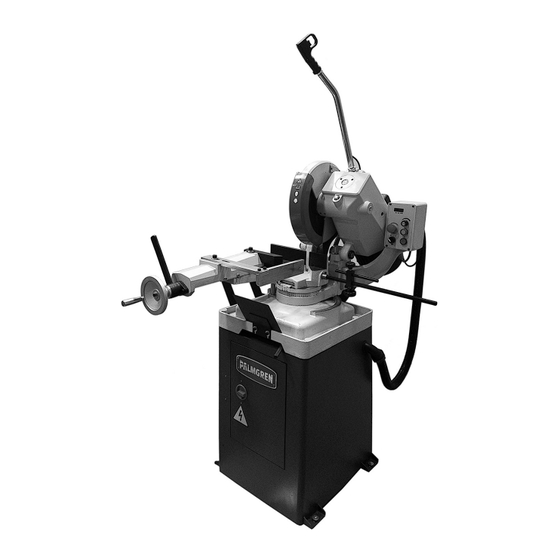

- Page 1 Operating Manual & Parts List 9683151 & 9683154 14˝ variable speed Cold Saws 9683151 3-phase and 9683154 1-phase Read carefully and follow all safety rules and operating instructions before first use of this product. 965197301-0524...
-
Page 2: Table Of Contents
Coating can be easily removed with mild solvents, such as mineral • Circuit for 9683151 must provide 230 V at 9.9 A, 3-phase, 60 Hz. spirits, and a soft cloth. • Circuit for 9683154 must provide 230 V at 9.9 A, 1-phase, 60 Hz. -
Page 3: Specifications
Palmgren Operating Manual & Parts List 9683151 & 9683154 PREPARING FOR YOUR JOB SPECIFICATIONS • Wear proper apparel. Do not wear loose clothing, neckties, rings, bracelets or other jewelry which may get caught up in moving 9683151 9683154 parts of machine. Do NOT wear gloves. -
Page 4: Know Your Machine
Palmgren Operating Manual & Parts List 9683151 & 9683154 SAFETY RULES (CONTINUED) B Main Support Frame: The central part of the assembly, houses the gear system and oil tank. • Firmly clamp workpiece in vise. Do NOT hold with your hands. -
Page 5: Installation
Palmgren Operating Manual & Parts List 9683151 & 9683154 KNOW YOUR MACHINE (CONTINUED) ANCHORING THE MACHINE • Position the machine on a firm and level concrete floor. SUPPORT ROLLER • Ensuring machine is sitting level. Device that support longer sized material. The roller assists stock •... -
Page 6: Assembly
Palmgren Operating Manual & Parts List 9683151 & 9683154 ATTACH BAR STOP TO VISE ASSEMBLY 1. Insert the threaded end of long rod (A) into the side of the vise. 2. Turn the long rod clockwise until snug. ATTACH CONTROL LEVER TO HEAD ASSEMBLY 3. -
Page 7: Operation
Palmgren Operating Manual & Parts List 9683151 & 9683154 ASSEMBLY (CONTINUED) OPERATION INSTALL FRONT AND BACK SPLASH PLATES • To obtain good break-in of the machine, it is advisable to start 1. Insert short, front splash plate onto the front sidewall of using it at intervals of about half an hour. - Page 8 Palmgren Operating Manual & Parts List 9683151 & 9683154 OPERATION (CONTINUED) MITER ANGLE • Use the miter lock lever (A) to release the saw blade head assembly. Figure 22 - Miter angle, miter lock lever. • Rotate the saw blade head assembly to the correct miter angle.
- Page 9 Palmgren Operating Manual & Parts List 9683151 & 9683154 OPERATION (CONTINUED) ADJUSTING THE MACHINE WARNING: Before performing the following operations, the electric power supply and the power cable must be completely disconnected. • Before carrying out any repairs to the machine, consult a technician.
-
Page 10: Maintenance
If necessary, cover the machine. 1. Remove the connecting plug from the electric box and unscrew WIRING DIAGRAM AND PARTS LIST Figure 32 - 14˝ variable speed cold saw electrical box. Figure 33 - Wiring diagram for 3-phase model 9683151. - Page 11 Palmgren Operating Manual & Parts List 9683151 & 9683154 WIRING DIAGRAM AND PARTS LIST (CONTINUED) Figure 34 - Wiring diagram for single phase model 9683154. Item Description and Technical Data Qty. Suppliers Reference Remarks Name Function 20x5mm 250V Fuses 0.5A 0.5A...
-
Page 12: Troubleshooting
Palmgren Operating Manual & Parts List 9683151 & 9683154 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Tooth breakage 1. Cutting too fast. 1. Reduce cutting pressure and/or blade speed. 2. Wrong cutting speed. 2. Match blade diameter and cutting speed to mate- rial being cut. - Page 13 Palmgren Operating Manual & Parts List 9683151 & 9683154 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Streaked cuts / 1. Blade diameter incorrect/too large. 1. Match saw blade to material cutting specs. Ridges on the cutting surface 2. Vise grip is ineffective.
- Page 14 Palmgren Operating Manual & Parts List 9683151 & 9683154 TROUBLESHOOTING THE INVERTER Error Code Display Description Error Code Display Description Over-current Over-voltage during during accerleration acceleration Over-current Over-voltage during during deceleration deceleration Over-voltage Over-current during constant at stop speed Over-current...
- Page 15 Palmgren Operating Manual & Parts List 9683151 & 9683154 TROUBLESHOOTING THE INVERTER Error Code Display Description Error Code Display Description Low-voltage Over load during acceleration. Error Cause Corrective Action Low-voltage 1. Check if the motor is overloaded. during 2. Make sure the motor is not deceleration.
- Page 16 Palmgren Operating Manual & Parts List 9683151 & 9683154 TROUBLESHOOTING THE INVERTER Error Code Display Description Error Code Display Description STO1–SCM1 PLC operation PL_ _ STL1 internal loop function code error detection error Error Cause Corrective Action Safety Torque Off...
- Page 17 Palmgren Operating Manual & Parts List 9683151 & 9683154 NOTES...
-
Page 18: Parts Illustration And Parts List
Palmgren Operating Manual & Parts List 9683151 & 9683154... - Page 19 Palmgren Operating Manual & Parts List 9683151 & 9683154...
- Page 20 Palmgren Operating Manual & Parts List 9683151 & 9683154...
- Page 21 Palmgren Operating Manual & Parts List 9683151 & 9683154...
- Page 22 Palmgren Operating Manual & Parts List 9683151 & 9683154 NOTES...
- Page 23 Palmgren Operating Manual & Parts List 9683151 & 9683154 NOTES...
-
Page 24: Warranty
9683151 & 9683154 PALMGREN WARRANTY C.H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.
