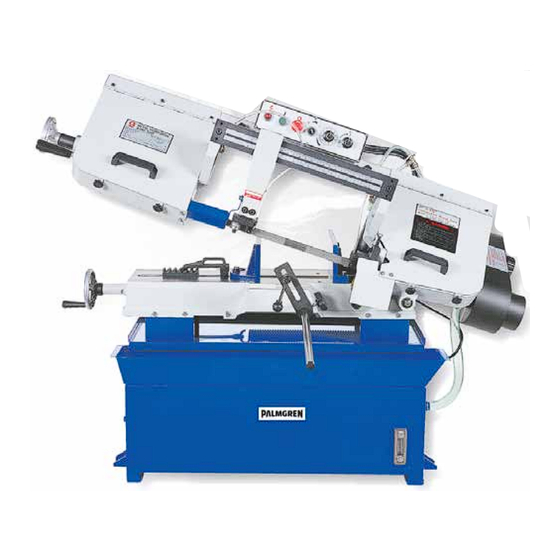

- Page 1 & parts list 9683314 ″ 9 X 16 METAL CUTTING BAND SAW Read carefully and follow all safety rules and operating instructions before first use of this product. 9641488.01-1216...
-
Page 2: General Safety Information
Palmgren Operating Manual & Parts List 9683314 DESCRIPTION GENERAL SAFETY INFORMATION WARNING: 9 x 16” Horizontal Metal Cutting Band Saw provides speed with For your own safety, read all of the instructions and quality of cut for fabrication shops, machine shops, mainte nance precautions before operating tool. - Page 3 Palmgren Operating Manual & Parts List 9683314 INSTALL MOTOR ASSEMBLY SAFETY INFORMATION (CONTINUED) Refer to Figure 17. • Remove socket head bolt, lock washer and flat washer (Ref. Nos. TOOL SHOULD BE MAINTAINED 45, 34 and 33) from side of motor mount plate (Ref. No. 42).
-
Page 4: Installation
Palmgren Operating Manual & Parts List 9683314 To rewire band saw to 240 volt, single phase operation: INSTALLATION • Rewire main motor to 240V. Refer to Figure 3 and motor nameplate for wiring schematic. Refer to Figures 1 – 7. -
Page 5: Grounding Instructions
Palmgren Operating Manual & Parts List 9683314 side of the adapter must be securely connected to a permanent INSTALLATION (CONTINUED) electrical ground such as a properly grounded water pipe, a properly grounded outlet box or a properly grounded wire system. -
Page 6: Automatic Shut-Off
Palmgren Operating Manual & Parts List 9683314 AUTOMATIC SHUTOFF OPERATION (CONTINUED) Refer to Figure 15. The limit switch (Ref. No. 44) is activated when the blade passes • After turning the switch on, let the blade come to full speed. -
Page 7: Removing Blade
Palmgren Operating Manual & Parts List 9683314 ADJUSTING GUIDE BRACKETS OPERATION (CONTINUED) Refer to Figure 18. • If the bearings are positioned properly and the blade is not BLADE GUIDES square, one or both blade guide brackets (Ref. Nos. 21 and 56) must be adjusted. -
Page 8: Tracking Adjustment
Palmgren Operating Manual & Parts List 9683314 TRACKING ADJUSTMENT OPERATION (CONTINUED) Refer to Figures 10, 11 and 17. The tracking is adjusted by positioning the idler wheel shaft (Ref. No. REPLACING THE BLADE 61). The positioning is done with the hex head bolts (Ref. No. 58) only •... - Page 9 Palmgren Operating Manual & Parts List 9683314 CUTTING FLUIDS OPERATION (CONTINUED) • Using a cutting fluid can improve the cutting conditions and keep them more consistent throughout the cut by: FEED PRESSURE a. Lubricating the blade, which reduces the friction between it •...
-
Page 10: Maintenance
Palmgren Operating Manual & Parts List 9683314 CHECK THE BLADE PATH OPERATION (CONTINUED) Before the saw is plugged in, check to see that blade path is clear and that: • Rounds and many sided regular cross-sections have thickness • All blade guards are in place. -
Page 11: Troubleshooting
Palmgren Operating Manual & Parts List 9683314 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Blade cuts (crooked) 1. Work not square 1. Adjust vise to be square with blade 2. Feed pressure too great 2. Reduce pressure by increasing spring tension 3. - Page 12 Palmgren Operating Manual & Parts List 9683314 TROUBLESHOOTING (CONTINUED) SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Motor stalls (resulting in blown fuses 1. Short circuit in motor; connections loose; or 1. Inspect terminals in motor for damaged or tripped circuit breakers) shorted terminals or worn insulation on lead...
- Page 13 Palmgren Operating Manual & Parts List 9683314 NOTES...
- Page 14 Palmgren Operating Manual & Parts List 9683314 Figure 15 – Repair Parts Illustration for Bed...
- Page 15 Palmgren Operating Manual & Parts List 9683314 REPLACEMENT PARTS LIST FOR BED Ref. Ref. Description Part No. Qty. Description Part No. Qty. Lead screw nut 9615579.00 1 10mm Lock washer 8-1.25 x 25mm Socket head bolt 10-1.5 x 30mm Socket head bolt Rack 9616346.00 1...
- Page 16 Palmgren Operating Manual & Parts List 9683314 Figure 16 – Repair Parts Illustration for Base...
- Page 17 Palmgren Operating Manual & Parts List 9683314 REPLACEMENT PARTS LIST FOR BASE Ref. Part Description Number Qty. Chip tray 9615616.00 10-1.5 x 30mm Hex head bolt 10mm Fiber washer 9615617.00 Coolant gauge assembly 9615618.00 10mm Flat washer 10-1.5mm Hex nut 5/16 x 51”...
- Page 18 Palmgren Operating Manual & Parts List 9683312 Figure 17 – Repair Parts Illustration for Head...
- Page 19 Palmgren Operating Manual & Parts List 9683312 REPLACEMENT PARTS LIST FOR HEAD Ref. Ref. Description Part No. Qty. Description Part No. Qty. Column † 8-1.25 x 10mm Set screw 12-1.75 x 20mm Socket head bolt 7 x 7 x 30mm Key 9615648.00 1...
- Page 20 Palmgren Operating Manual & Parts List 9683314 Figure 18 – Repair Parts Illustration for Blade Guide...
- Page 21 Palmgren Operating Manual & Parts List 9683314 REPLACEMENT PARTS LIST FOR BLADE GUIDE Ref. Ref. Description Part No. Qty. Description Part No. Qty. Bushing 9615667.00 1 Blade guard 9615681.00 1 1 x .032 x 119 ⁄ ” Blade 9615668.00 1 10-1.50 x 25mm Socket head bolt...
- Page 22 Palmgren Operating Manual & Parts List 9683314 Figure 19 – Repair Parts Illustration for Gear Box...
- Page 23 Palmgren Operating Manual & Parts List 9683314 REPLACEMENT PARTS LIST FOR GEAR BOX Ref. Part Description Number Qty. 35 x 55 x 8mm Oil seal 9615190.00 30207 Tapered roller bearing 9605855.00 6207 Bearing 1L020 Output shaft 9615191.00 7 x 7 x 45mm Key 9615641.00...
- Page 24 Palmgren Operating Manual & Parts List 9683314 Figure 20 – Repair Parts Illustration for Controls...
- Page 25 Palmgren Operating Manual & Parts List 9683314 REPLACEMENT PARTS LIST FOR CONTROLS Ref. Ref. Description Part No. Qty. Description Part No. Qty. Door 9615551.01 1 Clamp 9615550.00 3 6-1.0 x 30mm Socket head bolt Tee fitting 9615566.00 1 6mm Lock washer Plate 9615567.00 1...
- Page 26 Palmgren Operating Manual & Parts List 9683314 NOTES...
- Page 27 Palmgren Operating Manual & Parts List 9683314 NOTES...
-
Page 28: Warranty
• Accessories – 1 year The obligation of Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove deficient. Purchaser must lubricate and maintain the product under normal operating conditions at all times. Prior to operation become familiar with product and the included materials, i.e.
