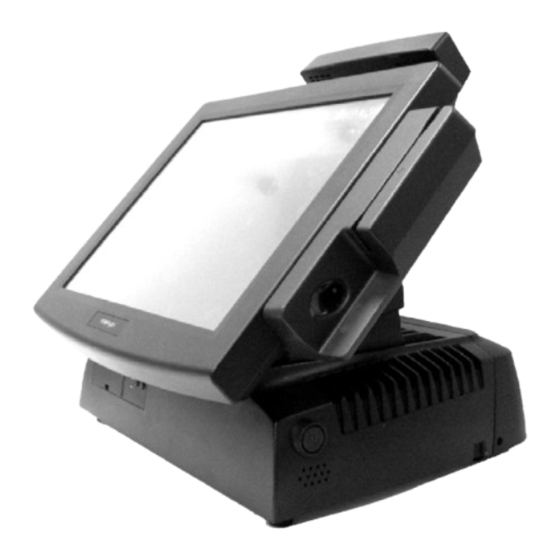

Fan free touch control desktop pos terminal

Advertisement

Quick Links

FT-6615
Fan Free Touch Control
Desktop POS Terminal
User's Manual
Rev.: Original
FCC Notes:
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference
to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
About This Manual:
Posiflex Technologies, Inc. has made every effort for the accuracy of the content in this
manual. However, Posiflex will assume no liability for any technical inaccuracies or
editorial or other errors or omissions contained herein, nor for direct, indirect,
incidental, consequential or otherwise damages, including without limitation loss of
data or profits, resulting from the furnishing, performance, or use of this material.
This information is provided "as is" and Posiflex expressly disclaims any warranties,
expressed, implied or statutory, including without limitation implied warranties of
merchantability or fitness for particular purpose, good title and against infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex Technologies, Inc. reserves the
right to alter product designs, layouts or drivers without notification. The system
integrator shall provide applicative notices and arrangement for special options utilizing
this product. The user may find the most up to date information of the hardware from
web
sites:
http://www.posiflex.com
or
http://www.posiflex.com.tw
or
http://www.posiflexusa.com
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex Technologies, Inc. will not be responsible for any loss of data
resulting from the use, disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Technologies, Inc. the publisher of this documentation.
© Copyright Posiflex Technologies, Inc. 2008
All brand and product names and trademarks are the property of their respective holders.
Part 1
P/N: 16610900010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-6615 and is the answer not in the manual?

Questions and answers

Summary of Contents for POSIFLEX FT-6615

  • Page 1 About This Manual: Posiflex Technologies, Inc. has made every effort for the accuracy of the content in this manual. However, Posiflex will assume no liability for any technical inaccuracies or editorial or other errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material.
  • Page 2 ALERT TO OUR HONORABLE CUSTOMERS: l Please always read thoroughly all the instructions and documents delivered with the product before you do anything about it. Don’t take any premature action before you have a full understanding of the consequences. l This product contains inside a Lithium battery and maybe also a sealed type Lead acid battery if the UPS battery option is ordered.
  • Page 3: Product Pictures

    INTRODUCTION PRODUCT PICTURES Front Views Detail inside front cover Side Views Part 3...
  • Page 4: Parts Identification

    Rear Views Detail inside back cover Please note that the picture for inside front and back cover is for reference only. The actual layout may disagree from this picture if there is any difference in model or options selected or in the system revision. Please follow the actual layout for cable connections in this case.
  • Page 5: Product Features

    14. Power switch button 15. Acoustic vent 16. Back cover release button 17. Reserved back cover lockup screw hole 18. Back cover 19. External power connector for power adaptor 20. Power adaptor 21. Internal power connector 22. UPS battery connector (for external UPS battery in stand models with SATA HDD RAID function and for internal UPS battery in option UPS model) 23.
  • Page 6 High quality 15” TFT active matrix LCD panel. Vertical type LCD panel with easy tilt angle adjustment from 10° to 45° Brightness control by 2 push buttons in front side of base Durable resistive type touch panel that endures 35 million touches min. at same spot (leading edge Infra Red type optional) Spill proof water resistant structure allowing easy cleaning Easy maintenance construction...
  • Page 7 Option Items: Note: The underlined items in the following list means that option must be set prior to shipment from the factory. The rest items can be set by the dealers. DDR2 SDRAM memory expansion up to 2GB RS232 interface Infra-Red type touch panel durable for 50 million touches min.
  • Page 8 NON-USER-INSTALLABLE OPTIONS When the FT-6615 system is ordered with options like expanded system memory or side mount upgrade kit, the option(s) is (are) already installed in the system delivered. Therefore, no more installation is required.
  • Page 9 UPS battery must be used instead. INSTALLING BASE MOUNT KIT (OPTION) When the FT-6615 series is ordered with the base mount upgrade kit like customer display PD-2603/2603U, PD-308/308U or PD-7623 option, the customer display together with the pole for installing them to rear of base will be delivered in separate package from the system unit.
  • Page 10: Side Mount Upgrade Kit

    Use the cable supplied with the cash drawer (Part No. 21863018010) for connection to the CR port in FT-6615 system. This cable has a 6-pole plug at one end and an 8-pole plug at the other. The 8-pole plug should be inserted into the connector marked: “signal cable from POS Printer”...
  • Page 11: Barcode Scanner (Option)

    BARCODE SCANNER (OPTION) When a PS/2 KB interface barcode scanner is installed in the system, a connection of a normal PS/2 keyboard or a Posiflex programmable keyboard could become obligatory by some OS. Therefore, if there will be no keyboard installed for such OS, it is advisory to use an USB interface type barcode scanner instead of the PS/2 KB interface type.
  • Page 12: Operating System Recovery

    PC veterans to accomplish such a task. Therefore, OS installation into a system without preloaded OS is highly discouraged. Posiflex shall not be responsible for any technical support to questions arisen due to non-preloaded...
  • Page 13 operation is required to bring the HDD’s to work. To perform the “RESET”, please use something like a ball pen tip or straightened end of paper clip to push and hold a hidden button for at least 10 seconds in a pin hole on bottom plate of the system as circled in the right picture when the system is powered on and then restart the system.
  • Page 14: Application Environment

    USING THE TOUCH TERMINAL APPLICATION ENVIRONMENT It is very important that you check the following operational guidelines: Ventilation This terminal must NOT be operated in an environment with restricted ventilation. There must be at least 25 mm air clearance around any top or side ventilation holes with a free flow of air around the unit at ALL times for the installation.
  • Page 15: Power On/Off

    connected there but found inoperable by such messages. Emergency treatment: The battery is constructed maintenance free and leakproof. It is well protected in FT system as long as the ambient temperature remains below 30°C and the ventilation of the FT system remains free. However, should any accident happen and the sulfuric acid from the battery spills on skin or clothing, wash immediately with water.
  • Page 16 LED will keep on flashing for few seconds before steady till the AC supply is stable. Power ON/OFF control The FT-6615 system implements electronic power control, such that the main power to the system may be controlled by many methods as below: Hardware power switch...
  • Page 17: Display Issues

    mode and it takes about 10 seconds if the hardware switch is set to “ON only” mode. If there appears to be some serious trouble for system restart or even this emergency power off, please disconnect the UPS battery if installed and the AC power supply for few minutes.
  • Page 18 Posiflex monitor, use the DC adaptor to connect into the monitor or use Posiflex VGA + power cable and set an internal jumper in FT main board to supply the required power through the VGA connector. Do not connect other monitor to this port before the power in this port is disabled.
  • Page 19: Serial Ports - Com1/2/3/4

    Mouse Emulation The touch panel in FT system uses USB interface as standard. Only the optional InfraRed type touch panel of FT-6615 uses RS232 interface. When the touch driver is properly installed, this touch panel works exactly like a standard mouse for both interfaces. However, if the system is running under safe mode, most drivers are disabled in this mode and the touch panel calibration is therefore not guaranteed.
  • Page 20 Posiflex USB Touch Manager A program named “Posiflex USB Touch Manager” and a right-click sticky button tool in the program group “Posiflex USB Touch Tools” is installed in the preloaded Windows system with a USB interface touch panel controller. This program can also be obtained by download from the POSIFLEX web site.
