Summary of Contents for Mount-It! MI-307

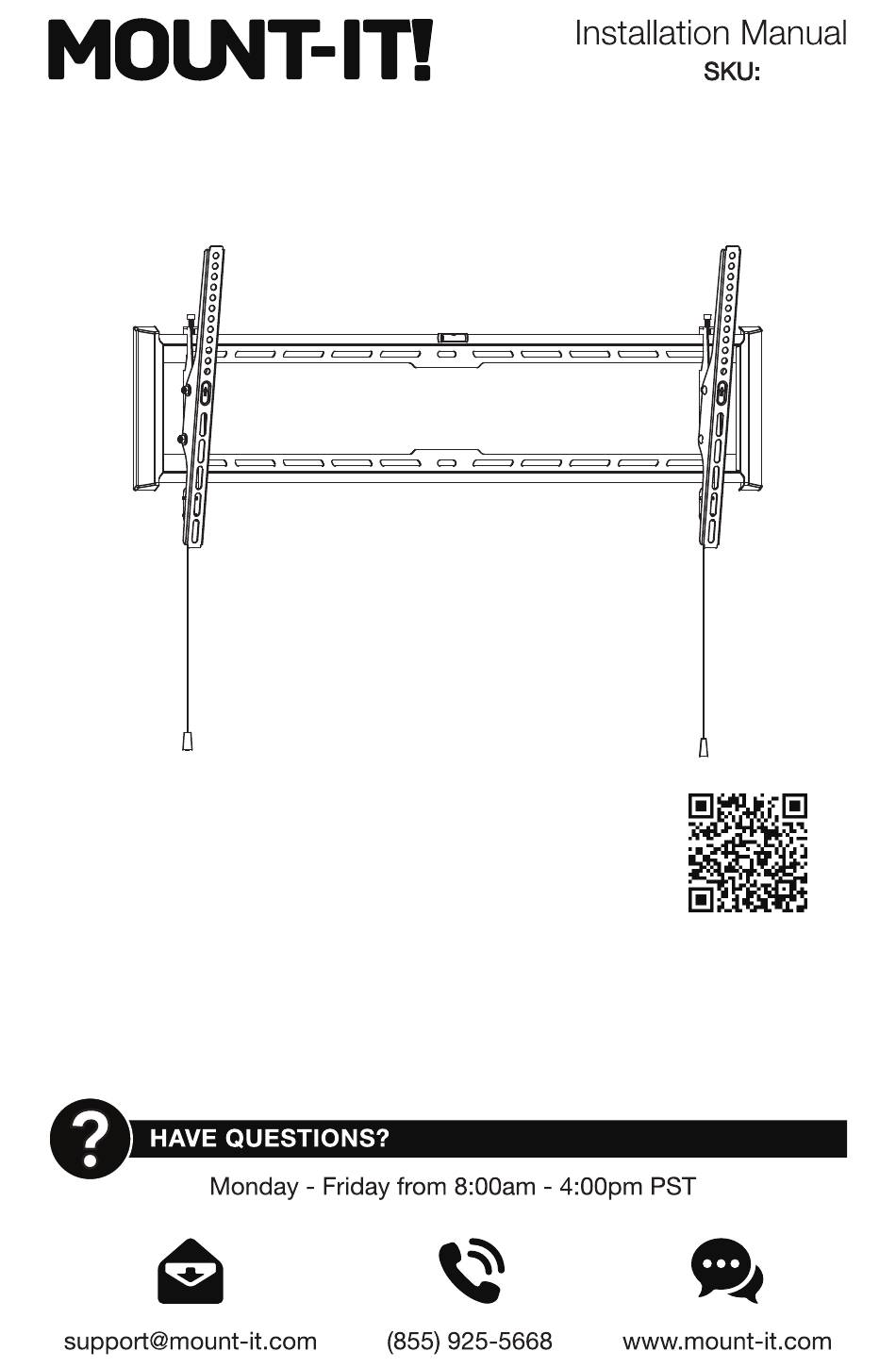

- Page 1 MI-307 Please scan this QR code to visit the product page. ULTRA-SLIM & HEAVY-DUTY TV WALL MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Wall Mount VESA Bracket VESA Bracket Mount-It! Bubble Level Wrench Hex Wrench TV Mounting Hardware Wall mounting hardware Lag Screw Concrete Anchor 5mm Spacer 15mm Spacer Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 Step 2 Wood Stud Installation Option Concrete/Brick Installation Option • Use a stud finder to locate the center of the studs and hold Wall Mount(#A) to the wall in the desired • Hold the Wall Mount(#A) to the wall in the desired mounting location. mounting location.
- Page 4 Step 2 Step 3 Hang the TV on the Wall Mount Attaching the VESA Brackets to the TV • Select the appropriate size mounting bolt (Select one size #M-A, M-B, M-C, or M-D) and washer (M-E) • It is recommended that you use the assistance of a second person for this step. Hang the TV on the for your display’s mounting holes and verify the length of the VESA bolt is not too long.
