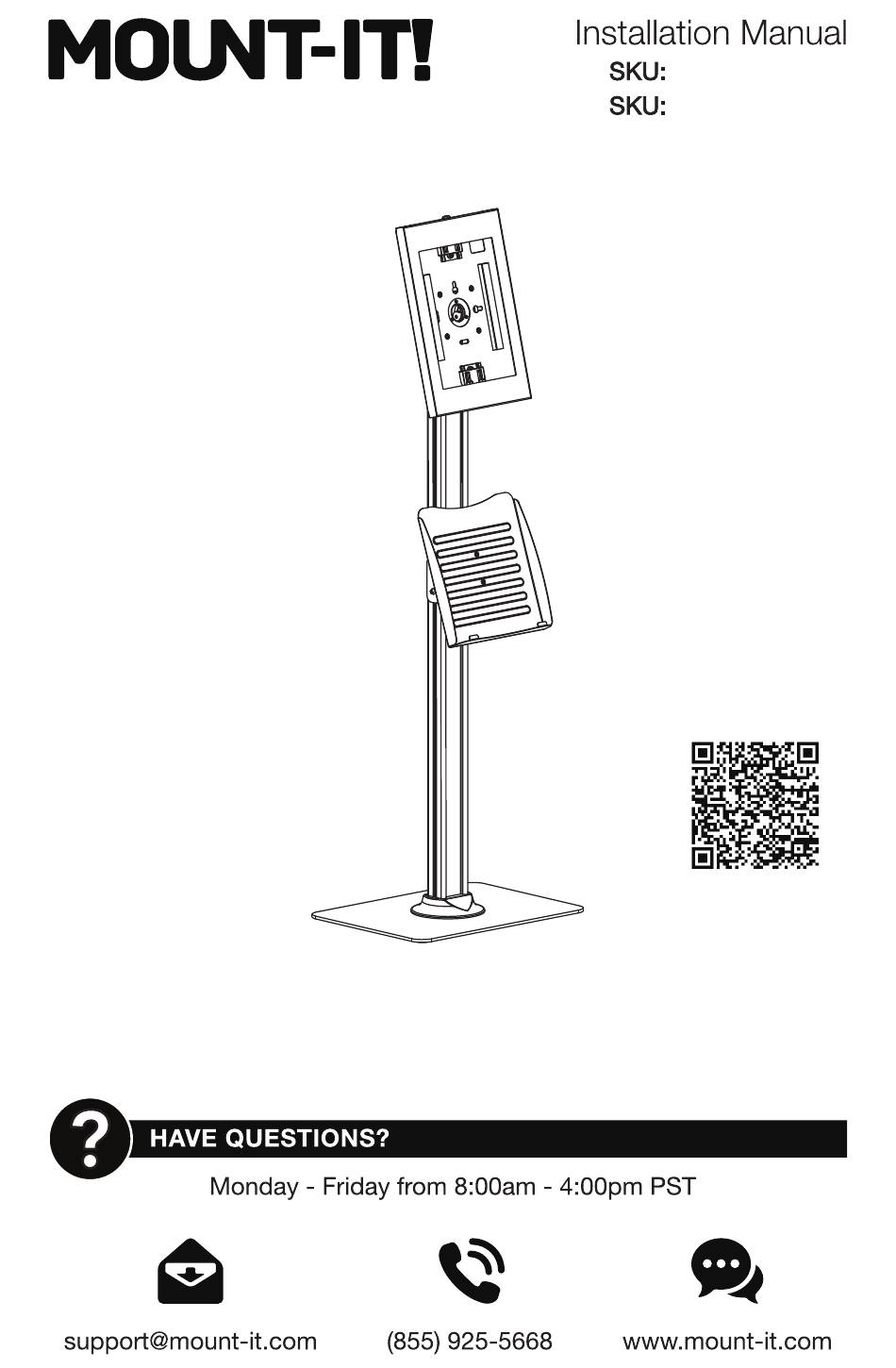

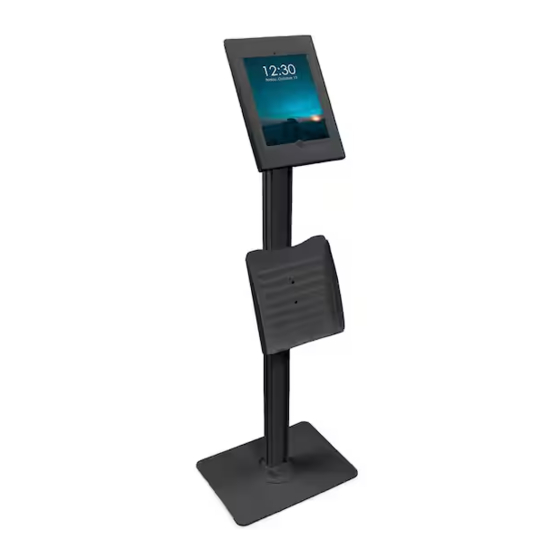

- Page 1 MI-3770B_G10 MI-3770W_G10 Please scan this QR code to visit the product page. TABLET FLOOR STAND WITH DOCUMENT HOLDER...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! A (x1) B (x1) C (x1) D (x1) E (x4) Anti-Theft Tablet Case Column Connector Document Tray Rubber Pad Connector Mount-It! M (x4) F (x1) G (x1) H (x4) I (x4) J (x1) K (x2) L (x4)
-
Page 3: Attach The Base
Step 1 Step 2a-3 Location and Use Options A. Positioning and Use Install the Document Tray Connector • The stand may be placed directly on the floor for • In the orientation shown here, slide the Document Tray Connector (#C) onto the Column (#B) from the use or can be secured following the instructions in base and position it approximately halfway up the column. - Page 4 Step 2b-2 C. Concrete Surface Installation A. Wood Surface Installation • To secure the stand base to a concrete surface, use a 3/8” Bit and drill holes to a depth of 2.4”. Clear • To secure the stand base to a wood surface, use a 3/16” bit and drill holes to a depth of 2.2” and secure any dust and debris from the holes and insert 2x Concrete Anchors (#I).
- Page 5 Step 3 Step 4 Open the Tablet Case Attach the Tablet Case to the Column • To open the Tablet Case (#A) insert the Key (#J) and turn counterclockwise to unlock(clockwise to lock.) • Attach the back half of the Tablet Case to the end of the column using Bolts (#L) through the 4 bolt holes on the interior of the Case in the orientation shown here.
- Page 6 Step 5 Step 6 Select the Tablet Adapter Lock the Case • Select the Tablet Adapter (#U1, U2, U3) for your tablet (see the table below for compatibility) and attach • Insert the key into the lock and turn the key clockwise to lock the case it over the tablet inside the case using the 4 Bolts (#R).
-
Page 7: Step 8 Viewing Angle Adjustment
Step 8 Step 9 Viewing Angle Adjustment Final Adjustments • If the use of the tablet camera is required, ensure the camera is visible through the hole on the rear of • The tablet case can be rotated 90 degrees to alternate between landscape and portrait orientation and the case. -
Page 8: Optional Wall Mount Instructions
Optional Wall Mount Instructions B. Wood Stud Installation Option – 2 Screws A. Concrete/Stone Installation Option – 4 Screws • Using a bubble level to ensure a straight installation, hold the anti-theft case against the wall in the • Using a bubble level to ensure a straight installation, hold the anti-theft case against the wall in the desired location and use a pencil to mark the wall through the teardrop shaped bolt hole indicated here, desired location and use a pencil to mark the wall through the 4 bolt holes in the case.
