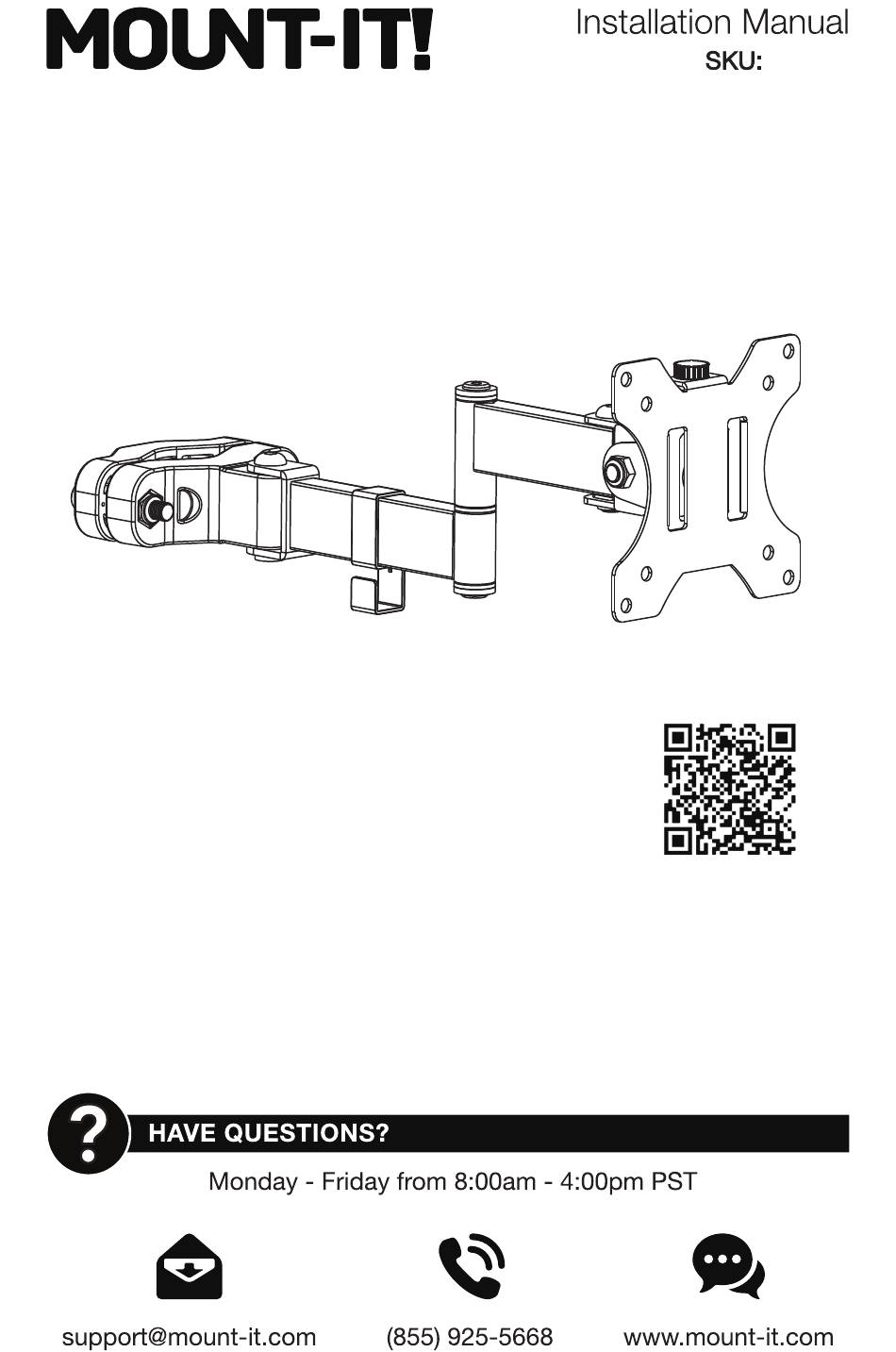

- Page 1 MI-391 Please scan this QR code to visit the product page. FULL MOTION MONITOR POLE MOUNT ARM...
-
Page 2: Package Contents
Thank you for choosing Mount-It PACKAGE CONTENTS Mount-It! Mount-It! A (x1) B (x1) Mount Arm VESA Plate C (x1) M8x70 (x2) E (x1) (x1) Thumb Screw Cable Clip Alternate Bolt Hex Wrench VESA MOUNTING HARDWARE M4x12 (x4) M4x16 (x4) M5x12 (x4) M5x16 (x4 D5 (x4 φ8xφ15x5 (x4) - Page 3 Step 1a Step 2a Attaching the VESA Plate (No Spacers) Attaching the Mount Arm (Pole Diameters Between 1.1"-1.77") • Select the appropriate size mounting bolt (#M-A, M-B, M-C, M-D) and washer (#M-E) for your display’s mounting holes and verify the length of the VESA bolt is not too long. If you are unsure of the correct bolt size for your display refer to your TV user manual or contact the TV manufacturer for sizing information.
- Page 4 Step 3 Step 5 Connecting the VESA Plate to the Mount Arm Final Adjustments • Slide the VESA plate onto the end of the Mount Arm as shown, then secure it in place using the Thumb • The screen can be tilted forward or backward in a range of +30° to -30°. It may be turned left or right Screw (#C).
