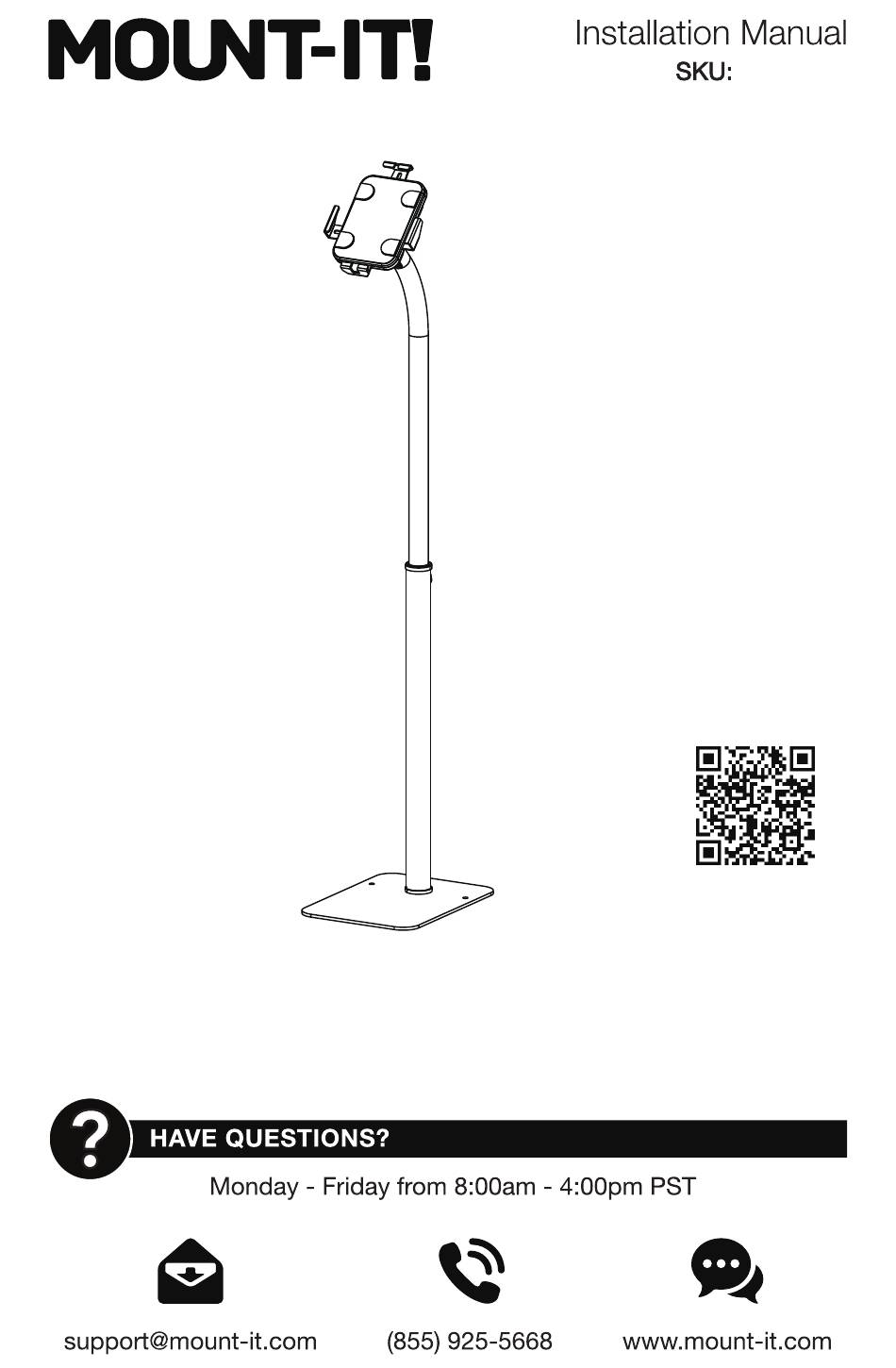

- Page 1 MI-3870B Please scan this QR code to visit the product page. UNIVERSAL ANTI-THEFT TABLET HOLDER...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! A (x1) B (x1) C (x1) D (x1) E (x1) Anti-Theft Tablet Case Mounting Plate Base Pole Pole End Cap Mount-It! F (x1) G (x4) H (x4) I (x4) J (x1) K (x1) L (x3) M (x4)
- Page 3 Step 1 Step 3 Assemble the Anti-Theft Case Installing the Pole • Connect the Anti-Theft Tablet Case (#A) to the Mounting Plate (#B) using 4x M5x20 Bolts (#M) through • Install the Pole (#D) to the Base (#C) through the Pole End Cap (#E) as shown in the magnification by using M5x16 Bolts (#L) and 3mm Hex Wrench (#T).
- Page 4 Step 5 Step 7 Height Adjustment and Cable Management Connect the Anti-Theft Tablet Case to the Pole • Connect the Anti-Theft Tablet Case to the Pole by inserting the back of the case into the joint as • Adjust the height of the pole by loosening shown, then connect it using the parts in the order shown here.
