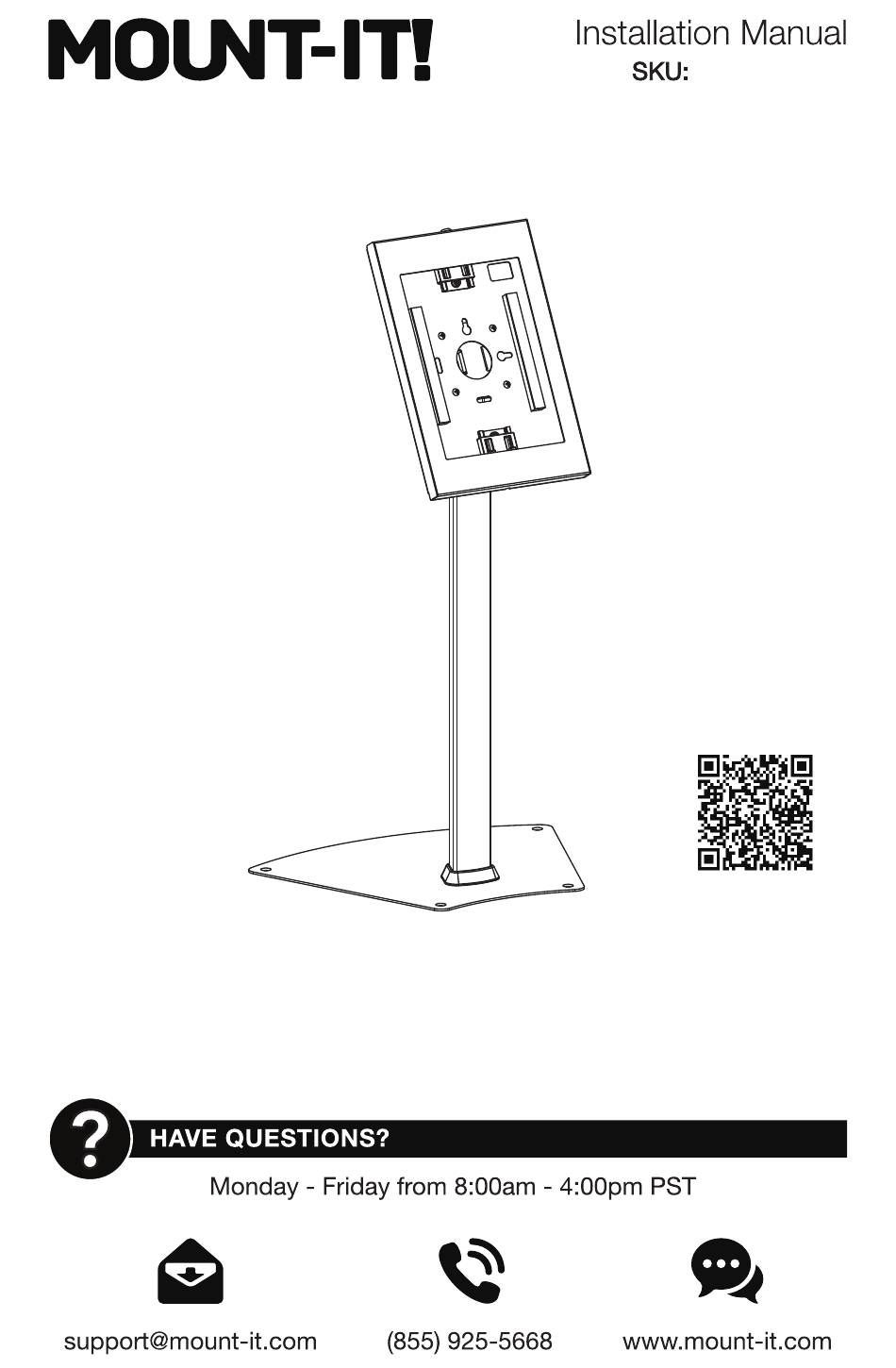

- Page 1 MI-3783_G10 Please scan this QR code to visit the product page. ANTI-THEFT TABLET FLOOR STAND WITH HEIGHT ADJUSTMENT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! B (x1) C (x1) D (x4) E (x4) F (x4) G (x1) Base Base Connector M6x16 ST5.5x38 Concrete Anchor Hex Wrench Lag Screw Mount-It! H (x4) I (x2) J (x2) K (x1) L (x1) M (x1) M5x8...
-
Page 3: Attach The Base
Step 1 Step 2b Concrete Surface Installation Attach the Base • To secure the stand base to a concrete surface, use a 5/16” Bit and drill holes to a depth of 1.6”. Clear • Attach the Column (#A) to the Base (#B) through the Base Connector (#C) using Bolts (#D) as shown. any dust and debris from the holes and insert the Concrete Anchors (#F). - Page 4 Step 4 Insert the Tablet Attach the Tablet Case to the Column • Select the appropriate Tablet Adapter for your tablet by referencing the compatibility guide below. • Attach the back half of the Tablet Case to the end of the column using Bolts (#H) through the 4 bolt holes on the interior of the Case in the orientation shown here.
-
Page 5: Step 7 Final Adjustments
Step 6 Step 7 Height Adjustment and Cable Management Final Adjustments • To adjust the height of the Pole (#A) use Allen Key(#G) to loosen the bolt indicated in the magnification • The viewing angle can be adjusted in the range of -90° to +90°. bubble, then raise the pole to the desired height and tighten the bolt in place once more.
