09: Total battery AH
Interface
09
bC0
00: Exit setting

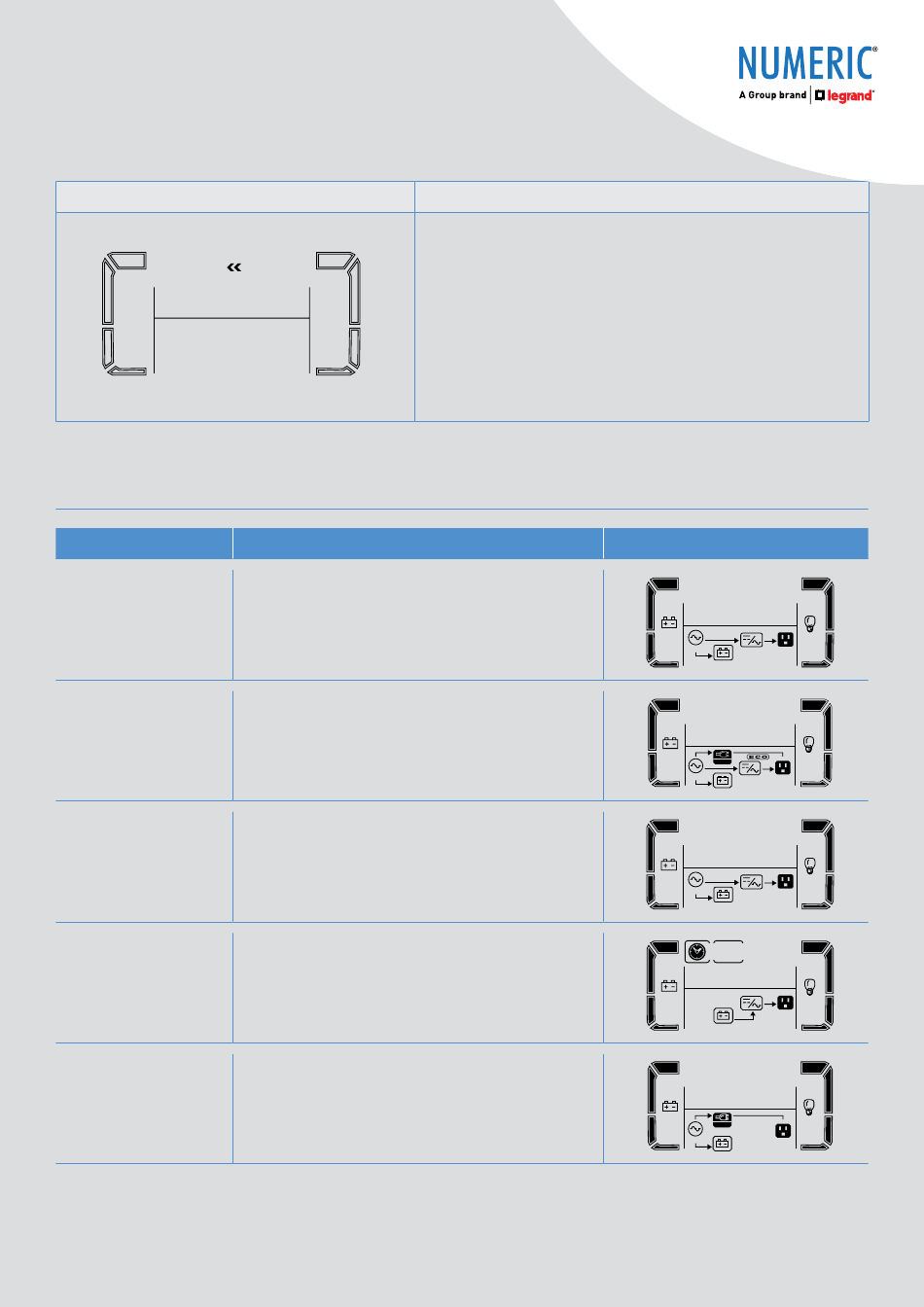

3-6. Operating Mode Description

Operating mode
Online mode
ECO mode
Frequency
Converter mode
Battery mode
Bypass mode
167
Vdc
Description
When the input voltage is within acceptable range,
UPS will provide pure and stable AC power to
output. The UPS will also charge the battery at
online mode.
Energy saving mode:
When the input voltage is within voltage regulation
range, UPS will bypass voltage to output for energy
saving.
When input frequency is within 40 Hz to 70 Hz,
the UPS can be set at a constant output frequency,
50 Hz or 60 Hz. The UPS will still charge battery
under this mode.
When the input voltage is beyond the acceptable
range or power failure and alarm is sounding every
4 second, UPS will backup power from battery.
When input voltage is within acceptable range but
UPS is overload, UPS will enter bypass mode or
bypass mode can be set by front panel. Alarm is
sounding every 10 second.
Setting
Parameter 3: Set up total battery AH value of the UPS.
(unit: AH)
7-999: setting the total battery capacity from 7 to 999.
Please set up this figure if external battery pack is
connected.
If the UPS is standard model, the default setting is 9AH.
LCD display
230 230
Vac Vac
I N P U T O U T P U T
I / P
O/P
230 230
Vac Vac
I N P U T O U T P U T
BYPASS
I / P
O/P
CF
230 230
Vac Vac
I N P U T O U T P U T
I / P
O/P
4.8
M
72.0 230
Vac
Vdc
O U T P U T
O/P
230 230
Vac Vac
I N P U T
O U T P U T
BYPASS
I / P
O/P
15
