DTP3 CrossPoint Series • Setup Guide
" (5 mm) MAX. (typ)
3
16
Tip
Ring
Sleeve
Balanced Input
3-pole Audio INPUT Wiring

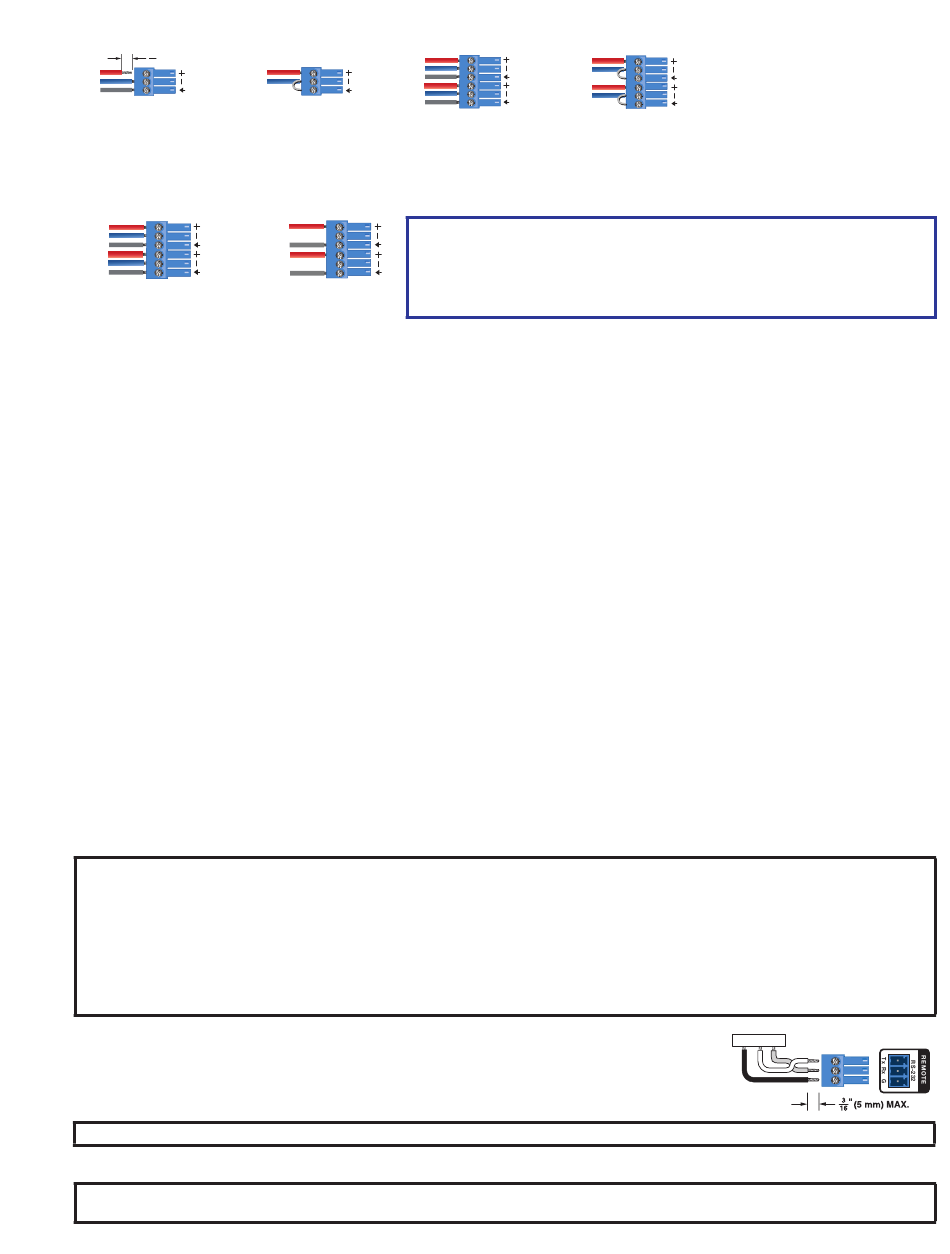

Figure 3. Balanced and Unbalanced Audio Input Wiring Diagram
Line Out outputs 1 and 2 (see
L
to the two 3.5 mm, 3-pole captive screw ports (see figure 4 to wire the connectors).
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Balanced Input
Figure 4. Audio Output Wiring
Audio OUTPUT Wiring
Amp Output (IPCP A models only) — Connect passive speakers to this 5 mm, 4-pole captive screw port to receive an audio line input,
M
or a line input from the audio expansion bus. The selectable output modes of the amplifier are:
•
2 x 100 watts @ 8Ω / 4Ω
•
1 x 200 watts @ 8Ω (Bridged)
Control and Power
IPCP Pro 360MQ xi control processor (IPCP A models only) — The Extron IPCP Pro 360MQ xi control processor card integrates
N
Ethernet connectivity into AV systems to allow users to remotely control, monitor, and troubleshoot AV equipment, including display
devices and switchers. The IPCP Pro 360MQ xi control card offers:
•
IPCP Reset button and LED —
•
Reset button — Initiates levels of control processor reset. For different reset levels, press and hold the recessed
button while the switcher is running or while powering up.
•
Reset LED — Indicates the level reset initiated on the control processor.
•
COM1, COM2, and COM3 ports — Connect to the 5-pole COM port for both hardware and software flow control. Connect to the
3-pole COM ports for software flow control only.
•
Digital I/O port — Configure each port as a digital input or output, with or without +5 VDC pull-up. Monitor or trigger events and
functions (toggle relays, issue commands, send e-mail), once configured.
•
IR/Serial ports — Connect to the control processor to use infrared signals or unidirectional RS-232 serial signals to control various
devices via these ports. Set output signal type (IR or serial) during configuration.
•
Relays ports — Connect devices for contact control.
•
AV LAN Ethernet ports — Connect directly to the DTP3 CrossPoint.
•
LAN Ethernet port — Connect the IPCP to an Ethernet network (for configuration and control of the IPCP and the devices
connected to it). Plug a cable into this RJ-45 socket and connect the other end of the cable to a network switch, hub, router, or PC
connected to a local network or the Internet
See the enclosed IPCP Pro Q xi and xi Series Setup Guide or the IPCP Pro Q xi and xi User Guide at
connections and to configure and operate the IPCP Pro 360MQ xi control processor.
NOTES:
•
The additional AV LAN ports function as multiport, unmanaged network switches for additional devices to connect to the same
network.
•
If the DTP3 CrossPoint is connected via the front panel USB-C, the hardcoded IP address is
•
If connected to the rear panel AV LAN ports, the DTP3 CrossPoint default IP address is
•
If connected to the rear panel IPCP LAN port, the default IP address is
•
If the DTP3 CrossPoint IP address is changed, the AV LAN IP address (
the same subnet as the DTP3 CrossPoint in order to connect through the AV LAN port.
Remote RS-232 port — Connect a serial RS-232 device into the matrix switcher via this 3.5 mm,
O
3-pole captive screw port for remote control of the switcher (see image on the right to wire the
connector).
LAN (Ethernet) port (non-IPCP model) — (Optional) Connect a network WAN or LAN hub, a control
P
system, or a computer to the Ethernet RJ-45 port.
NOTE:
The factory default IP address is
CrossPoint switcher Reset button and LED —
Q
NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of
a complete system reset, the passwords convert to the default, which is
Tip
Ring
Tip
Sleeve
Sleeve
Tip
Jumper
Ring
Unbalanced Input Sleeve
figure 2
on page 2) — Connect audio devices such as an audio L R amplifier or powered speakers
Tip
ATTENTION:
NO Ground Here
Sleeve
Tip
NO Ground Here
Sleeve
Unbalanced Input
192.168.254.254
Tip
Sleeve
Jumper
Tip
Sleeve
Jumper
Balanced Input Unbalanced Input
6-pole Audio INPUT Wiring
•
For unbalanced audio OUTPUT, connect the sleeves to the ground
contact. DO NOT connect the sleeves to the negative (-) contacts.
•
Pour la sortie audio asymétrique, connectez les manchons au contact au
sol. Ne PAS connecter les manchons aux contacts négatifs (–).
•
1 x 200 watts @ 70 volts (Bridged)
•
1 x 200 watts @ 100 volts (Bridged)
192.168.253.250
192.168.254.250
IR Device
Gnd Rx Tx
.
