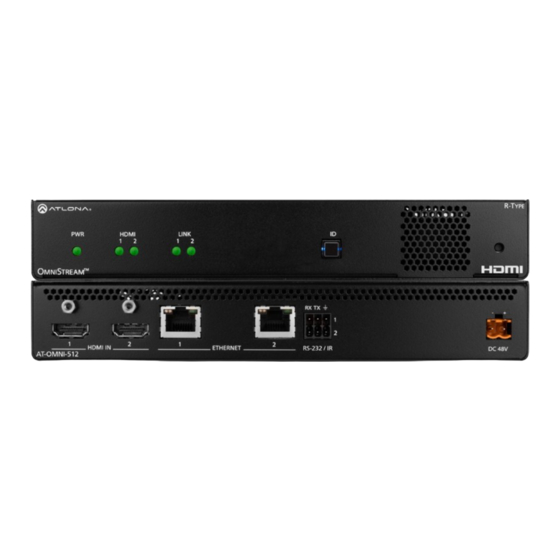

OmniStream R-Type Dual-Channel Networked AV Encoder
AT-OMNI-512
The Atlona OmniStream™ R-Type (AT-OMNI-512) is a networked AV encoder with two
independent channels of encoding for two HDMI sources up to UHD @ 60 Hz and HDR, plus
embedded audio and RS-232 or IR control pass-through. It is part of the OmniStream R-Type
Series, designed for high performance, flexible distribution of AV over Gigabit Ethernet in
residential and light commercial applications. The OmniStream 512 is HDCP 2.2 compliant
and ideal for the latest as well as emerging UHD and HDR sources. It features visually lossless
compression with pristine-quality video and graphics performance, plus extremely low, sub-
frame latency from encode to decode – critical for demanding applications such as gaming.
This dual-channel encoder is housed in a half-width rack enclosure and is ideal for high-density,
compact installation in a centralized equipment location.
Package Contents
1 x AT-OMNI-512
1 x Push spring connector, 6-pin
1 x Wall/table mounting brackets
4 x Rubber feet
1 x Installation Guide
Operating Notes
•
Atlona recommends using the Velocity with Integrated AMS which provides discovery,
management, and configuration assistance. Velocity with Integrated AMS is a free
application that can be downloaded from the Atlona web site at http://atlona.com/product/
at-ams-sw/.
•
OmniStream uses mDNS as the discovery mechanism. In order for mDNS to function
properly, there must not be restrictions applied to the network. Although VPN can be used
to connect to a computer that is running Velocity, on the same network, it cannot be used
when Velocity is running on the local machine.
IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-512 for the latest
firmware updates and User Manual.
1
Installation Guide
AT-OMNI-512
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panduit ALTONA OmniStream R-Type
Summary of Contents for Panduit ALTONA OmniStream R-Type
- Page 1 Installation Guide AT-OMNI-512 OmniStream R-Type Dual-Channel Networked AV Encoder AT-OMNI-512 The Atlona OmniStream™ R-Type (AT-OMNI-512) is a networked AV encoder with two independent channels of encoding for two HDMI sources up to UHD @ 60 Hz and HDR, plus embedded audio and RS-232 or IR control pass-through. It is part of the OmniStream R-Type Series, designed for high performance, flexible distribution of AV over Gigabit Ethernet in residential and light commercial applications.
-
Page 2: Panel Descriptions
Installation Guide AT-OMNI-512 Panel Descriptions HDMI LINK HDMI LINK TREAM TREAM RX TX RX TX HDMI IN ETHERNET RS-232 / IR DC 48V HDMI IN ETHERNET RS-232 / IR DC 48V AT-OMNI-512 AT-OMNI-512 HDMI 1 / HDMI 2 This LED indicator is green when the unit Connect HDMI cables from these ports to is powered. -
Page 3: Mounting Instructions
Installation Guide AT-OMNI-512 Mounting Instructions The AT-OMNI-512 encoder includes two Repeat steps 1 through 4 to attach the mounting brackets and four mounting screws, second mounting bracket to the opposite which can be used to attach the unit to any flat side of the unit. -
Page 4: Installation
Installation Guide AT-OMNI-512 Installation Connect an Ethernet cable from the ETHERNET 1 and ETHERNET 2 ports on the encoder to a PoE-capable switch on the Local Area Network (LAN). Note that if a PoE-capable switch is not available, the 48V DC power supply (sold separately) must be connected to the encoder. - Page 5 Installation Guide AT-OMNI-512 RS-232 The AT-OMNI-512 provides transport of RS-232 protocol over IP which allows communication between a control system and an RS-232 device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires. Insert the TX, RX, and GND wires into correct terminal on the included push spring connector, following the wiring diagram below.
- Page 6 Installation Guide AT-OMNI-512 Accessing devices using Velocity with Integrated AMS Launch a web browser and enter the IP address of Velocity, in the address bar. Enter the required login credentials. Click the Login button. The Velocity with Integrated AMS Dashboard will be displayed. Click the icon, in the upper-left corner.
- Page 7 Installation Guide AT-OMNI-512 Click the desired encoder from the Unassigned device list or from under the Device List column. Once the unit is selected, the Velocity with Integrated AMS interface for the encoder will be displayed. Refer to the User Manual for more information on the interface.
-
Page 8: Mac Addresses
Installation Guide AT-OMNI-512 Accessing devices using the built-in Web Server Identify the desired encoder by locating the MAC address on the bottom of the unit. In the following example, the label indicates the MAC address for each physical interface. The Ethernet cable can be connected either interface. MAC addresses Connect a PC to the same network where the OmniStream encoders/decoders are connected. - Page 9 Installation Guide AT-OMNI-512 The System Information screen will be displayed. Refer to the User Manual for more information on the web server interface. The login process is complete.
-
Page 10: Troubleshooting
Installation Guide AT-OMNI-512 Troubleshooting Problem Solution PWR indicator is off. • If using a PoE (Power-over-Ethernet) switch, make sure that the port on the switch that is connected to the encoder, has PoE enabled. When the encoder is powered using PoE, the PWR indicator will be green. •... - Page 11 Installation Guide AT-OMNI-512 Notes...
- Page 12 Installation Guide AT-OMNI-512 English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-omni-512/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
