OmniStream R-Type Dual-Channel Networked AV Encoder
AT-OMNI-512
The Atlona AT-OMNI-512 is a networked AV encoder with two independent channels of encoding
for two HDMI sources up to 4K/60 4:4:4 and HDR (High Dynamic Range), plus embedded
audio and RS-232 or IR control pass-through. OmniStream is designed for high performance,
flexible distribution of AV over standard, off-the-shelf Gigabit Ethernet switches in commercial
audiovisual applications. The OMNI-512 features the advanced VCx™ codec which delivers
4K/60 4:4:4 video from encode to decode, with artifact-free presentation of computer-generated
content and fast-motion video, and ultra-low latency less than one frame. This dual-channel
encoder is housed in a half-width rack enclosure with front-to-back air flow, and is ideal for high-
density, compact installation in a centralized equipment location.
Package Contents
1 x AT-OMNI-512
1 x Push spring connector, 6-pin
1 x Wall/table mounting brackets
4 x Rubber feet
Operating Notes
•
OmniStream uses mDNS as the discovery mechanism. In order for mDNS to function
properly, there must not be restrictions applied to the network.
IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-512 for the latest
firmware updates and User Manual.
1
Installation Guide
AT-OMNI-512
Advertisement
Table of Contents
Related Manuals for Panduit ATLONA OmniStream AT-OMNI-512
Summary of Contents for Panduit ATLONA OmniStream AT-OMNI-512
- Page 1 Installation Guide AT-OMNI-512 OmniStream R-Type Dual-Channel Networked AV Encoder AT-OMNI-512 The Atlona AT-OMNI-512 is a networked AV encoder with two independent channels of encoding for two HDMI sources up to 4K/60 4:4:4 and HDR (High Dynamic Range), plus embedded audio and RS-232 or IR control pass-through. OmniStream is designed for high performance, flexible distribution of AV over standard, off-the-shelf Gigabit Ethernet switches in commercial audiovisual applications.
-

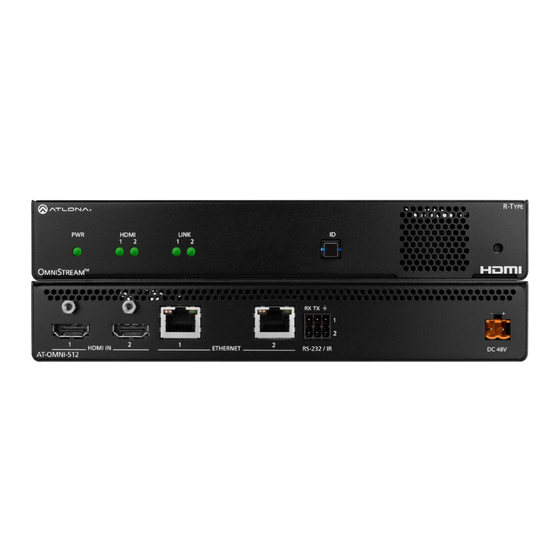

Page 2: Panel Descriptions
Installation Guide AT-OMNI-512 Panel Descriptions HDMI LINK HDMI LINK TREAM TREAM RX TX RX TX HDMI IN ETHERNET RS-232 / IR DC 48V HDMI IN ETHERNET RS-232 / IR DC 48V AT-OMNI-512 AT-OMNI-512 HDMI 1 / HDMI 2 This LED indicator is green when the unit Connect HDMI cables from these ports to is powered and booted. -
Page 3: Mounting Instructions
Installation Guide AT-OMNI-512 Mounting Instructions The AT-OMNI-512 encoder includes two Repeat steps 1 through 4 to attach the mounting brackets and four mounting screws, second mounting bracket to the opposite which can be used to attach the unit to any flat side of the unit. -
Page 4: Installation
Installation Guide AT-OMNI-512 Installation Connect an Ethernet cable from the ETHERNET 1 and ETHERNET 2 ports on the encoder to a PoE-capable switch on the Local Area Network (LAN). Note that if a PoE-capable switch is not available, the 48V DC power supply (sold separately) must be connected to the encoder. - Page 5 Installation Guide AT-OMNI-512 RS-232 The AT-OMNI-512 provides transport of RS-232 protocol over IP which allows communication between a control system and an RS-232 device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires. Insert the TX, RX, and GND wires into correct terminal on the included push-spring connector, following the wiring diagram below.
- Page 6 Installation Guide AT-OMNI-512 Accessing OmniStream using the built-in Web Server Launch the desired web browser and enter the IP address or domain name of the decoder in the address bar. Enter the username and password. Note that the password field will always be masked. The default credentials are: admin Username:...
- Page 7 Installation Guide AT-OMNI-512 Notes...
-
Page 8: Warranty
Installation Guide AT-OMNI-512 Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-omni-512/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
