5.3.5 Electrical connections (general)

Electrical wiring must be secured with brackets at least every 150 mm (see Fig. 5.3.5).

5.3.6 Connecting the power supply cable / mains cable

Attention: Before you plug in the power supply cable, check again
•
whether the mains voltage corresponds to the type plate of your control unit
•
that all components are plugged into the correct sockets.
The motor control box is ready for operation when the power supply cable is plugged in!
Note: When connecting the power supply cable/mains cable for the first time, initialisation of
the desk (RESET) as described in Section 6 is necessary.
Attention: Only use the mains cable provided!
Caution: Attach all cables to the desk or desktop, so that no damage can occur during operation.

5.3.7 Inserting the battery

Caution: Before inserting the battery into its holder, check again
whether all the components have been plugged into the right sockets.
The motor control unit is ready for operation when the battery has been inserted into its holder.
Note: When the power supply cable/mains cable is connected for the first time, initialisation of
the desk (RESET) as described in Section 6 is necessary.
Caution: Only use the supplied battery!
Caution: Attach all the cables to the desk or desktop so that no damage can occur during
operation.

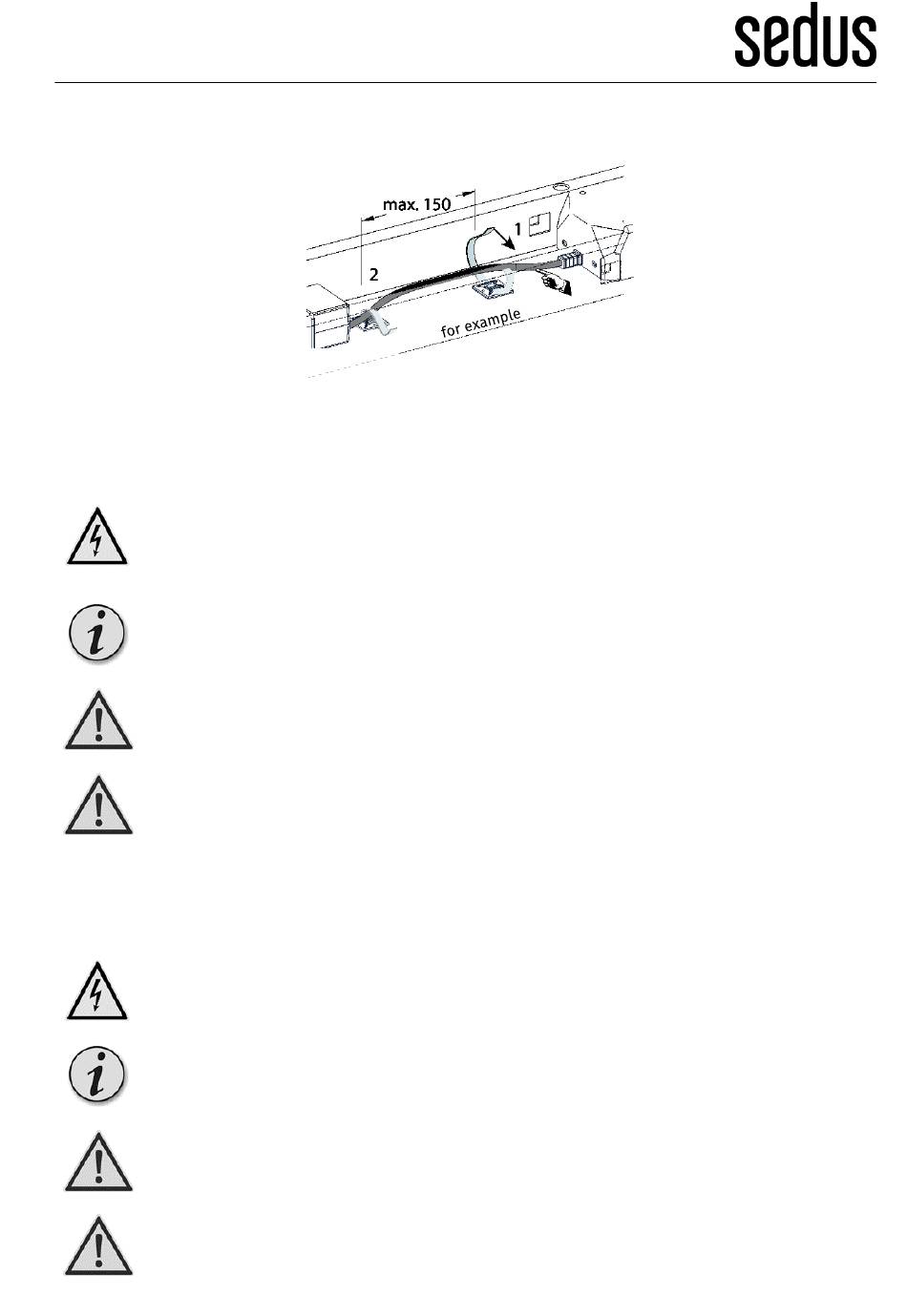

Fig. 5.3.5
