5.3

Putting the desk into operation

Putting the desk into operation comprises all actions that are necessary for an electrically height-adjustable
desk to become height-adjustable by means of the motor control unit. The condition for putting the desk into
operation is:
•
the desk has been fully assembled in compliance with Section 5.1 or 5.2
Danger: The motor control unit may only be put into operation by qualified specialist personnel!
Qualified specialist personnel possess the necessary electrical engineering training and are
familiar with these operating instructions.
Caution: Before assembling and putting the desk into operation, ensure that the product has
been acclimatised for operation at the temperature and humidity values indicated in the
technical data!

5.3.1 The motor control unit's connections

5.3.2 Control

SLIM control element

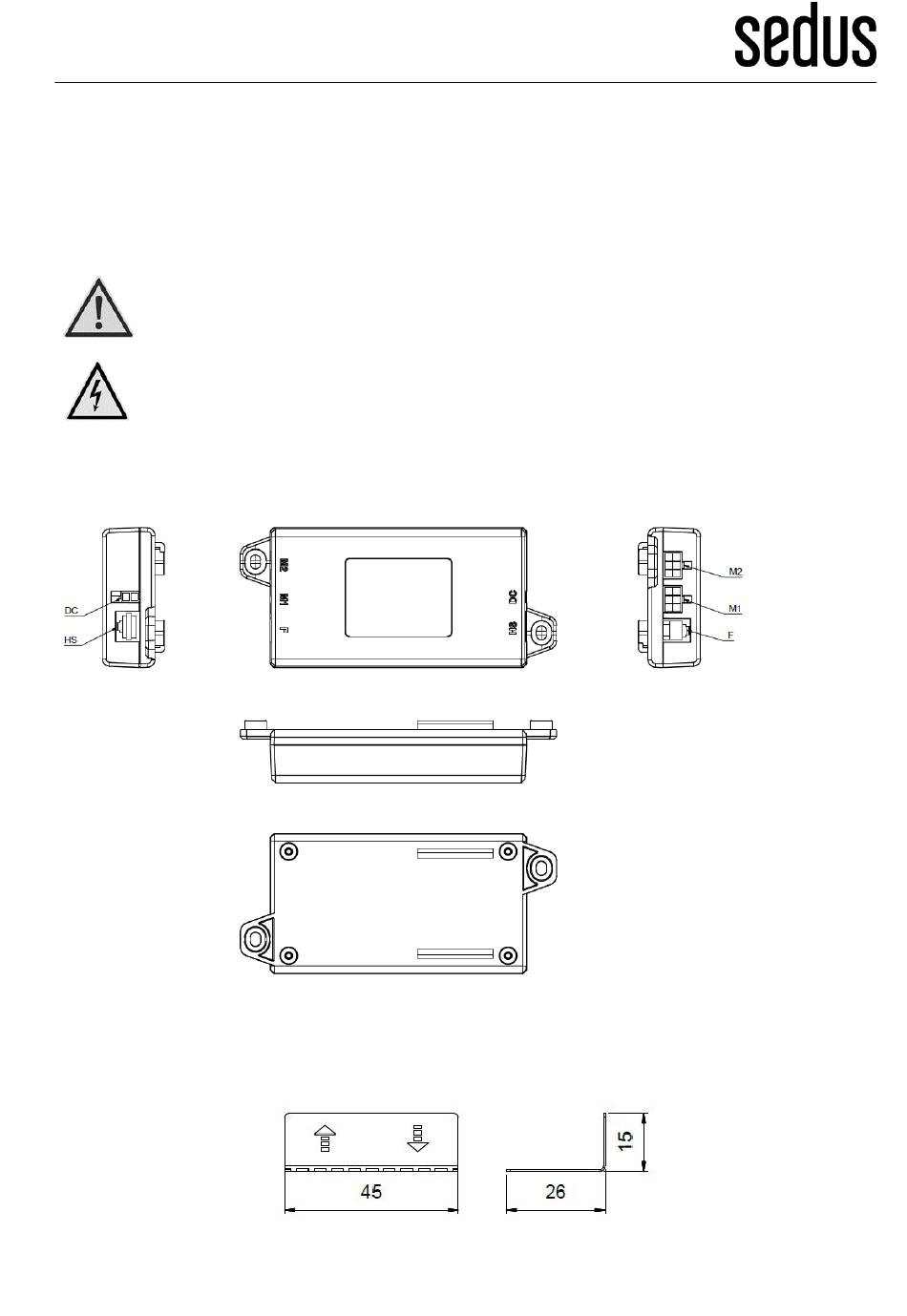

Fig. 5.3.1
Fig. 5.3.2, dimensions in mm
47
Connections/sockets
DC = Connection
power supply
F = Programming
connection
HS = Hand
connection
M1 = Motor connection 1
M2 = Motor connection 2
for
switch
