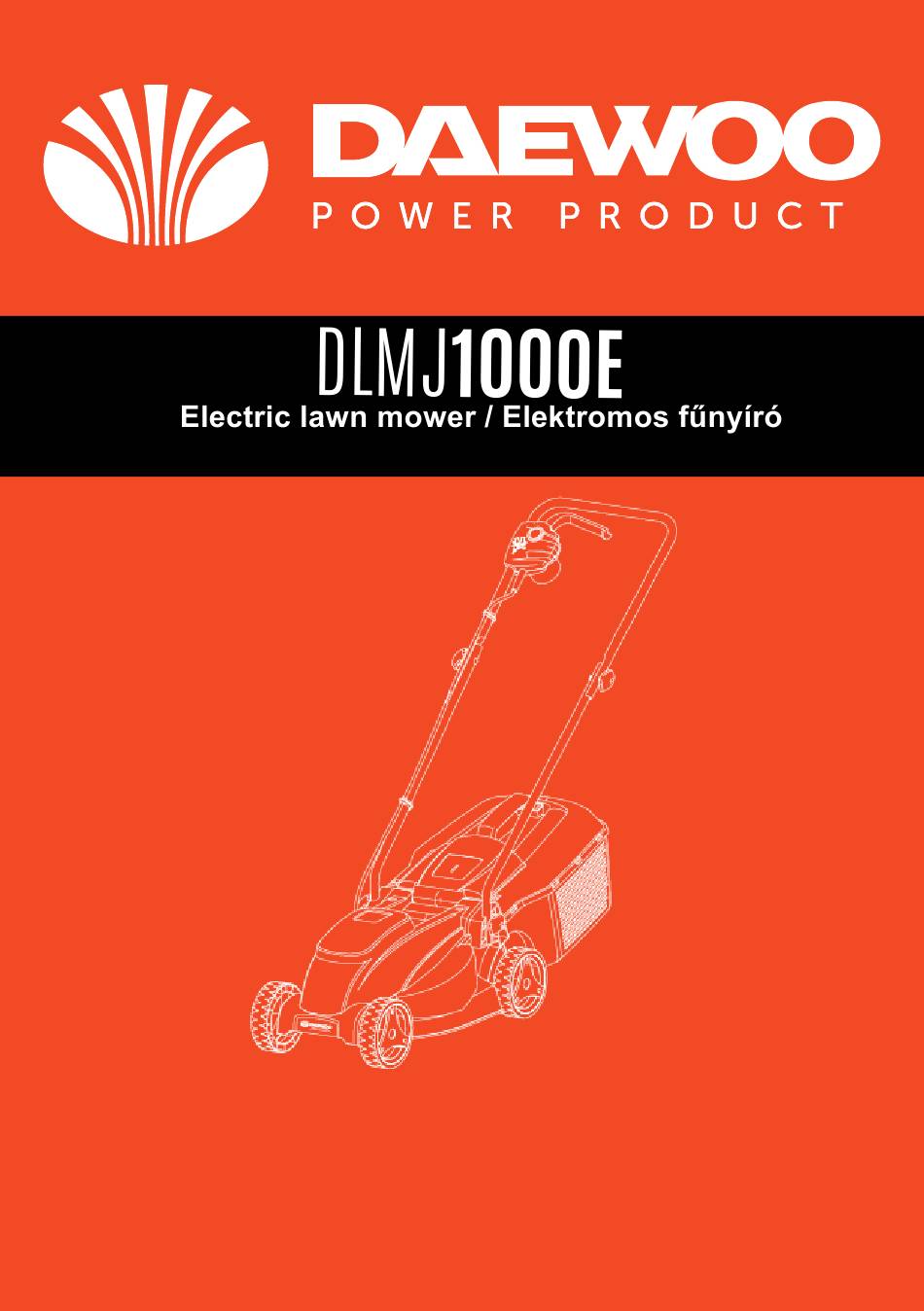

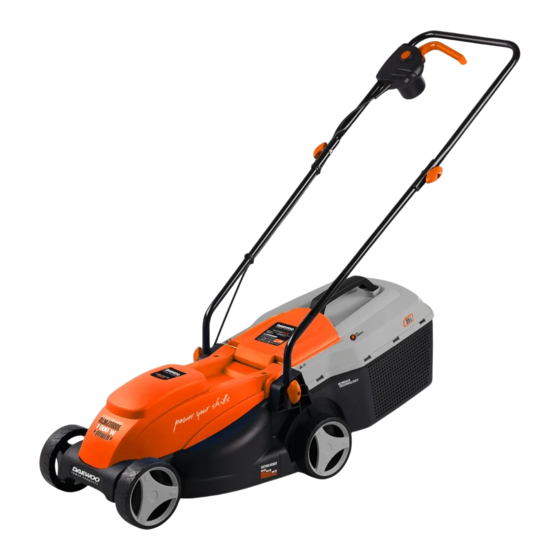

- Page 1 Eredeti útmutató fordítása USER’S MANUAL/ HASZNÁLATI UTASÍTÁS www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea / A koreai Daewoo International Corporation gyártási engedélye alapján gyártott készülék...
-
Page 2: Table Of Contents
INDEX 1. PARTS LIST....................3 2. TECHNICAL DATA ..................3 3. SAFE T Y INSTRUCTIONS..............3 4. ASSEMBLY INSTRUCTIONS..............9 5. OPERATION .....................12 6. MAINTENANCE..................14 7. EXPLODED VIEW..................15 TARTALOM 1. ALKATRÉSZLISTA...................17 2. MÜSZAKI ADATOK...................17 3. BIZTONSÁGI UTASÍTÁSOK..............17 4. OSSZESZERELÉSI ÚTMUTATÓ ............24 5. HASZNÁLAT.....................26 6. KARBANTARTÁS................... 29 7. -
Page 3: Parts List
1. PARTS LIST 1. Upper handle 2. Lower handle 3. Switch box 4. Grass collection box 5. Wheels 6. Motor cover 2. TECHNICAL DATA Motor type: Brush motor Rated Power: 230V - 240V-50Hz,1000W No load speed: 3450 rpm Cutting width: 320 mm 3 Adjustable height positions: 25-45-65 mm Grass collection bag: 25 L plastic Wheels: 5.5”... -
Page 4: Electrical Safety
b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks, which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. - Page 5 on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly.
- Page 6 5) SERVICE a) Have your power tool serviced by a quali ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ADDITIONAL SAFETY RULES FOR LAWN MOWER Read the instructions carefully. Be familiar with the controls and the proper use of the appliance.
- Page 7 grass, and when transporting the appliance to and from the working area. Never operate the appliance with defective guards or shields, or wi- thout safety devices, for example de ectors and/or catchers in place. Switch on the motor according to instructions and with feet well away from rotating parts.
- Page 8 SYMBOLS The rating plate on your tool may show symbols. These represent im- portant information about the product or instructions on its use. Waste electrical products should not be disposed of with house hold waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
-
Page 9: Assembly Instructions
The tines will continue to rotate for a short while after the rake has been switched off. Do not pick up or carry the rake until the tines has stopped rota ting. This product is double insulated electrically. The tines will continue to rotate for a short while after the rake has been switched off. -
Page 10: Cutting Height Adjustment
7. Lift the ap and place the grass box over the lugs.(Fig.1g) 8. Press the wheel covers into place. (Fig.1h) CUTTING HEIGHT ADJUSTMENT To obtain the desired cutting height, the front and rear axles are reposi- tioned on the underside of the mower housing. WARNING! Disconnect the mower from the power supply and ensure the blade has stopped coasting before adjusting the height. - Page 11 1. To adjust the front wheel cutting height position ( g. 2a) 1) Turn the mower upside down. 2) Pull the wheel axle towards the front of the mower. 3) Locate the wheel axle into the desired cutting height adjustment position.
-
Page 12: Operation
5. OPERATING Connect to power supply WARNING! Before connecting to the mains supply, always check the switch is in off position. Connect the plug into the RCD protected power supply. Starting On/Off switch g.3) Caution! Do not start the mower if it is standing in long grass. Press the safety button (A) of the switch assembly and then pull the switch lever (B) against the bar. - Page 13 • Turn left and move towards position 4 • Repeat the above procedures as required. WARNING! Do not work towards the cable. Blade maintenance ( g.5) • Regularly remove grass and dirt from the blade. • At the beginning of the gardening season, carefully examine the con- dition of the blade.
-
Page 14: Maintenance
• Place bushing into shaft of motor • Place blade, at pad and spring washer alignly • Place blade screw into the holes • Tighten blade screw with sleeve. 6. MAINTANCE 1. Keep all nuts, bolts and screws tight to be sure the lawn mower is in a safe working condition. -
Page 15: Exploded View
7. EXPLODED VIEW... - Page 16 Part No. Part Name Part No. Part Name bearing1 bearing motor rear holder motor rear holder carbon brush carbon brush screw screw rush holder brush holder screw screw otor rotor stator stator capacity capacity motor front holder motor front holder screw screw rotor wind leaf...
-
Page 17: Alkatrészlista
1. ALKATRÉSZLISTA... - Page 18 tát.
- Page 20 5) SZERVIZ...
- Page 23 A szerszám típustáblája szimbólumokat tartalmazhat. Ezek fontos információkat jelölnek a termékkel vagy a használati utasítással kapc- solatosan.
- Page 25 leállt.
-
Page 29: Karbantartás
6. KARBANTARTÁS ból. - Page 31 Cikkszám Alkatrész neve csapágy hátsó motortartó szénkefe csavar kefetartó csavar forgórész állórész kapacitás első motortartó csavar forgórész levélterelő kis szíjtárcsa túlterhelésvédelem 6000 csapágy anya csapágy rögzített lemez 6002 csapágy szíj nagy szíjtárcsa csavar csavar sasszeg felső burkolat felső burkolat rögzített lemeze kerékburkolat kerék első...
-
Page 32: Megfelelőségi Nyilatkozat
3450 ford/perc Vágási szélesség: 320 mm Gyűjtőzsák: 25 l Az Electro Solution Hungary Kft., a DAEWOO Products meghatalmazott képviselője kijelenti, hogy a „műszaki adatok” részben felsorolt termékek megfelelnek a következőknek: Gépekre vonatkozó irányelv (2006/42/EK), az elektromágneses összeférhetőségre vonatkozó irányelv (2014/30/EU),), EN 60335-1:2012/A2:2019, EN 60335-2-77:2010, EN 55014- 1:2017,EN 55014-2:2015,EN61000-3- 2:2014,EN61000-3-3:2013. - Page 33 Manufactured under license of Daewoo International Corporation, Korea/ A koreai Daewoo International Corporation gyártási engedélye alapján gyártott készülék...
