3-18 DC 12V-IN external Connector

.

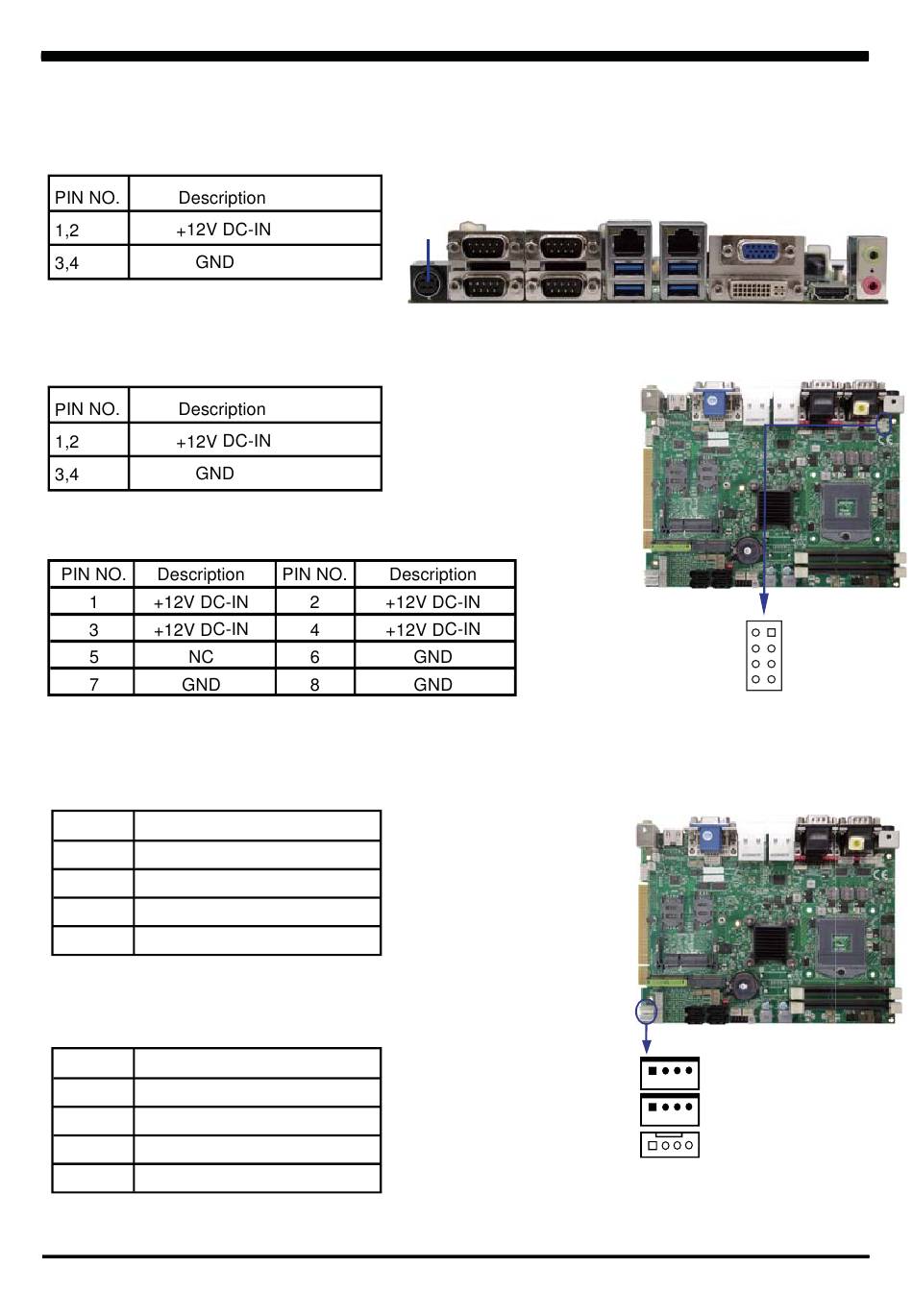

CPI1: DC 12V-IN external Connector (4pin mini din connector)
Note: DC in from adapter plug in
.
CPI11: DC 12V-IN Internal Connector (2x2pin 4.2mm ATX connector)
The location share with CPI1
Note: This connector share with CPI1 for OEM
.
CPI13: DC 12V-IN Internal Connector (4pin 2.0mm wafer)
Note: DC in from adapter plug in

3-19 DC +5/+12V output connector

.
CPO1/CPO2: +12V/+5V DC voltage output (4pin 2.54mm Wafer)
Description
PIN NO.
+5V
1
GND
2
GND
3
+12V *
4
*Note: DC in +12V by switch to DC-out voltage +12V,
so DC in need stable +12V input
.
CPO3: +12V/+5V DC voltage output (4pin 2.0mm Wafer)
Description
PIN NO.
+5V
1
GND
2
GND
3
+12V *
4
*Note: 1. DC in +12V by switch to DC-out voltage +12V, so DC in need stable +12V input
2. CPO3 connector share with CPO2 connector .
CPI1
53
CPI13
CPO1
pin1
CPO2
CPO3
pin1
