Lex Computech CI770A Instruction Manual page 13

Intel mobile ivy bridge processor + (pch)qm77 / ddr3 1066/1333 mt/s / lan / dvi/ hdmi /audio /usb / pcie mini card
Hide thumbs Also See for CI770A:

Advertisement

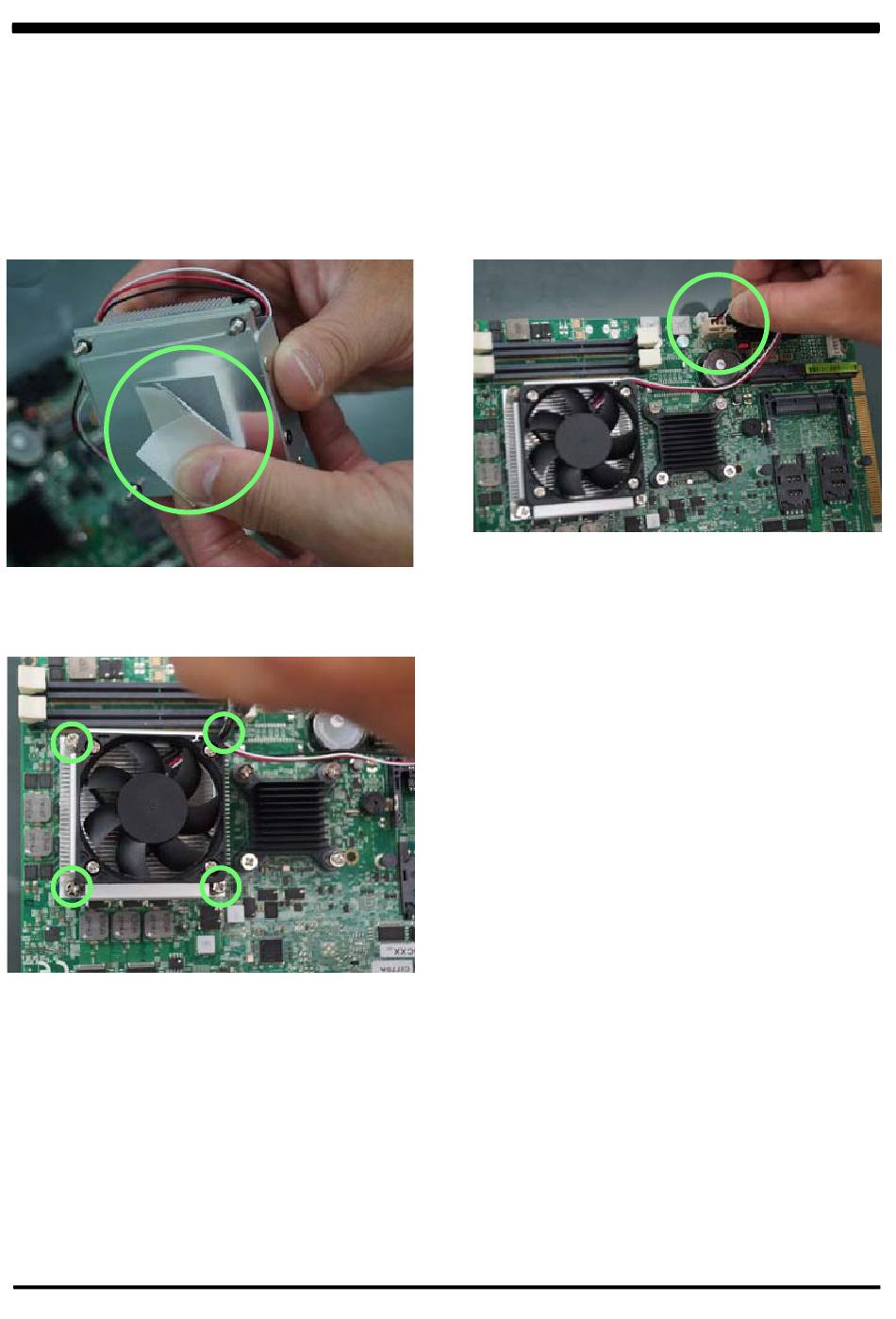

3. Peel-off the Elastic Silicone sticker under
the Heat Sink.
3.1 Tighten the HEAT SINK on the motherboard.
Pay attention to tighten the screws diagonally.
3.2 Insert the system fan power cable to
the pin header (FAN1) on board.
8
