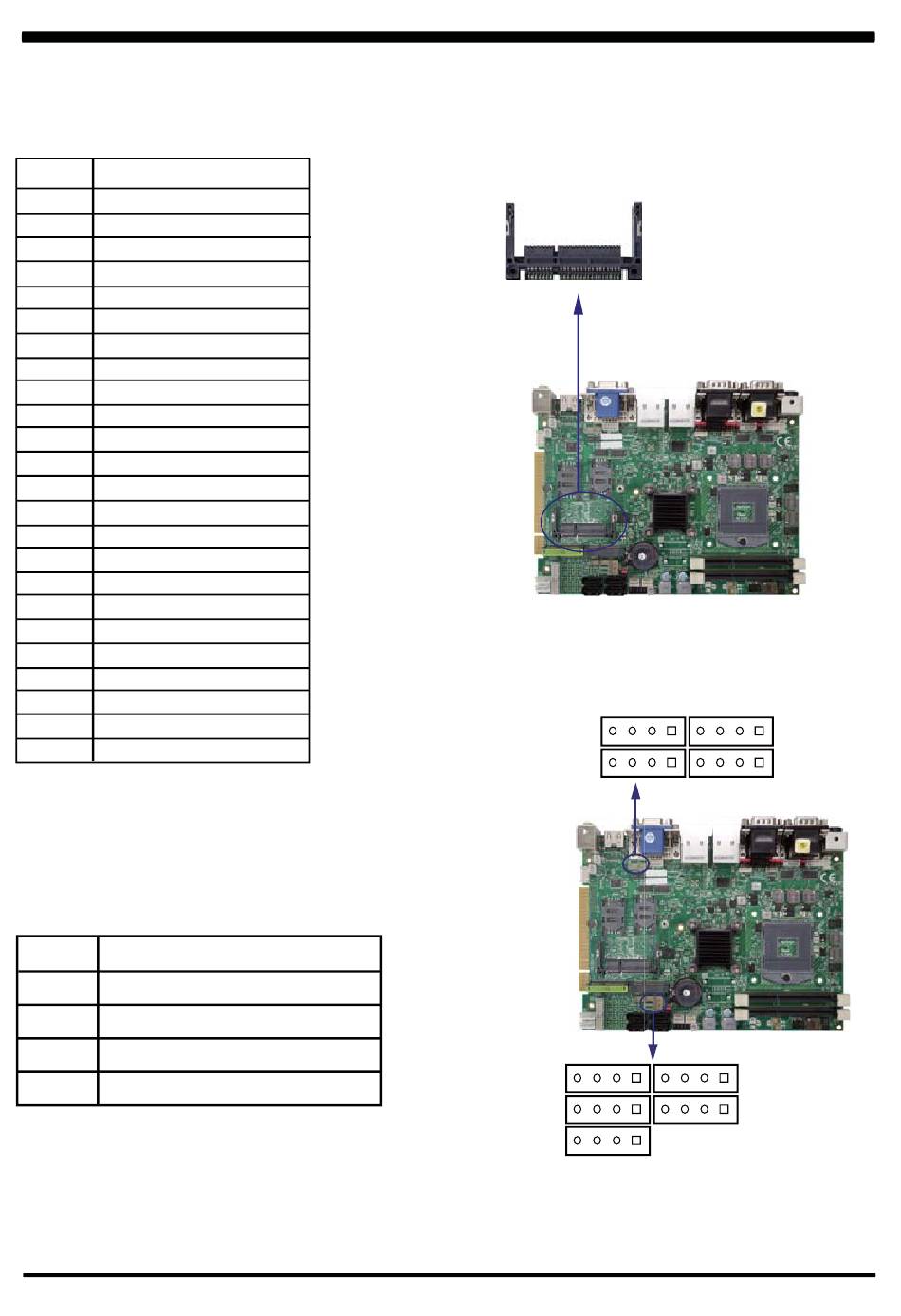

3-4 CFast card Reader (option)

CFA1: CFA Socket For SATA Interface (24pin CFA Socket)
PIN NO.
DESCRIPTION
S1
GND
S2
SATA TX+
S3
SATA TX-
S4
GND
S5
SATA RX-
S6
SATA RX+
S7
GND
PC1
GND(Card Detect In)
PC2
GND
PC3
NC
PC4
NC
PC5
NC
PC6
NC
PC7
GND
PC8
NC(LED Out)
PC9
NC(LED Out)
PC10
NC
PC11
NC
PC12
NC
PC13
+3.3V
PC14
+3.3V
PC15
GND
PC16
GND
PC17
GND(Card Detect Out)
Note:CFA1 use SATA port 5

3-5 USB Port

.
CU5/6/7/8/9/10/11/12/13:
USB5/6/7/8/9/10/11/12/13 port (4pin 1.25mm Wafer)
PIN NO.
Description
1
+5V
2
USB DATA -
3
USB DATA +
4
GND
Note: 1. CU5 and CU6 no connector
2. The CU10 share with MPCE1 (no connector).
3. The CU11 share with MPCE2 (no connector).
4. The CU9 share with touch device (no connector).
5. CU10,CU11 pin can support +12V by OEM
CFA1
CFA1
CU5
CU7
CU9
CU10
CU11
31
pin1
CU6
CU8
pin1
CU12
CU13
