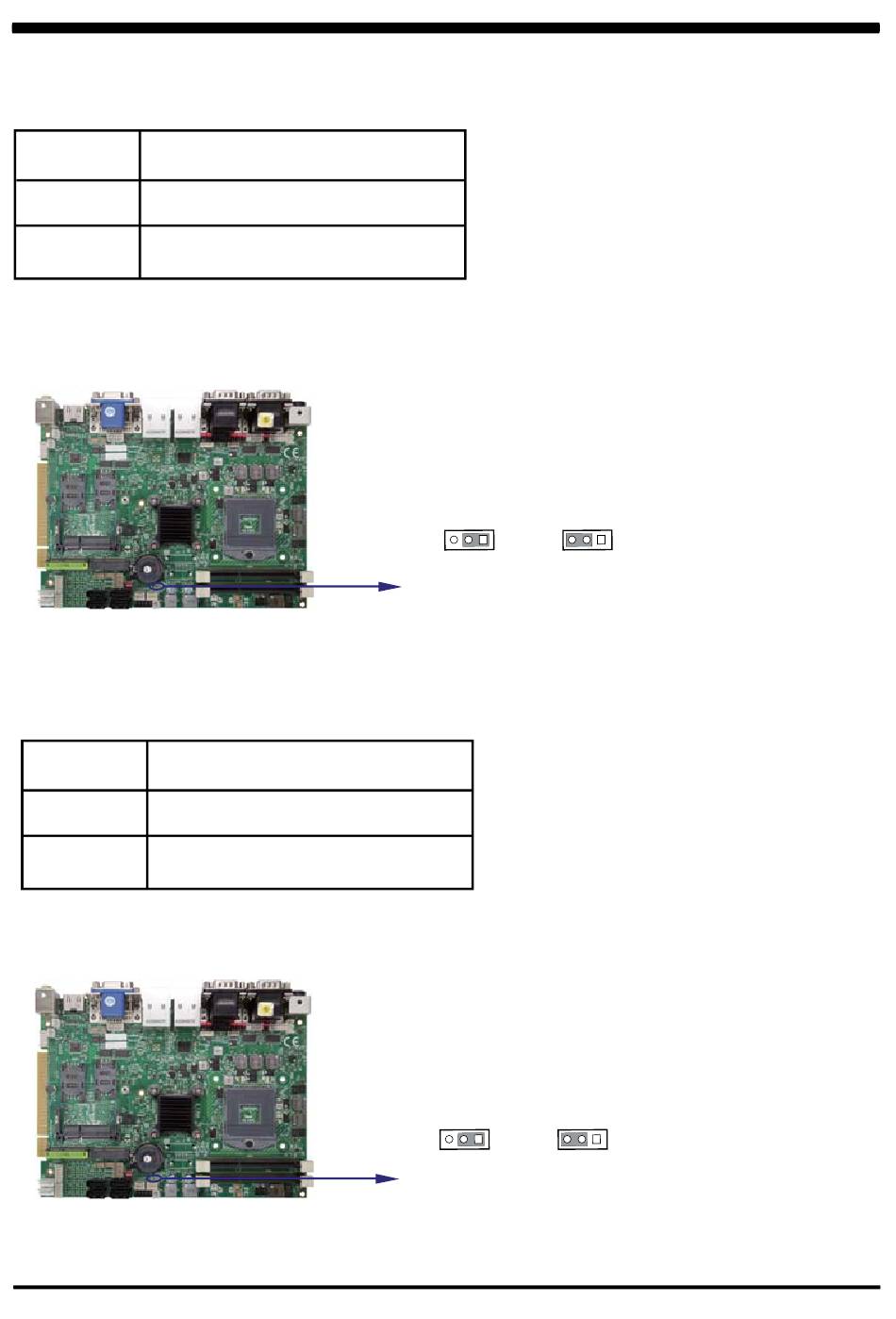

2-14 JVL1: LVD panel power select

JVL1
1-2
*2-3
*+3.3V
Note : Attention ! Check Device Power in spec.
JVL1 For eDP and LVDS panel power setting

2-15 JVP1: LVDS Panel Inverter power select

JVP1
1-2
*2-3
Note : Attention ! Check Device Power in spec.
Description
+5V
Description
+12V
*+5V
JVL1
3
2 1
3
2 1
+3.3V*
+5V
JVP1
3
2 1
3
2 1
+12V
+5V*
25
