9 . Fasten the thermostat's power
supply to the wall terminal box
using screws in minimum 2 of the
designated holes on the power
supply unit .
Notice: place the thermostat
according to the
10 . Attach the frame and the Top
frame to the thermostat . After
that attach the thermostat to
the Power supply unit by a
softly press until all parts firmly
connected .
11 . Carefully attach the thermostat
to the Power supply – take care
that the connector pins are
not bent .
12 . After electrical installation is
completed, turn on the all-pole
disconnect (fuse) .
12
- arrow

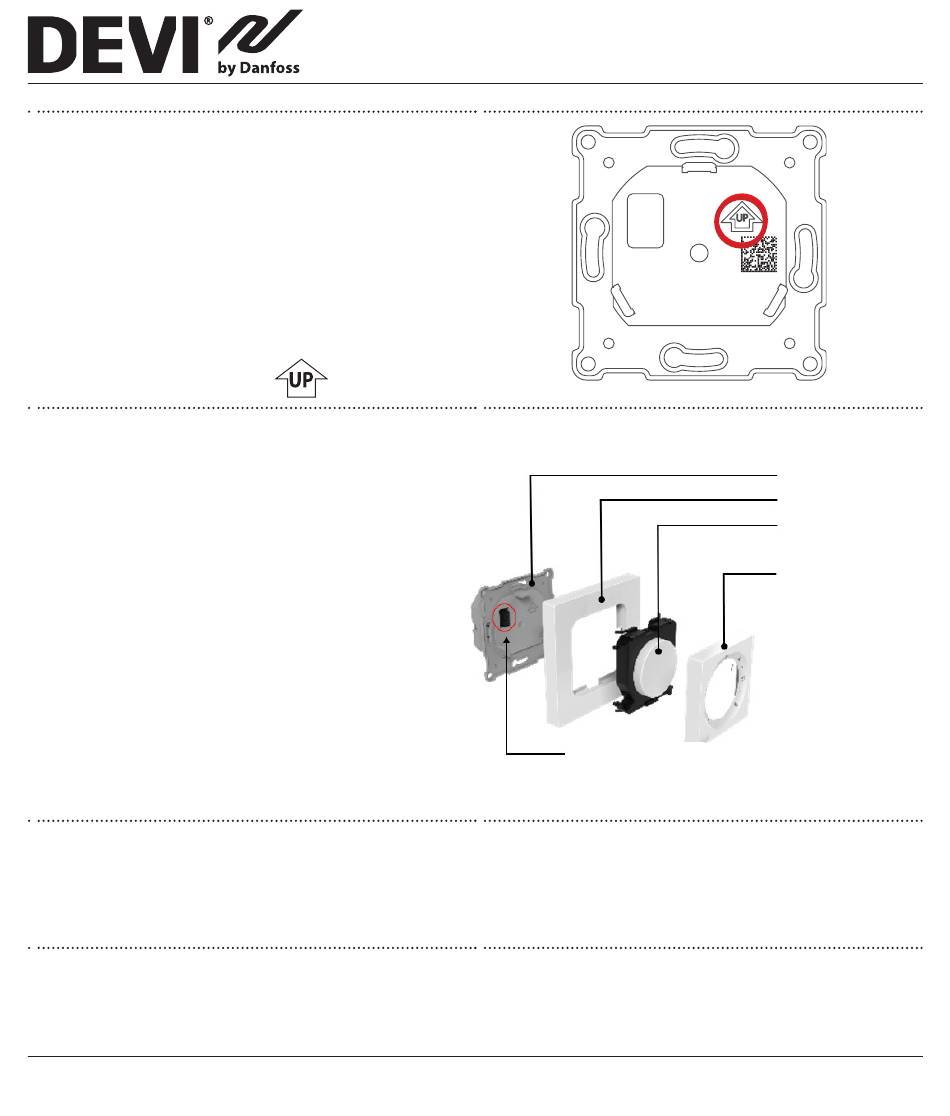

DEVIreg™ Basic
Connection socket / Pin
Installation Guide
Switch
Frame
Thermostat
(unit)
Top frame
(scale)
