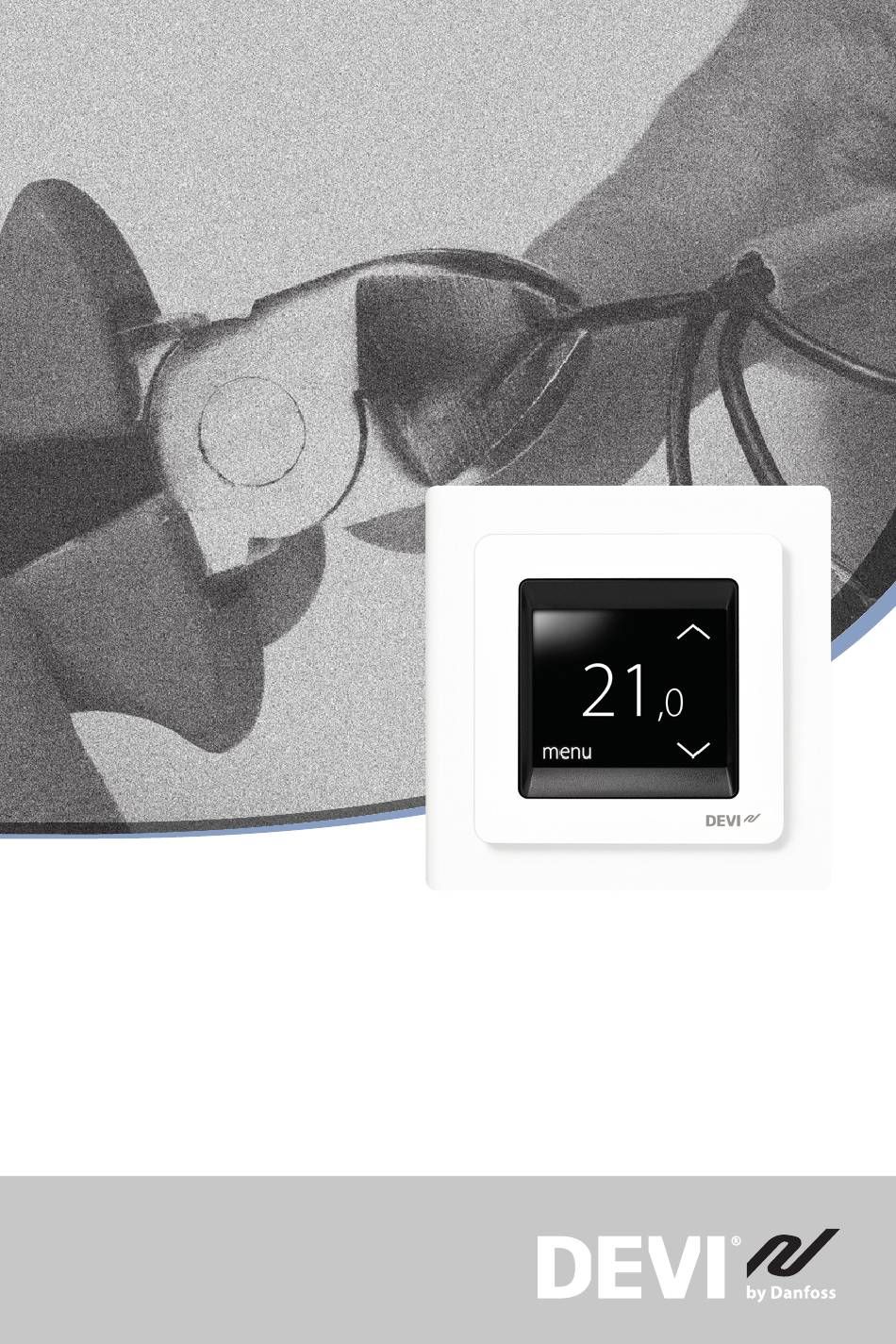

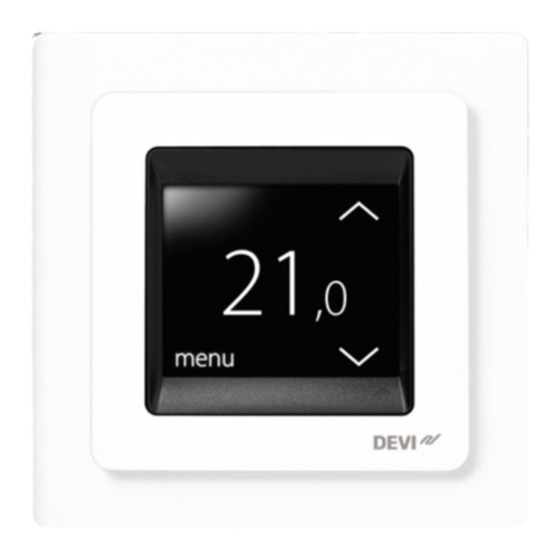

- Page 1 Installation Guide DEVIreg™ Touch Electronic Intelligent Timer Thermostat www.DEVI.com...
-
Page 3: Table Of Contents
DEVIreg™ Touch Table of Contents Introduction ..... 3 Technical Specifications ... 4 Safety Instructions . -
Page 4: Technical Specifications
DEVIreg™ Touch • An installation wizard with room/floor type-specific setup. • Support for multiple frame systems. • Compatible with several 3rd party NTC sensors. • Thermostat settings can be specified before instal- lation and imported to the thermostat using a web-generated code, or copied from a thermostat in a similar installation. - Page 5 DEVIreg™ Touch Sensing values: (Default NTC 15 K) 0°C 42 kOhm 20°C 18 kOhm 50°C 6 kOhm Control PWM (Pulse Wide Modulation) Ambient temperature 0° to +30°C Frost protection temperature 5°C to +9°C (default 5°C) Temperature range Room temperature: 5-35°C. Floor temperature: 5-45°C.
-
Page 6: Safety Instructions
DEVIreg™ Touch IP class Protection class Class II - Dimensions 85 x 85 x 20-24 mm (in-wall depth: 22 mm) Weight 103 g Electrical safety and Electro-Magnetic Compatibility for this product is covered by the compliance with the EN/IEC Standard “Automatic electrical controls for household and similar use”: •... -
Page 7: Mounting Instructions
DEVIreg™ Touch • The thermostat must be connected to a power supply via an all-pole disconnection switch. • Always connect the thermostat to continuous power supply. • Do not expose the thermostat to moisture, water, dust, and excessive heat. Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170cm.). - Page 8 DEVIreg™ Touch Do not place the thermostat in a way that it will be exposed to direct sunlight. Note: A floor sensor enables a more accurate temperature control and is recommended in all floor heating applications and mandatory under wooden floors to reduce the risk of over-heating the floor.
- Page 9 DEVIreg™ Touch Follow the steps below to mount the thermostat: Open the thermostat: Important: Do NOT press on the display screen when removing the front part. Press your fingers under the side of the front part and pull toward you: Connect the thermostat according to the connection diagram.
-
Page 10: Settings
DEVIreg™ Touch Mount and reassemble the thermostat. • Fasten the thermostat to a socket or an exterior wall box by driving the screws through the holes in each side of the thermostat. • Put the frame on. • Click the display module back in place. Important: Do NOT press on the display screen when click- ing the display module back in place. - Page 11 DEVIreg™ Touch Use the arrows in the right side of the screen to go to your language, and press to select it. Then press in the upper right corner to confirm. Press the hour numbers and use the < and > arrows to set the hour.
- Page 12 DEVIreg™ Touch If you have already made the installation setup online, press ENTER CODE and go directly to Step 13 now. Oth- erwise press SETUP WIZARD and go to Step 6. On the SETUP information screen, press to start. Use the < and > arrows to select whether only a floor sensor or a combination of room and floor sensors...
- Page 13 DEVIreg™ Touch Use the < and > arrows to select the installed floor sensor type. (Measured resistance and correspond- ing temperature are shown in brackets). Press confirm. Use the < and > arrows to select the flooring type. Press to confirm. 10.
-
Page 14: Forecast
DEVIreg™ Touch 12. Use the < and > arrows to select whether the timer should be activated or not. Press to confirm and end the initial thermostat setup. Skip Step 13. 13. Enter your web-generated code. Then press to end the initial thermostat setup. - Page 15 DEVIreg™ Touch How to turn the forecast feature on and off. Touch the thermostat display activate it, then press menu. Press SETTINGS in the bottom right corner of the menu. Then press OPTIONS. Press FORECAST. Then press ON to optimise heating start/ stop or OFF to simply let the heating start/stop at the speci- fied time.
-
Page 16: Window Open
DEVIreg™ Touch Window Open How to turn “window open detection” on or off Touch the thermostat display to activate it, then press menu. Press SETTINGS in the bottom right corner of the menu. Then press OPTIONS. Press WINDOW OPEN. Then press ON to temporarily turn off... -
Page 17: Maximum Floor Temperature
DEVIreg™ Touch Maximum Floor Temperature How to set the maximum floor temperature Touch the thermostat display to activate it, then press menu. Press SETTINGS in the bottom right corner of the menu. Then press INSTALLATION and MANUAL SETUP. Press MAX. FLOOR. Then use the <... - Page 18 DEVIreg™ Touch If you break the small plastic seal on the back of the display mod- ule, e.g. using a screwdriver, it will be possible to set the maximum floor temperature up to 45°C. Furthermore, it will be possible to use only a room sensor.
- Page 19 DEVIreg™ Touch Thermal Examples of Details Approximate resistance flooring setting for K/W] 25˚C floor temperature 0.05 8 mm HDF based > 800 kg/m 28˚C laminate 0.10 14 mm beech 650 - 800 31˚C parquet kg/m 0.13 22 mm solid oak >...
-
Page 20: Symbols
DEVIreg™ Touch Symbols The following symbols may appear in the upper left corner of the temperature display: Symbol What it means The thermostat is in manual mode, i.e. the timer function is off. The timer lets you automatically switch between economy and comfort tempera- tures according to a predefined schedule. -
Page 21: Warranty
DEVIreg™ Touch Warranty Disposal Instruction Installation Guide... - Page 22 DEVIreg™ Touch Installation Guide...
- Page 23 DEVI • devi.com • +45 7488 8500 • E-Mail: EH@danfoss.com Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
