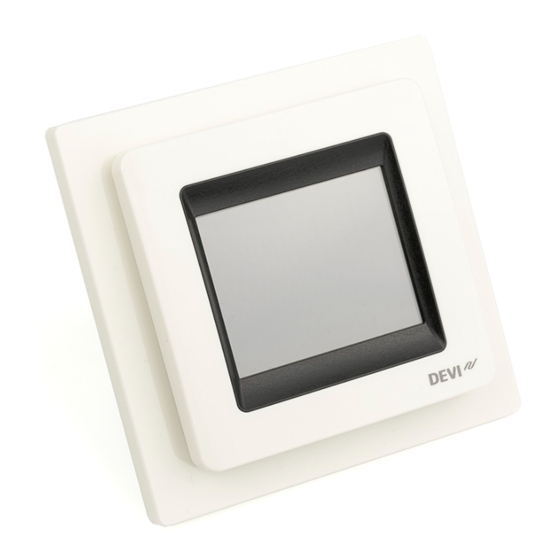

- Page 1 Installation Guide DEVIreg™ Touch Electronic Intelligent Timer Thermostat www.DEVI.com...
- Page 2 DEVIreg™ Touch Installation Guide...
-
Page 3: Table Of Contents
DEVIreg™ Touch Table of Contents Introduction ..... . . 3 1.1 Technical Speci cations ....4 1.2 Safety Instructions . -
Page 4: Technical Speci Cations
DEVIreg™ Touch • An installation wizard with room/ oor type-speci c setup. • Support for multiple frame systems. • Compatible with several 3rd party NTC sensors. • Thermostat settings can be speci ed before installa- tion and imported to the thermostat using a web-gen- erated code, or copied from a thermostat in a similar installation. - Page 5 DEVIreg™ Touch Sensing units NTC 6.8 kOhm at 25°C NTC 10 kOhm at 25°C NTC 12 kOhm at 25°C NTC 15 kOhm at 25°C (Default) NTC 33 kOhm at 25°C NTC 47 kOhm at 25°C Sensing values: (Default NTC 15 K) 0°C 42 kOhm 20°C...
- Page 6 DEVIreg™ Touch Cable speci cation 1x4 mm or 2x2,5 mm max. Ball pressure test 75°C temperature Pollution degree 2 (domestic use) Controller type Software class Storage temperature -20°C to +65°C IP class Protection class Class II - Dimensions 85 x 85 x 20-24 mm (in-wall depth: 22 mm) Weight 103 g...
-
Page 7: Safety Instructions
DEVIreg™ Touch Safety Instructions Make sure the mains supply to the thermostat is turned o before installation. IMPORTANT: When the thermostat is used to control a oor heating element in connection with a wooden oor or similar material, always use a oor sensor and never set the maximum oor temperature to more than 35°C. -
Page 8: Mounting Instructions
DEVIreg™ Touch Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170cm.). The thermostat should not be placed in wet rooms. Place it in an adjacent room. Always place the thermostat according to local regulation on IP classes. - Page 9 DEVIreg™ Touch Note: A oor sensor enables a more accurate temperature control and is recommended in all oor heating applications and mandatory under wooden oors to reduce the risk of over-heating the oor. • Place the oor sensor in a conduit in an appropriate place where it is not exposed to sunlight or draft from door openings.
- Page 10 DEVIreg™ Touch Follow the steps below to mount the thermostat: Open the thermostat: Important: Do NOT press on the display screen when removing the front part. Press your ngers under the side of the front part and pull toward you: Connect the thermostat according to the connection diagram.
- Page 11 DEVIreg™ Touch Mount and reassemble the thermostat. • Fasten the thermostat to a socket or an exterior wall box by driving the screws through the holes in each side of the thermostat. • Put the frame on. • Click the display module back in place. Important: Do NOT press on the display screen when clicking the display module back in place.
-
Page 12: Settings
DEVIreg™ Touch Settings Initial Settings Initial settings must be speci ed when the unit is activated for the rst time: Use the arrows in the right side of the screen to go to your language, and press to select it. Then press in the upper right corner to con rm. - Page 13 DEVIreg™ Touch Press the day, month and year respectively and set the date using the < and > arrows and pressing con rm. When the date is correct, press , to con rm on the SET DATE screen. If you have already made the installation setup online, press ENTER CODE and go directly to Step 13 now.
- Page 14 DEVIreg™ Touch Note: A “room only” option may also be available. For details, see the “Maximum Floor Temperature” section. Use the < and > arrows to select the installed oor sensor type. (Measured resistance and correspond- ing temperature are shown in brackets).
-
Page 15: Forecast
DEVIreg™ Touch 11. Use the < and > arrows to select the approximate load of the heating element. If an external relay is used or the installed output is unknown, select the «– –» option. Press to con rm. 12. Use the < and > arrows to select whether the timer should be activated or not. - Page 16 DEVIreg™ Touch is turned on, heating will start so that the requested tem- perature is reached at the speci ed time. For example, if your comfort temperature is set to 22°C and the comfort period starts at 6.00 o’clock am, heating will start before 6 o’clock so that your room temperature will be 22°C at 6 o’clock.
-
Page 17: Window Open
DEVIreg™ Touch Press FORECAST. Then press ON to optimise heating start/stop or OFF to simply let the heating start/stop at the speci ed time. Press to con rm. To return to the normal temperature display, press the back arrow in the upper left corner of the screen until you get to the main menu, then press Window Open How to turn “window open detection”... -
Page 18: Maximum Floor Temperature
DEVIreg™ Touch Press WINDOW OPEN. Then press ON to temporarily turn o heating in case of a sudden temperature drop in the room or OFF to let the thermostat heat during sudden temperature drops in the room. Press con rm. To return to the normal temperature display, press the back arrow in the upper left corner of the screen until you get to the main menu, then press... - Page 19 DEVIreg™ Touch Press SETTINGS in the bot- tom right corner of the menu. Then press INSTALLATION and MANUAL SETUP. Press MAX. FLOOR. Then use the < and > arrows to set the allowed maximum oor temperature. Press con rm. To return to the normal temperature display, press the back arrow in the upper left corner of the screen until you get to the main menu, then press If you break the small plastic...
- Page 20 DEVIreg™ Touch IMPORTANT: When the thermostat is used to control a oor heating element in connection with a wooden oor or similar material, always use a oor sensor and never set the maximum oor temperature to more than 35°C. Note: Please contact the oor supplier before changing the maximum oor temperature and be aware of the following: •...
- Page 21 DEVIreg™ Touch Thermal Examples of Details Approximate resist- ooring setting for ance 25 °C [m K/W] oor tem- perature 0.05 8 mm HDF based > 800 kg/m 28 °C laminate 0.10 14 mm beech 650 - 31 °C parquet 800 kg/m 0.13 22 mm solid oak >...
-
Page 22: Symbols
DEVIreg™ Touch Symbols The following symbols may appear in the upper left corner of the temperature display: Symbol What it means The thermostat is in manual mode, i.e. the timer function is o . The timer lets you automatically switch between economy and comfort temperatures according to a prede ned schedule. - Page 23 DEVIreg™ Touch Installation Guide...
-
Page 24: Warranty
The DEVIwarranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and e ective response to all com- plaints and inquiries from our customers. - Page 25 DEVIreg™ Touch Installation Guide...
-
Page 26: Disposal Instruction
DEVIreg™ Touch Disposal Instruction Installation Guide... - Page 27 DEVIreg™ Touch Installation Guide...
- Page 28 DEVIreg™ Touch Installation Guide...
- Page 29 DEVIreg™ Touch Installation Guide...
- Page 30 DEVIreg™ Touch Installation Guide...
- Page 31 DEVIreg™ Touch Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08090870 & AN419537063630en-010104 Produced by Danfoss © 01/2024...
